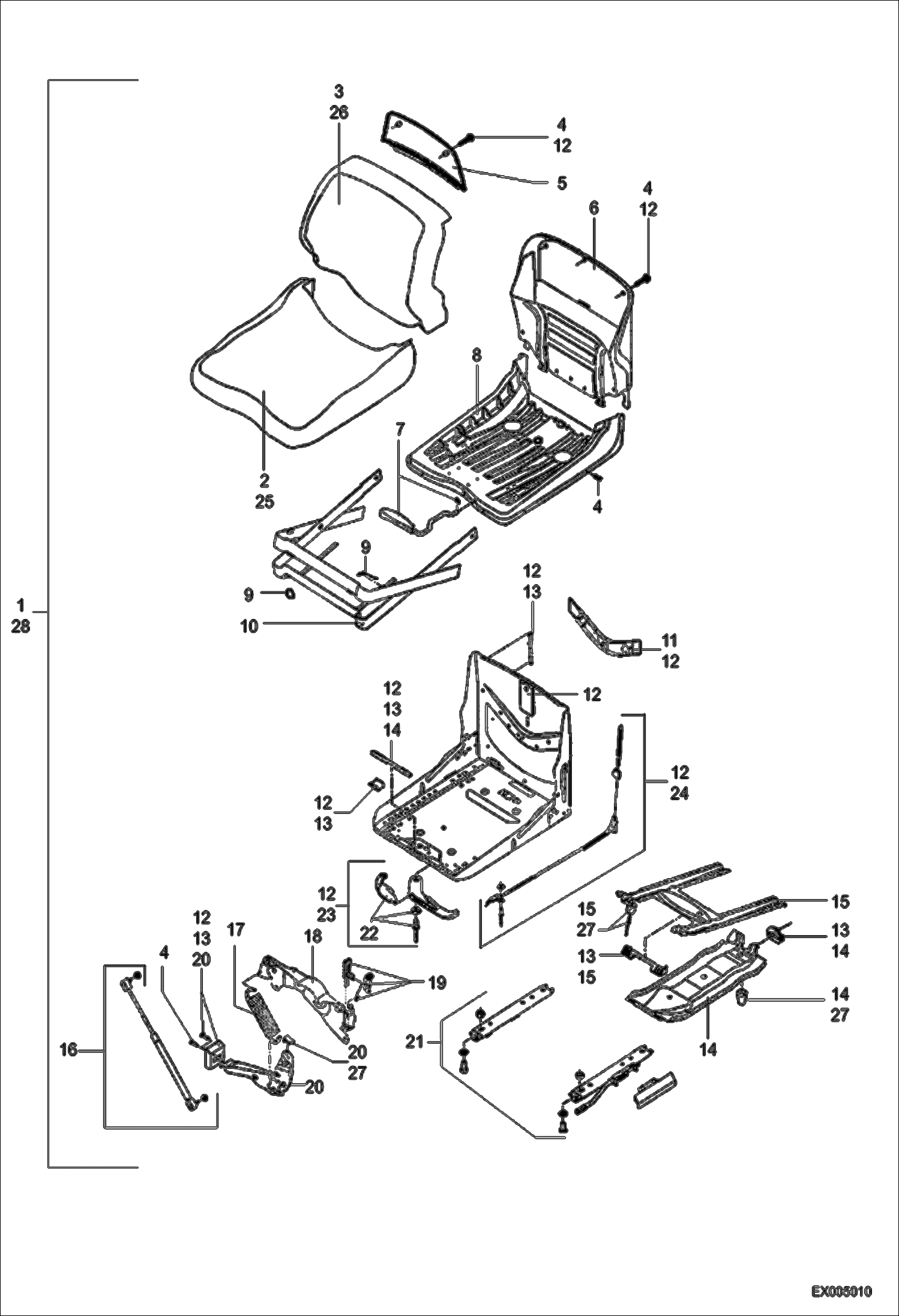

Запчасти Bobcat 444 OPERATOR SEAT MSG 20 CONTROLS

1

5305661700

OPERATORS SEAT MSG 20 - W/Ref. 2-24

2

5305670022

PAD W/Ref. 4

3

5305670023

PAD W/Ref. 5

4

5305661608

SET, MOUNTING PART

5

5305661618

COVER W/Ref. 4

6

5305661611

PLATE W/Ref. 4

7

5305039166

CONTROL LEVER

8

5305661612

SEAT BRACKET W/Ref. 4, 7 & 10

9

5305039168

REPAIR KIT for cover

10

5305039169

COVER W/Ref. 9

11

5305661613

COVER

12

5305661614

SEAT CONSOLE

13

5305661594

SEAL KIT

14

5305039174

SPRING SUSPENTION

15

5305039175

SPRING SUSPENTION

16

5305661595

GAS FILLED DAMPER

17

5305039176

TENSION SPRING

18

5305039177

LEVER weight adjustment

19

5305661615

PART

20

5305039180

LEVER

21

5305661691

SLIDING RAIL SET

22

5305661616

CONTROL LEVER

23

5305661617

CABLE PULL W/Ref. 22

24

5305661619

WEIGHT INDICATOR

25

5305670020

CUSHION SEAT Artificial leather - W/Ref. 4

26

5305670021

CUSHION BACK Artificial leather - W/Ref. 5

27

5305039173

PLUG KIT

28

5305661690

DRIVERS SEAT CPL MSG 20 - W/Ref. 4-27
