Запчасти Bobcat 444 BOOM, DIPPER ARM - MONO WORK EQUIPMENT

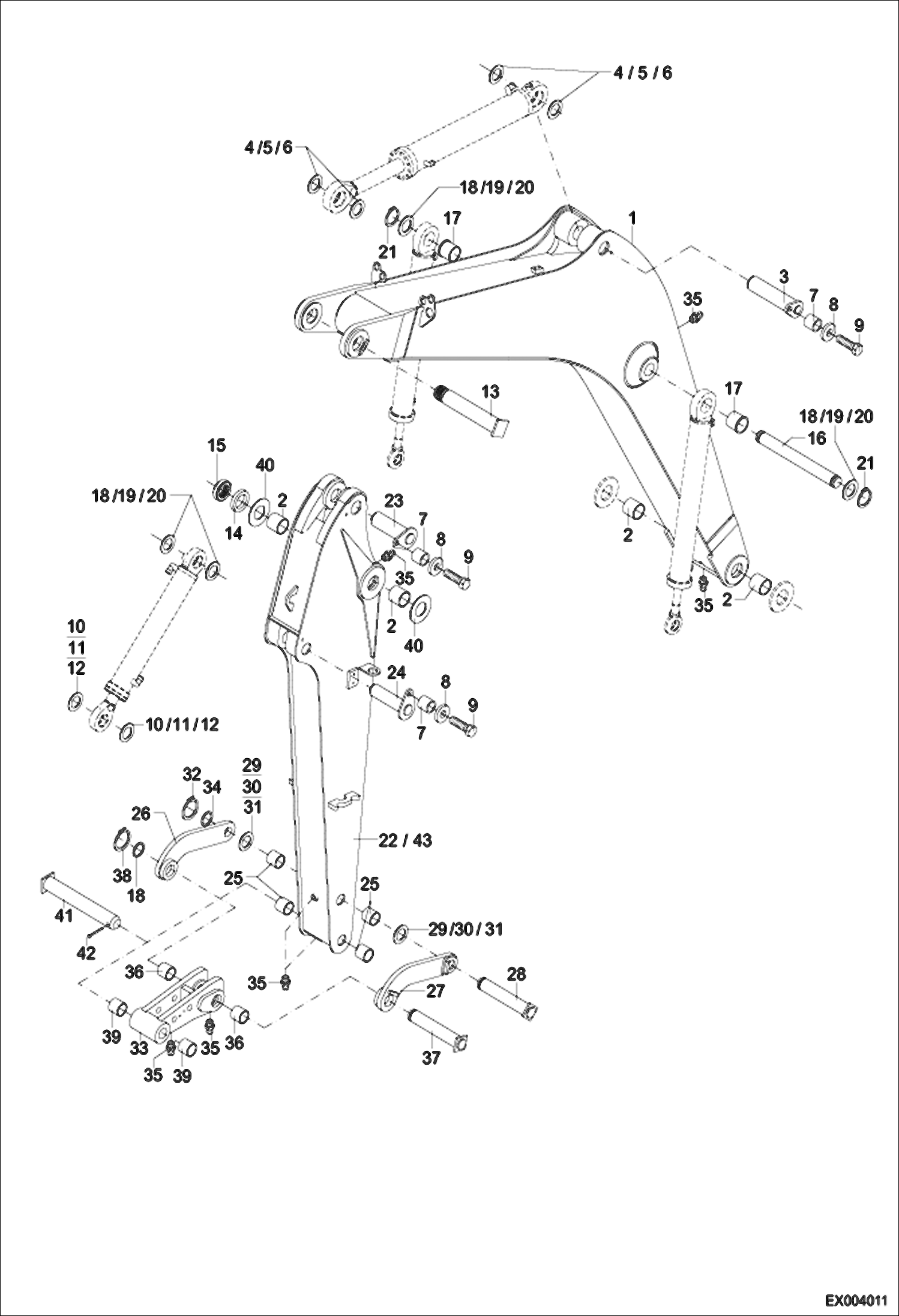

Схема запчастей Bobcat 444 - BOOM, DIPPER ARM - MONO WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

0207605602

BOOM

2

5809625676

BUSHING

3

6207605020

PIN

4

1309412213

SHIM

5

1309412726

SHIM

6

1309412939

SHIM

7

0156029033

SPACER

8

1343707061

WASHER

9

1008707829

BOLT

10

0176124545

WASHER

11

0223002245

WASHER

12

0157624143

SHIM

13

0209628060

PIN

14

0209627045

RING

15

1212707449

SLOTTED ROUND NUT

16

6207605550

PIN

17

5809625694

BUSHING

18

1309412834

SHIM

19

1309412825

SHIM

20

1309412013

SHIM

21

1455622556

CIRCLIP

22

0207606502

ARM, DIPPER

23

0331002025

PIN

24

6209629090

PIN

25

5809625553

BUSHING, PRESS FIT

26

0209629060

LEVER Was 6209629060 - A

27

0209629065

LEVER Was 6209629065 - A

28

0153131066

PIN

29

0194019227

WASHER

30

0194019025

WASHER

31

0194002226

WASHER

32

1455622750

SNAP RING

33

6209629050

GUIDE LINK

34

1309412425

SHIM

35

1607003010

GREASE NIPPLE

36

5809625667

BUSHING

37

0177321015

PIN

38

1455622356

WASHER

39

5809625675

BUSHING

40

0202524054

SHIM

41

0153131043

PIN

42

1395707642

COTTER PIN

43

0207607002

ARM, DIPPER 2350MM

Выбрано товаров: 43
