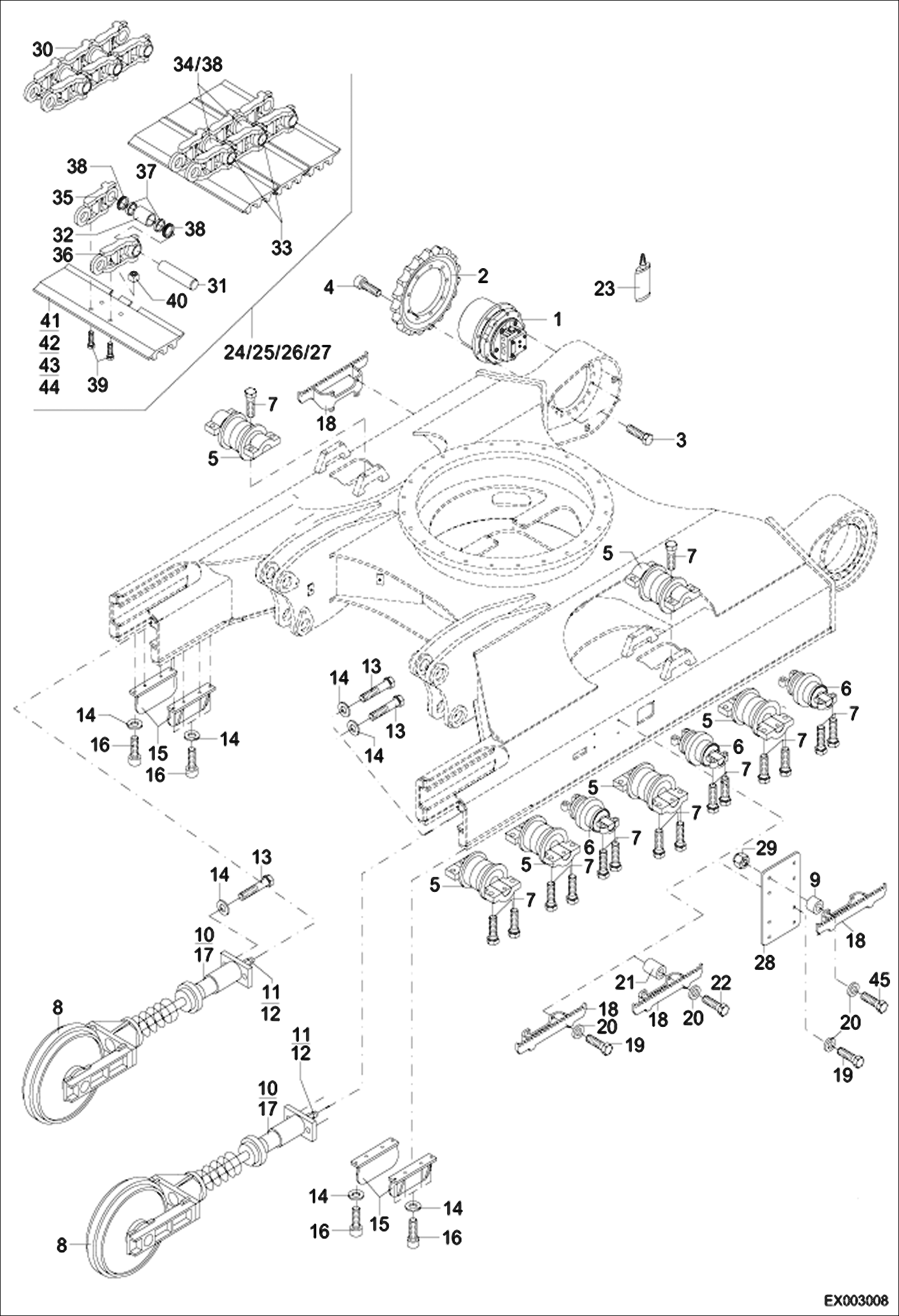

Запчасти Bobcat 444 TRACK VERSION AND STEEL TRACKS UNDERCARRIAGE

1

5459660215

TRAVEL DRIVE

2

5671658504

SPROCKET

3

1008907241

BOLT

4

1045907441

BOLT

5

5671658502

ROLLER

6

5671658535

ROLLER

7

1007707641

BOLT

8

5671658498

IDLER W/Ref. 10

9

0209124023

DISTANCE SLEEVE

10

5671658506

TRACK TENSION W/Ref. 17

11

5382211542

NIPPLE

12

1955005118

SEAL RING

13

1008707430

BOLT

14

1290707022

WASHER

15

6190002060

IDLER COVER

16

1045707829

BOLT

17

5671658512

SEAL KIT

18

6207502016

ASCENT

19

1008707923

BOLT

20

1290707020

WASHER

21

0207801020

SPACER

22

1007707026

BOLT

23

MCS001035A

GLUE

24

5382660376

STEEL TRACK 500mm - W/Ref. 30 & 39-41

25

5671658549

STEEL TRACK 400mm - W/Ref. 30, 39-40 & 42

26

5671658547

STEEL TRACK 700mm - W/Ref. 30, 39-40 & 43

27

5671658541

STEEL TRACK 800mm - W/Ref. 30, 39-40 & 44

28

0207803015

BRACKET

29

1212251013

NUT

30

5671660284

STEEL TRACK W/Ref. 31-38

31

5671660273

MASTER PIN

32

5671660274

TRACK BUSHING

33

5671660275

PIN

34

5671660276

TRACK BUSHING

35

5671660277

TRACK LINK LEFT

36

5671660278

TRACK LINK RIGHT

37

5671660271

SPACER RING

38

5671660272

SEAL

39

5671660282

BOLT

40

5671660283

NUT

41

5671660281

GROUSER 500mm

42

5671660299

GROUSER 400mm

43

5671660300

GROUSER 700mm

44

5671660301

GROUSER 800mm

45

1007707025

BOLT
