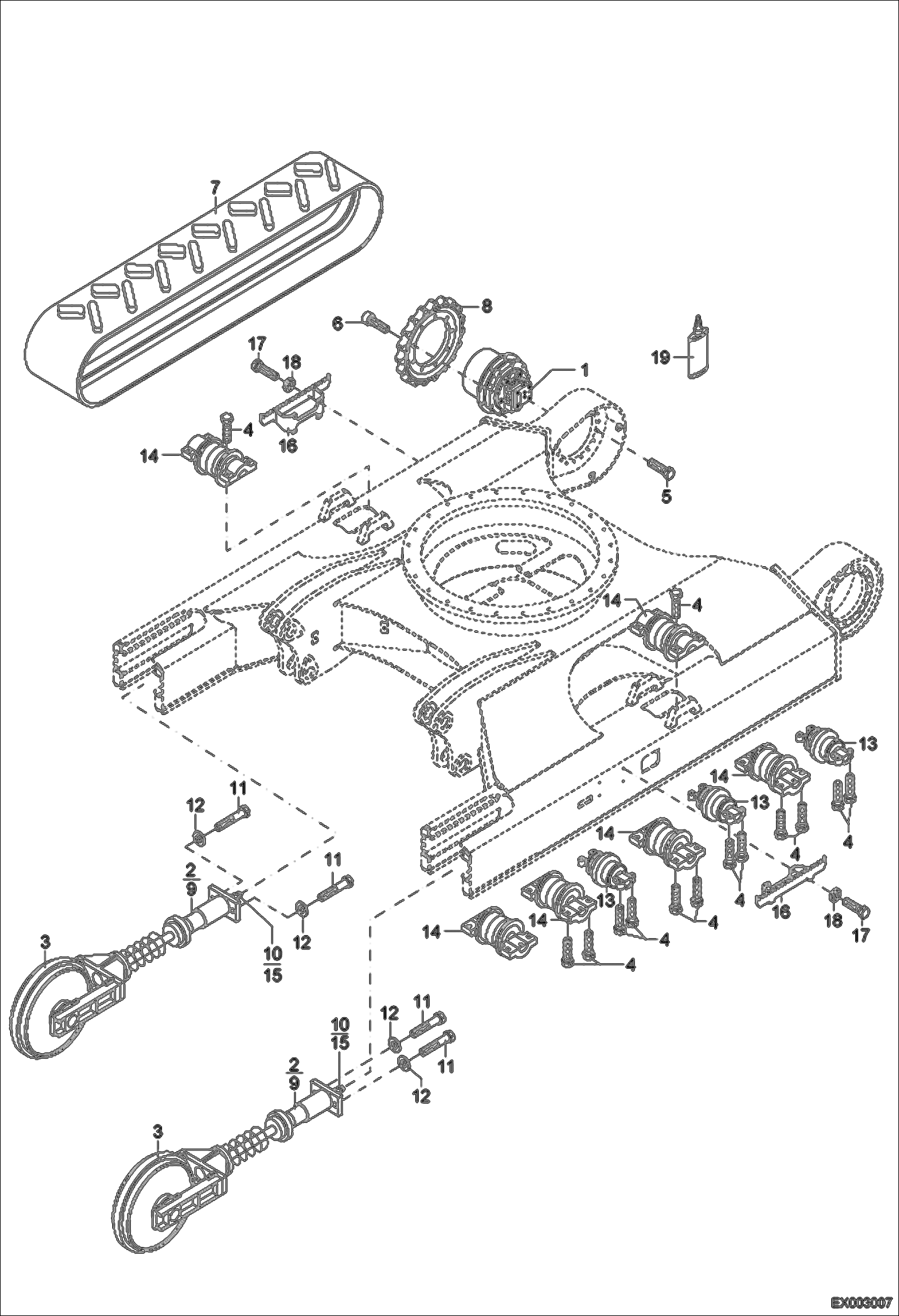

Запчасти Bobcat 444 TRACK VERSION AND RUBBER TRACK UNDERCARRIAGE

1

5459660215

TRAVEL DRIVE

2

5671658512

SEAL KIT

3

5671658498

IDLER W/Ref. 9

4

1007707641

BOLT

5

1008907241

BOLT

6

1045907441

BOLT

7

5722010019

RUBBER TRACK

8

5671658504

SPROCKET

9

5671658506

TRACK TENSION W/Ref. 2

10

5382211542

NIPPLE

11

1008707430

BOLT

12

1290707022

WASHER

13

5671658535

ROLLER

14

5671658502

ROLLER

15

6207502015

POINTER

15

1955005118

SEAL RING

16

6207502016

ASCENT

17

1008707923

BOLT

18

1290707020

WASHER

19

MCS001035A

GLUE
