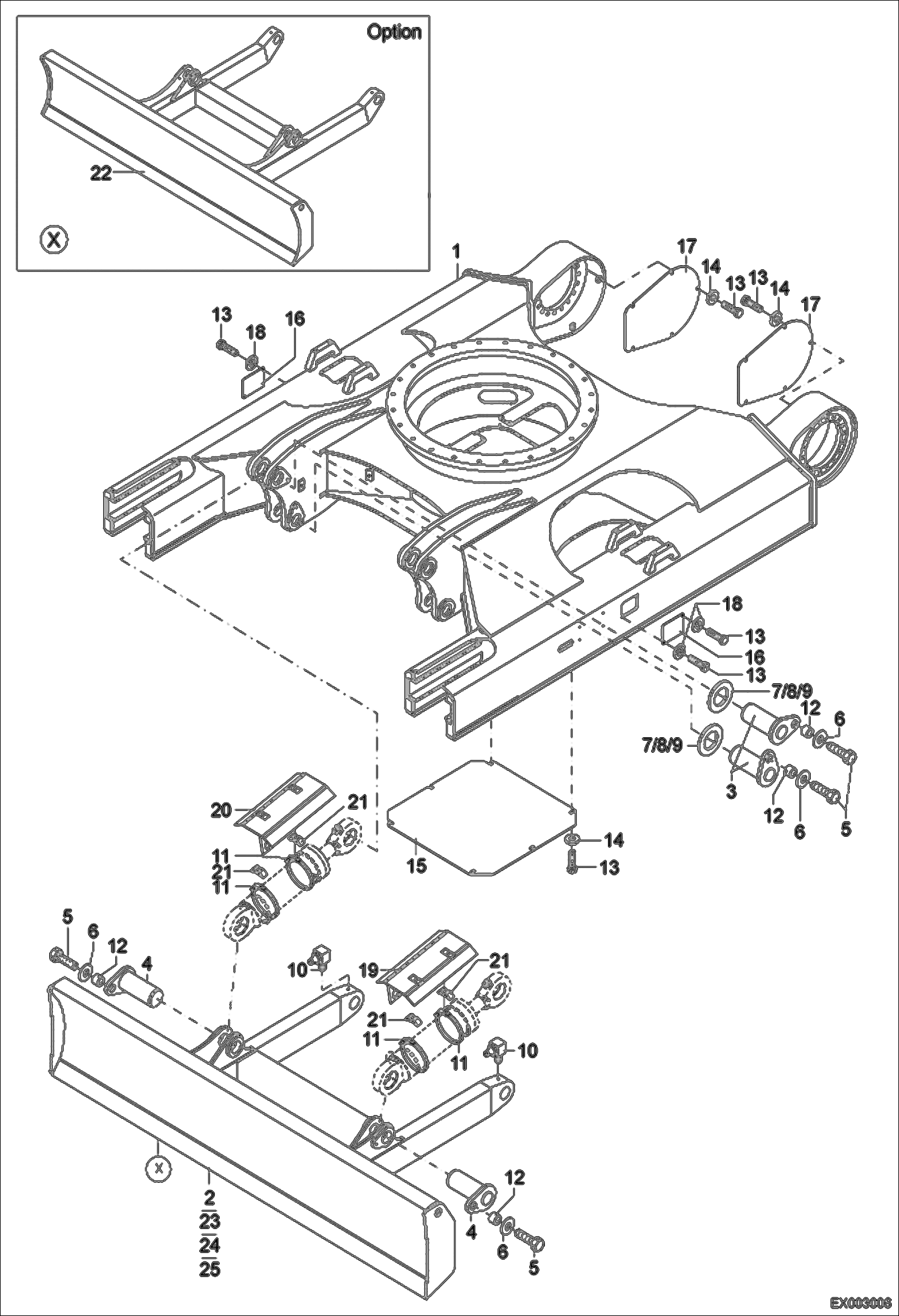

Запчасти Bobcat 444 UNDERCARRIAGE, SUPPORT BLADE AND COVER UNDERCARRIAGE

1

6207501005

UNDER CARRIAGE

2

6207502030

SUPPORT BLADE 2500mm

3

0207502050

PIN Was 6207502050 - A

4

0176105030

PIN Was 6176105030 - D

5

1008707829

BOLT

6

1343707061

WASHER

7

0203024054

TOOL

8

0202524050

WASHER

9

0203024057

WASHER

10

1608003010

GREASE NIPPLE

11

5660095200

HOSE CLIP

12

0156029033

SPACER

13

1008707018

BOLT

14

1343707057

WASHER

15

6190002011

COVER

16

6189602020

COVER RUNNING WHEE

17

6207502010

COVER

18

1290707018

WASHER

19

0190002055

SHIELD

20

0190002051

PROTECTION

21

0110012050

RUBBER LAYER

22

6207819002

ELONGATED SUPPORT BLADE 2500mm - option

23

6207862001

SUPPORT BLADE 2700mm - option

24

6207815030

SUPPORT, BLADE 2800MM 2800mm - option

25

6207816030

SUPPORT BLADE 2400mm - option
