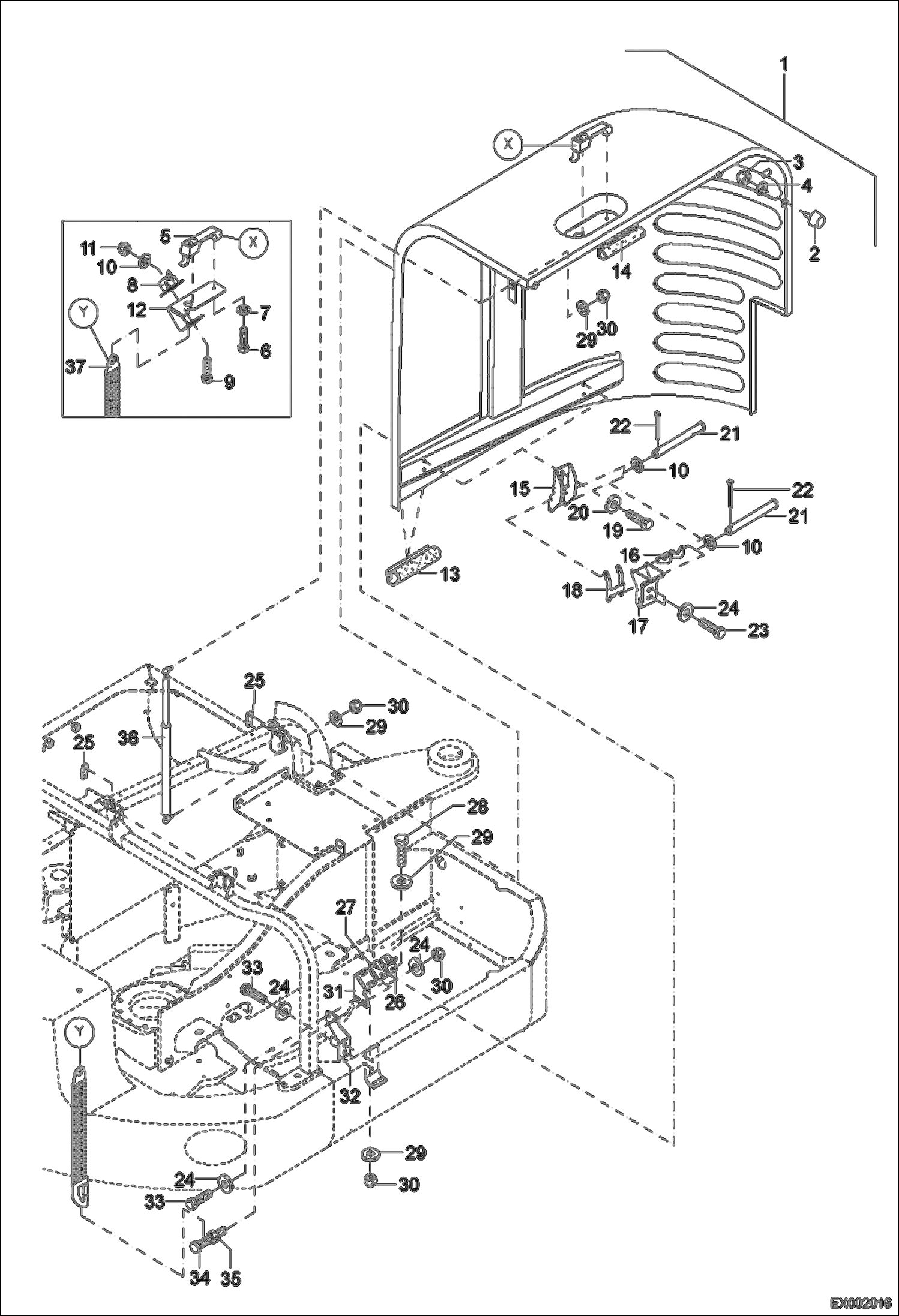

Запчасти Bobcat 444 ENGINE HOOD MAIN FRAME

1

0283428005

ENGINE HOOD W/Ref. 2-22 & 38-44 Was 5529020118 - A

2

5101290955

STOP

3

1212251009

NUT

4

1307707014

WASHER

5

5354604442

PLASTIC HANDLE

6

1008707712

BOLT

7

1290707014

WASHER

8

5354604335

HOOD LATCH

9

1008707018

BOLT

10

1290707018

WASHER

11

1212251011

NUT

12

6190028137

BRACKET

13

7025098

SEAL, BULK/MTR - A

14

7024438

SEAL - A

15

6190028023

HINGE

16

6190028024

HINGE

17

6190028022

HINGE

18

6190028025

HINGE

19

1008707318

BOLT

20

1343707057

WASHER

21

1360707139

PIN

22

1395707017

COTTER PIN

23

1008707018

BOLT

24

1343707057

WASHER

25

0190028163

MOUNT

26

5354604338

COTTER

27

6176028067

FLAP

28

1008707318

BOLT

29

1290707018

WASHER

30

1212251011

NUT

31

6190028011

ANGLE PLATE

32

6202528115

BRACKET

33

1008707618

BOLT

34

1008707319

BOLT

35

1210707011

NUT

36

5696636604

GAS PRESSURE SPRING serial number listed is the vendor serial number Was 5696636295 - A

37

5014661560

BELT
