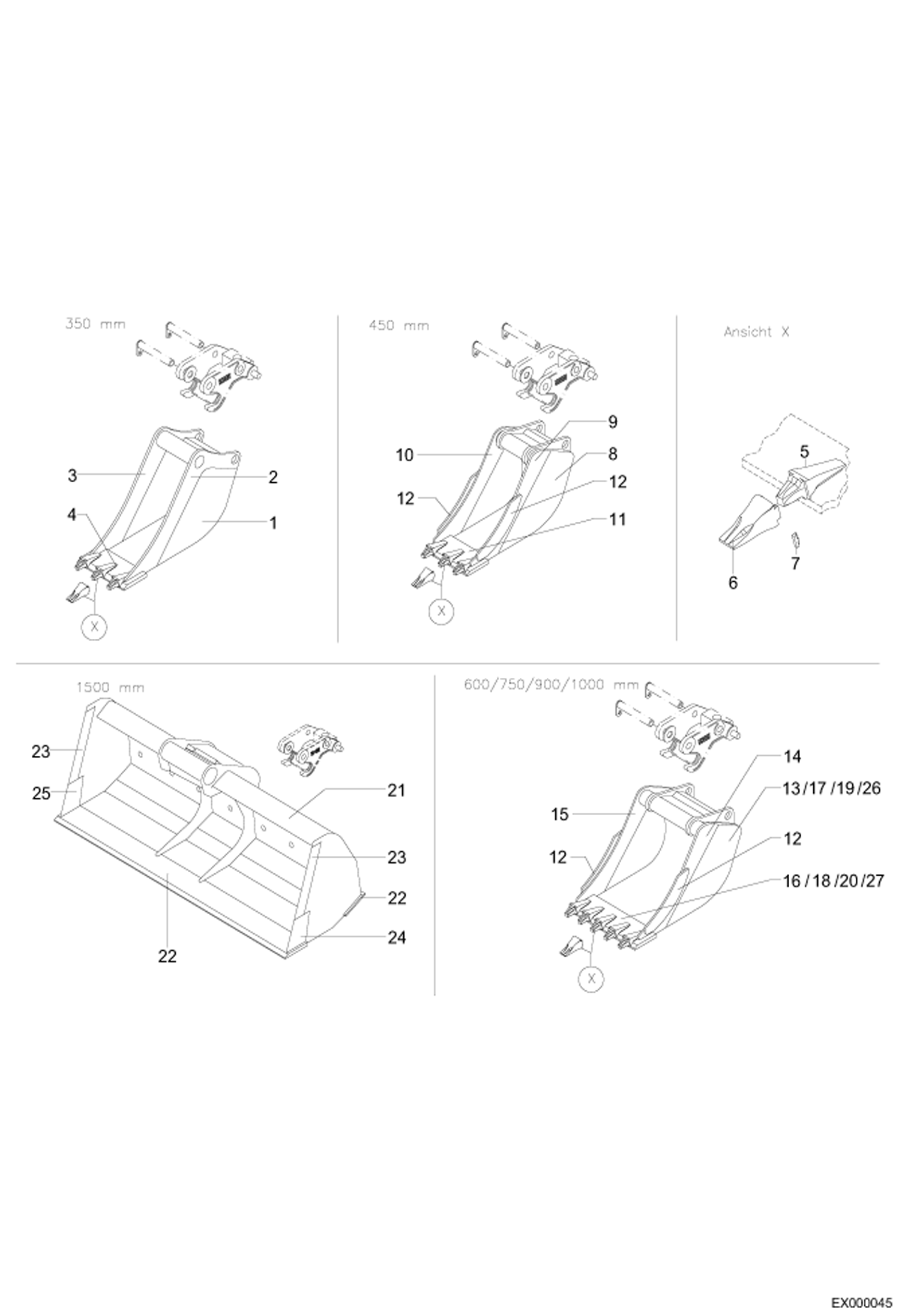

Запчасти Bobcat 444 BUCKET 350,450,600,750,900,1000,1500 MM Навесное оборудование

1

6202735000

BUCKET 350mm Includes Ref. 2 to 7

2

6202735005

SIDE BLADE RIGHT

3

6202735006

SIDE BLADE LEFT

4

6202735007

BLADE 350mm

5

5455660441

TOOTH HOLDER

6

5455660440

TOOTH TIP

7

5455660442

FUSE

8

6202741000

BUCKET 450mm Includes Ref. 5 to 7 + 9 to 12

9

6202741005

SIDE BLADE RIGHT

10

6202741006

SIDE BLADE LEFT

11

6202741020

BLADE 450mm

12

0202760018

CUTTING EDGE

13

6202760000

BUCKET 600mm Includes Ref. 5 to 7 + 12 + 14 to 16

14

6202760006

SIDE BLADE RIGHT

15

6202760005

SIDE BLADE LEFT

16

6202760020

BLADE 600mm

17

6202773000

BUCKET 750mm Includes Ref. 5 to 7 + 12 + 14 + 15 + 18

18

6202773020

BLADE 750mm

19

6202790000

BUCKET 900mm Includes Ref. 5 to 7 + 12 + 14 + 15 + 20

20

6202790020

BLADE 900mm

21

6202767000

DITCH CLEANING BUCKET 1500mm Includes Ref. 22 to 25

22

6210908007

CUTTING EDGE

23

6155267008

CUTTING EDGE

24

6210908008

CUTTING EDGE

25

6210908009

CUTTING EDGE

26

6209710000

BUCKET 1000mm Includes Ref. 5 to 7 + 12 + 14 + 15 + 27

27

6209710020

BLADE 1000mm
