Запчасти Bobcat 444 RADIATOR POWER UNIT

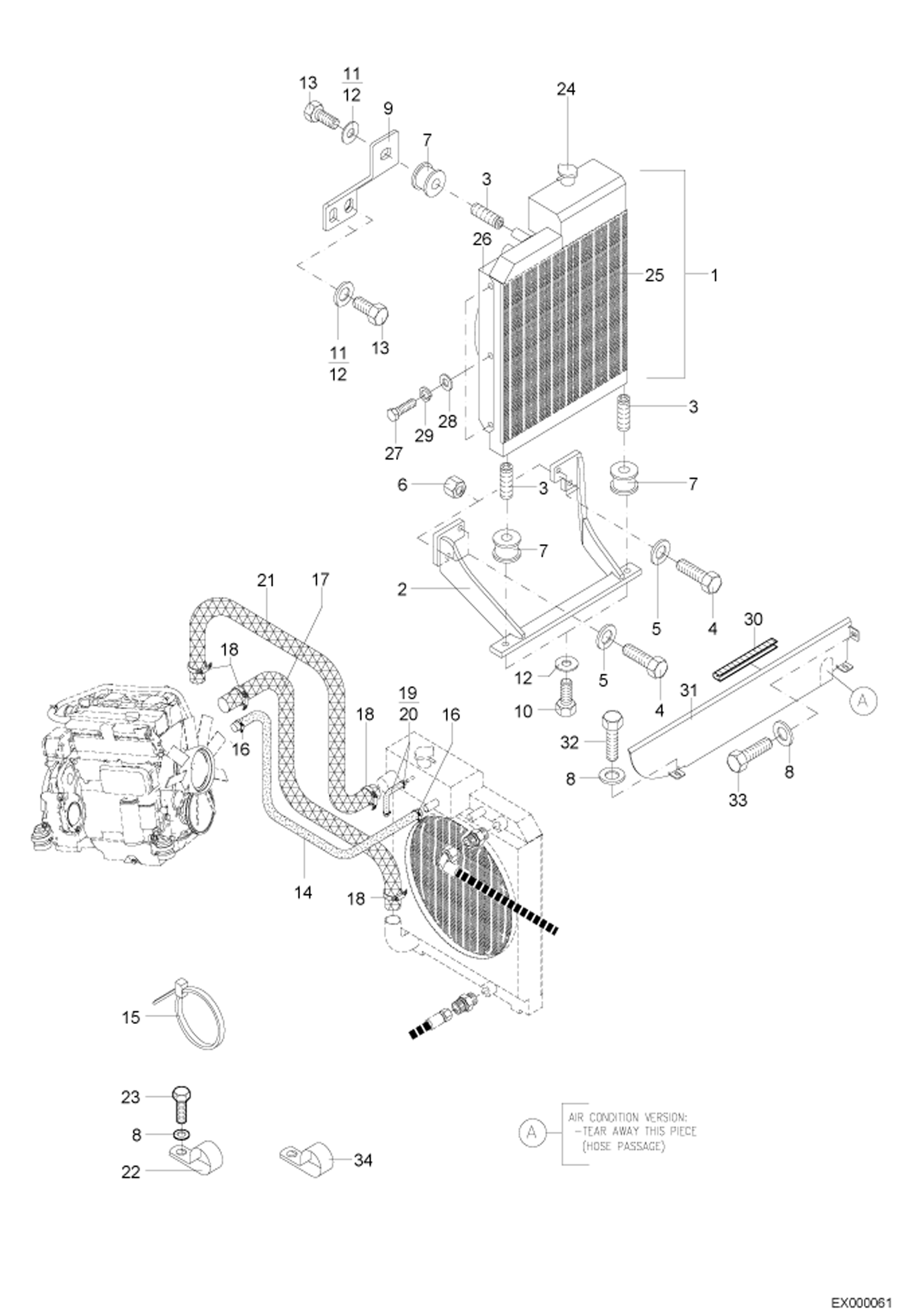

Схема запчастей Bobcat 444 - RADIATOR POWER UNIT

Артикул

Название

Примечание

Количество

1

5010661028

COMBINED COOLER. CPL. Includes Ref. 24 to 29

2

6209515010

COOLER BRACKET

3

1133341623

STUD

4

1008707630

BOLT

5

1343707061

WASHER

6

1212251014

NUT

7

BEARING NLA - Was 5101290966 - A

8

1343707057

WASHER

9

0209515020

BRACKET

10

1008707124

BOLT

11

1290707020

WASHER

12

1343707059

WASHER

13

1008707423

BOLT

14

5210657370

HOSE

15

5350650280

BINDER

16

5660199200

HOSE CLIP

17

5210657368

HOSE

18

5660095305

HOSE CLIP

19

0209515044

HOSE

20

5603320320

HOSE CLIP

21

5210657366

HOSE

22

5000210460

HOSE CLIP

23

1008707318

BOLT

24

5010657415

CAP

25

5010663052

COOLER

26

5010663053

VENTILATOR COVER

27

1008707018

BOLT

28

1307707018

WASHER

29

1321707018

SPRING WASHER

30

5354600010

RUBBER PROFILE

31

6207515015

PLATE

32

1008707018

BOLT

33

1008707517

BOLT

34

5000096800

HOSE CLAMP

Выбрано товаров: 34
