Запчасти Bobcat 444 HEATING 5322 11002 & below POWER UNIT

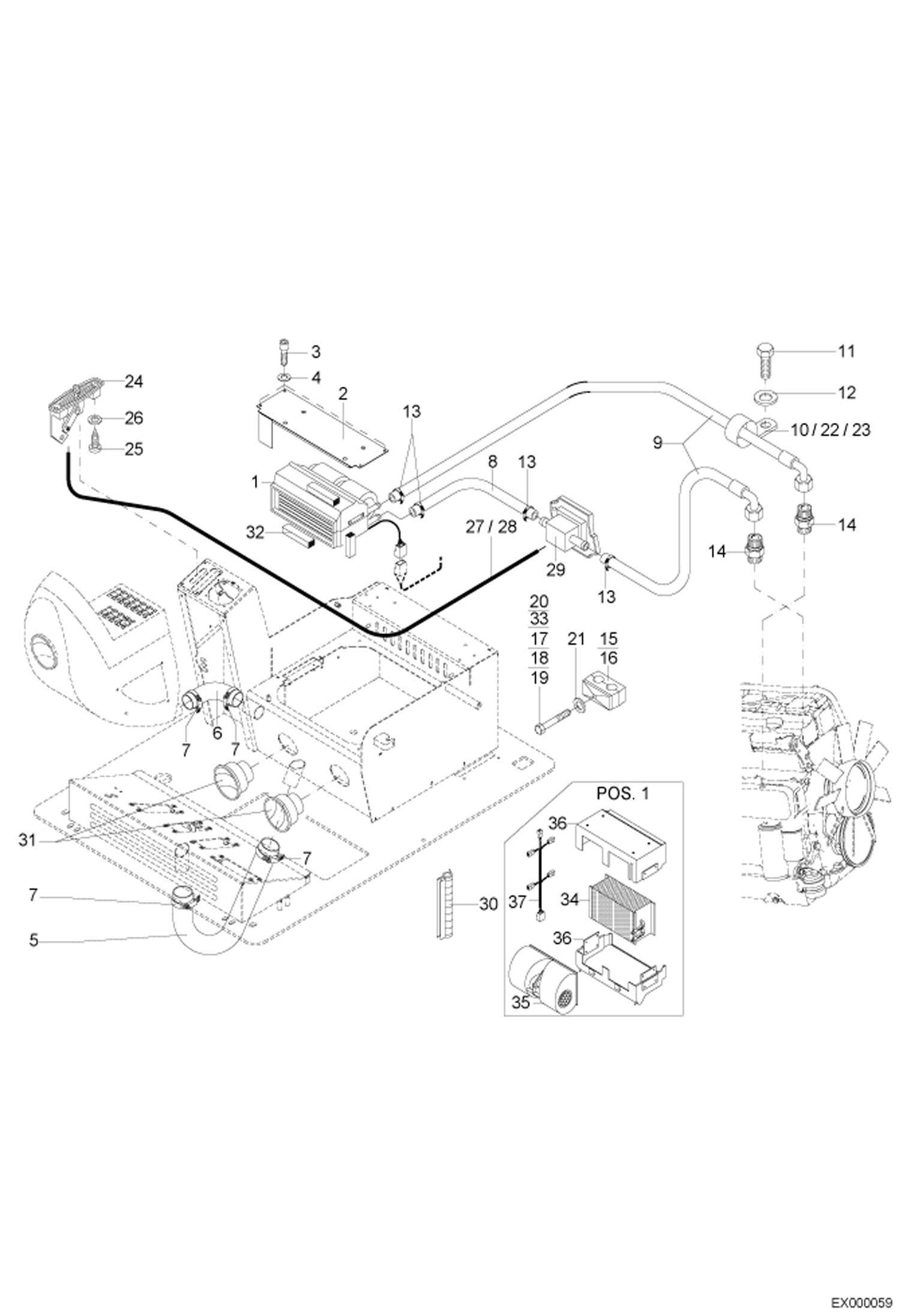

Схема запчастей Bobcat 444 - HEATING 5322 11002 & below POWER UNIT

Артикул

Название

Примечание

Количество

1

5169010005

HEATER Includes Ref. 32 + 33

2

6190018004

COVER

3

1045707213

BOLT

4

1290707014

WASHER

5

5367628905

HOSE

6

7024567

HOSE, AIR - A

7

5660095300

HOSE CLIP

8

6398018004

HOSE

9

0209018010

HOSE

10

5000210420

HOSE CLIP

11

1008707018

BOLT

12

1343707057

WASHER

13

5603320315

CLIP

14

1915060666

FITTING

15

5660199785

HOSE CLIP

16

5660200230

COVER PLATE

17

1007707319

BOLT

18

1007707619

BOLT

19

1007707719

BOLT

20

1212251011

NUT

21

1343707057

WASHER

22

5000136820

HOSE CLIP

23

5000136700

HOSE CLIP

24

5388662385

REGULATOR

25

1090707742

SCREW

26

1307707012

WASHER

27

5388662389

BOWDEN CABLE

28

1290707012

WASHER

29

5388662602

HEATER VALVE

30

5354255965

SEALING SECTION

31

5688329382

NOZZLE

32

5169010006

HEAT EXCHANGE

33

5169010007

FAN

34

5354640128

NEOPRENE STRIP

35

1007707519

BOLT
