CHANGEOVER ISO / SAE

Запчасти Bobcat 444 CHANGEOVER ISO / SAE ELECTRIC INSTALLATION

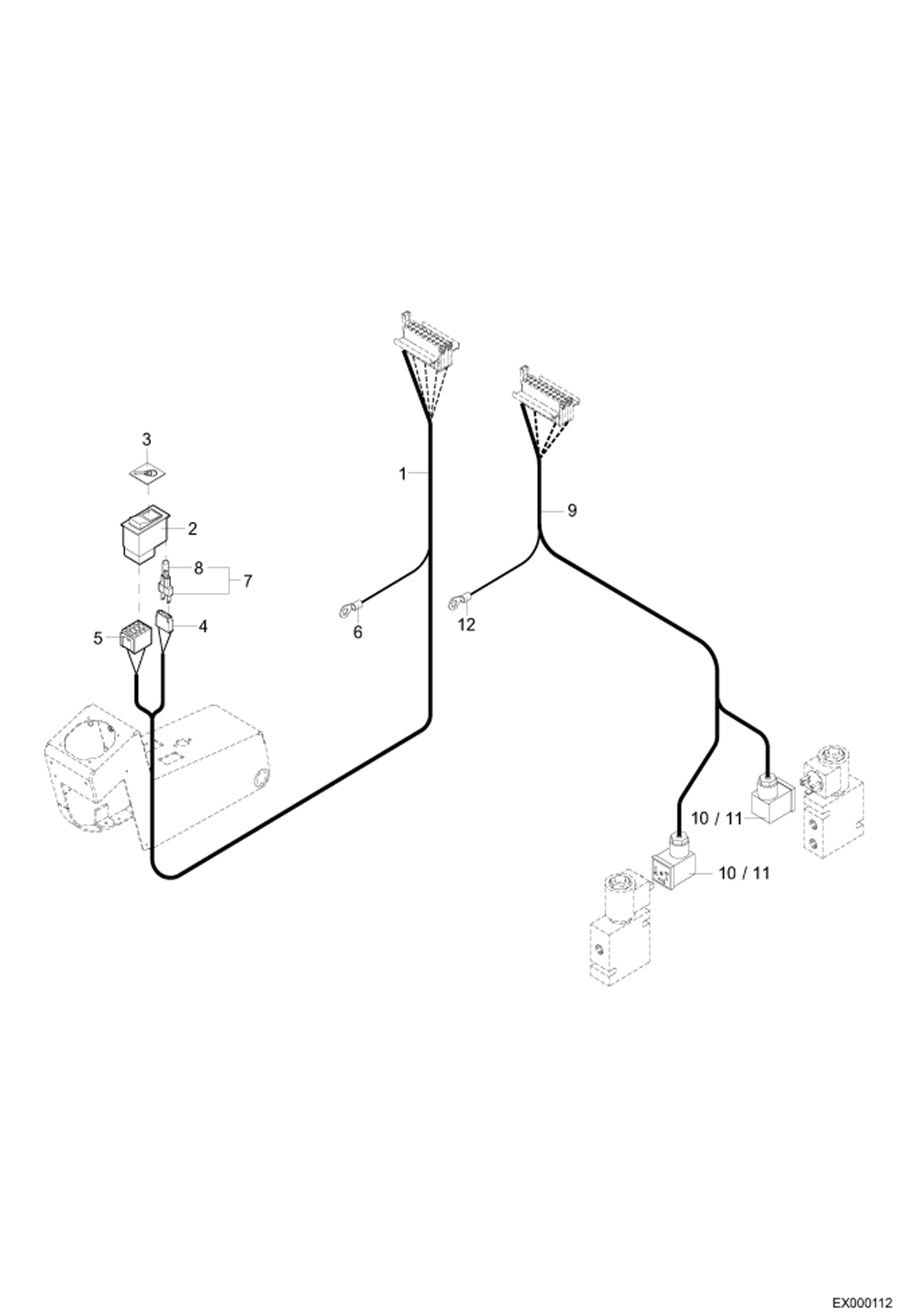

Схема запчастей Bobcat 444 - CHANGEOVER ISO / SAE ELECTRIC INSTALLATION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0190260010

WIRE HARNESS Includes Ref. 1 to 6

2

5050651362

SWITCH Includes Ref. 7

3

5358650297

SYMBOL

4

5050650231

HOUSING

5

5050650225

HOUSING

6

5350246610

CABLE CONNECTOR

7

5050650226

LAMP Includes Ref. 8

8

1813000021

ROUND BULB

9

0190260020

WIRE HARNESS Includes Ref. 10 to 12

10

5552659550

BOX

11

5552659513

SEAL

12

5350246610

CABLE CONNECTOR
