REMOTE CONTROL VALVE

Запчасти Bobcat 444 REMOTE CONTROL VALVE ELECTRIC INSTALLATION

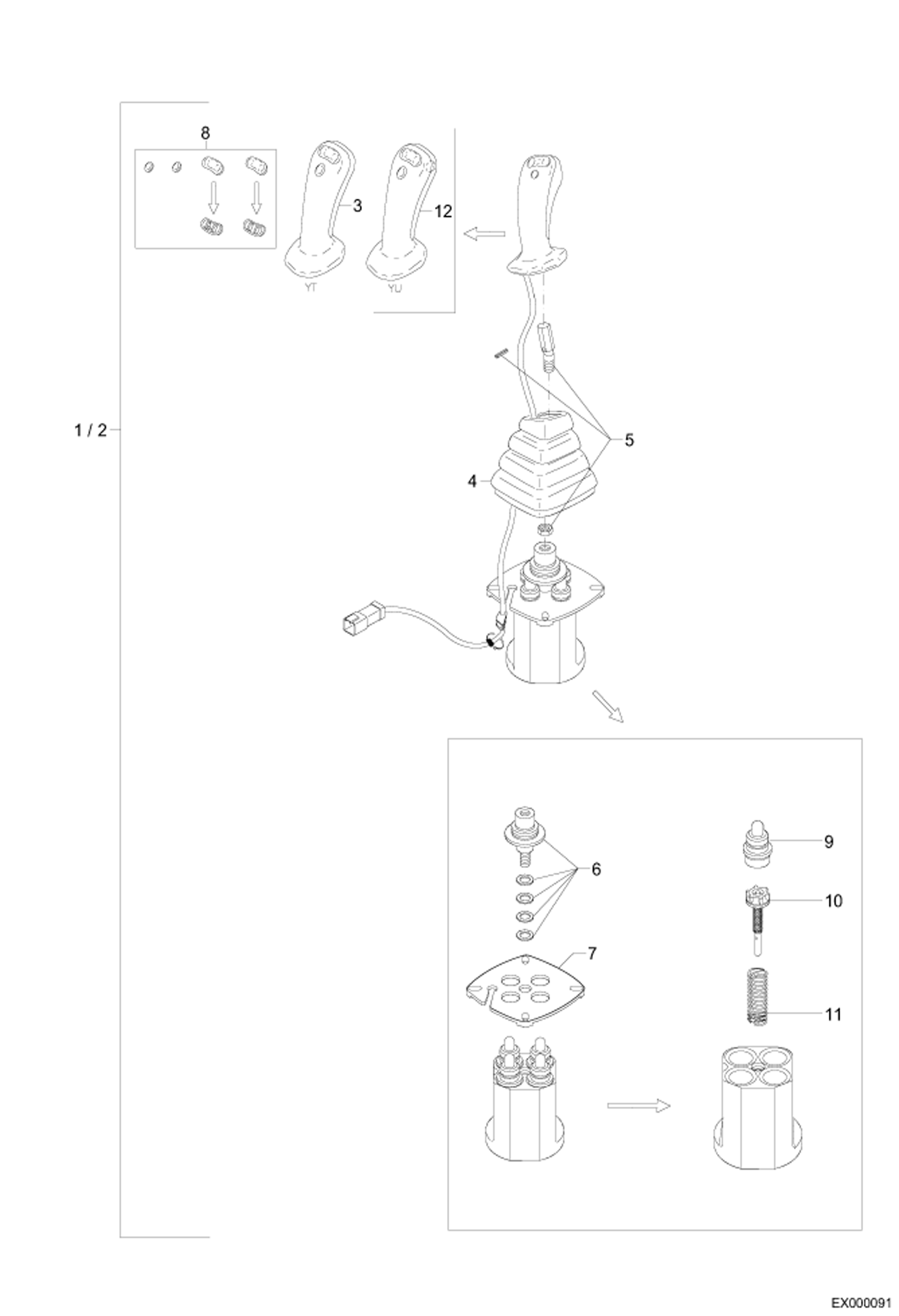

Схема запчастей Bobcat 444 - REMOTE CONTROL VALVE ELECTRIC INSTALLATION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5606658882

JOYSTICK RH Includes Ref. 3 to 11

2

5606658880

JOYSTICK LH Includes Ref. 4 to 12

3

5606664424

HANDLE JOYSTICK RH

4

5606664004

BELLOW

5

5606664110

KIT, LEVER

6

5606664005

KIT

7

5606664422

BRACKET

8

5606656918

PUSH-BUTTON SET

9

5606664006

SET OF TAPPETS

10

5606664423

REGULATING UNIT

11

5606664085

SPRING ASSY

12

5606664425

HANDLE JOYSTICK LH
