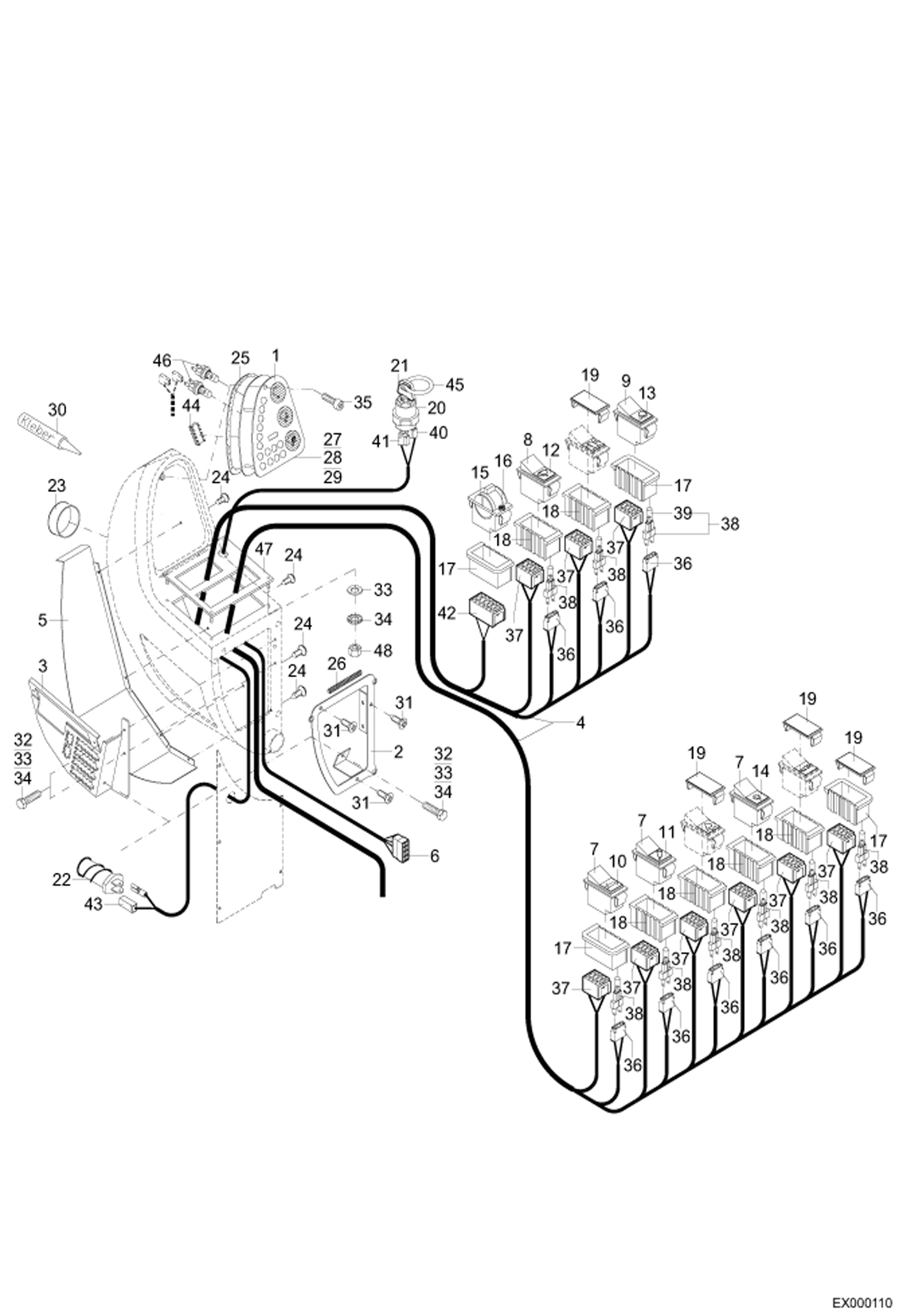

Запчасти Bobcat 444 DASH CONSOLE ELECTRIC INSTALLATION

1

MODULE, CONTROL NLA - W/E-Prom - Order 5821661076 display panel and 0190132015 decal - Was 5821661064 - A

1

7023525

PANEL, DASH W/ O E-Prom - Was 5821661076

2

5821662101

ADAPTER

3

5821662102

BRACKET

4

5821662241

CABLE SET

5

5821662104

AIR BAFFLE

6

5350249505

HOUSING

7

5821662105

SWITCH

8

5821662106

SWITCH

9

5821662107

SWITCH

10

5358650341

SYMBOL DECAL Was 5821662108 - A

11

5821662109

SYMBOL DECAL

12

5821662110

SYMBOL DECAL

13

5821662111

SYMBOL DECAL

14

5821662112

SYMBOL DECAL

15

5821662113

SWITCH

16

5821662114

SYMBOL DECAL

17

5821662088

CAP

18

5821662089

SPACER

19

5821662115

COVER

20

5821662116

STARTER SWITCH Includes Ref. 21

21

5050650256

KEY, IGN

22

5050076420

CIGARETTE LIGHTER

23

5821662130

MOZZLE

24

5821662129

SCREW

25

5821662131

SEAL

26

5821662132

SEAL

27

5821662133

CROWN GEAR

28

5821662134

WASHER

29

1210707006

NUT Was 5821662135 - A

30

5821662137

GLUE KIT

31

5821662123

SCREW

32

5821662124

SCREW

33

5821662127

CROWN GEAR

34

5821662126

WASHER

35

5821662128

SCREW

36

5050650231

HOUSING

37

5050650225

HOUSING

38

5050650226

LAMP Includes Ref. 39

39

1813000021

ROUND BULB

40

5050650261

PLUG

41

5050650262

PLUG

42

5050650287

PLUG

43

5350249536

HOUSING

44

E-PROM (SERIAL - NO.?) FZ.-ID.NR. ?

45

1557909026

RING

46

5755656003

KIT BULB & SOCKET SATZ=2X

47

BRACKET

48

NUT
