Запчасти Bobcat 444 FUSE PANEL AND RELAY PANEL ELECTRIC INSTALLATION

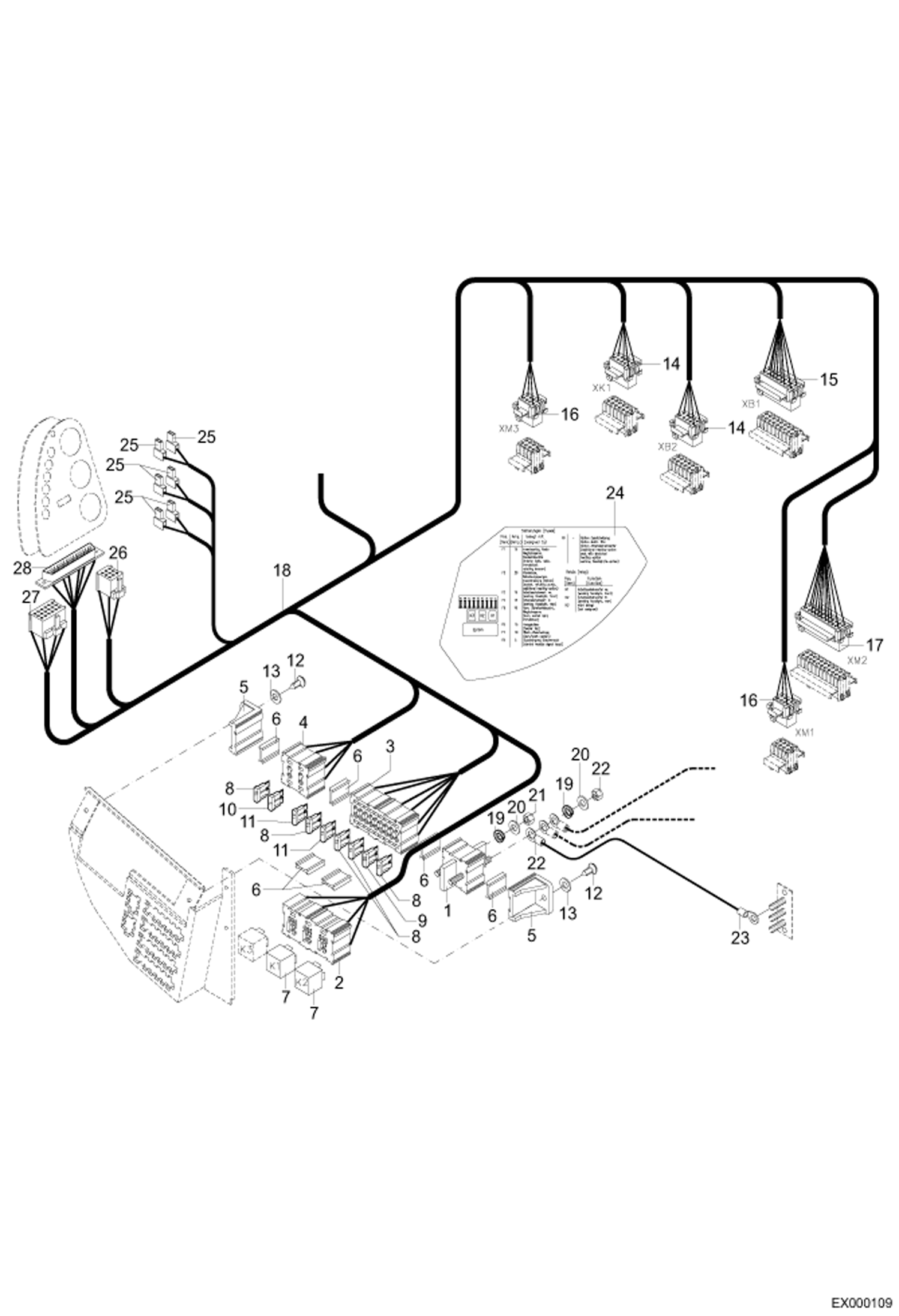

Схема запчастей Bobcat 444 - FUSE PANEL AND RELAY PANEL ELECTRIC INSTALLATION

Артикул

Название

Примечание

Количество

1

5050650466

MODULE

2

5050650467

RELAY MODULE

3

5050650473

FUSE MODULE

4

5050650469

FUSE MODULE

5

5050650468

MOUNT

6

5050650470

CONNECTOR

7

5821662118

RELAY

8

5821662119

FUSE (15 AMP)

9

5821662120

FUSE (20 AMP)

10

5821662121

FUSE (5 AMP)

11

5821662122

FUSE (10 AMP)

12

5821662125

SCREW

13

5821662126

WASHER

14

5350249692

CONNECTOR

15

5350249693

CONNECTOR

16

5350249690

CONNECTOR

17

5350249694

CONNECTOR

18

5821662241

CABLE SET

19

5821662133

CROWN GEAR

20

5821662134

WASHER

21

1210707006

NUT Was 5821662135 - A

22

5350249600

CABLE CONNECTOR

23

5350249597

CABLE CONNECTOR

24

0190027030

DECAL

25

CONNECTOR (FEM) NLA - Was 5350249776 - A

26

5350249778

CONNECTOR

27

5350249753

CONNECTOR

28

5350249780

CONNECTOR

Выбрано товаров: 28
