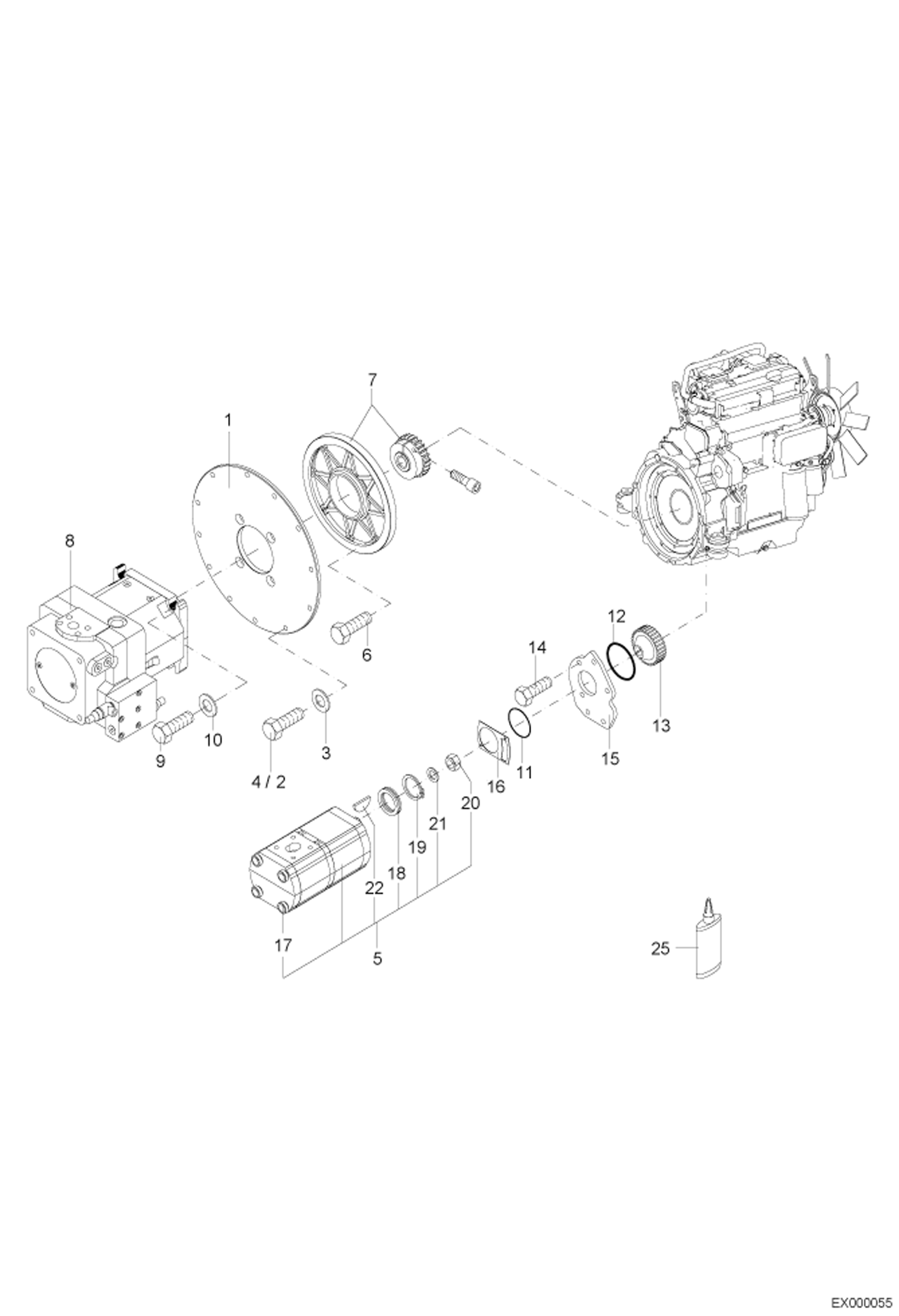

Запчасти Bobcat 444 PUMP ASSEMBLY HYDRAULIC INSTALLATION

1

6209517104

PUMP FLANGE

2

1008707623

BOLT

3

1343707059

WASHER

4

1008707124

BOLT

5

5100620019

GEAR TYPE PUMP W/Ref. 17-22

6

1008707324

BOLT

7

5067658954

CLUTCH Secure with SCHAEFFLOCK 2042

8

5364662455

VARIAB. DISPL. PUMP

9

1011907357

BOLT Secure with SCHAEFFLOCK 2042

10

0330010002

WASHER Secure with SCHAEFFLOCK 2042

11

1971956107

O-RING

12

1970956552

O-RING

13

5411663851

COUPLER Was 5411656602 - A

14

5411656601

BOLT

15

5411656600

FLANGE

16

5411656854

SEAL

17

5100659044

BOLT

18

5100659033

SHAFT SEAL

19

5100659034

CIRCLIP

20

5100659043

NUT

21

1334707022

WASHER

22

5100659045

KEY

25

MCS001035A

GLUE
