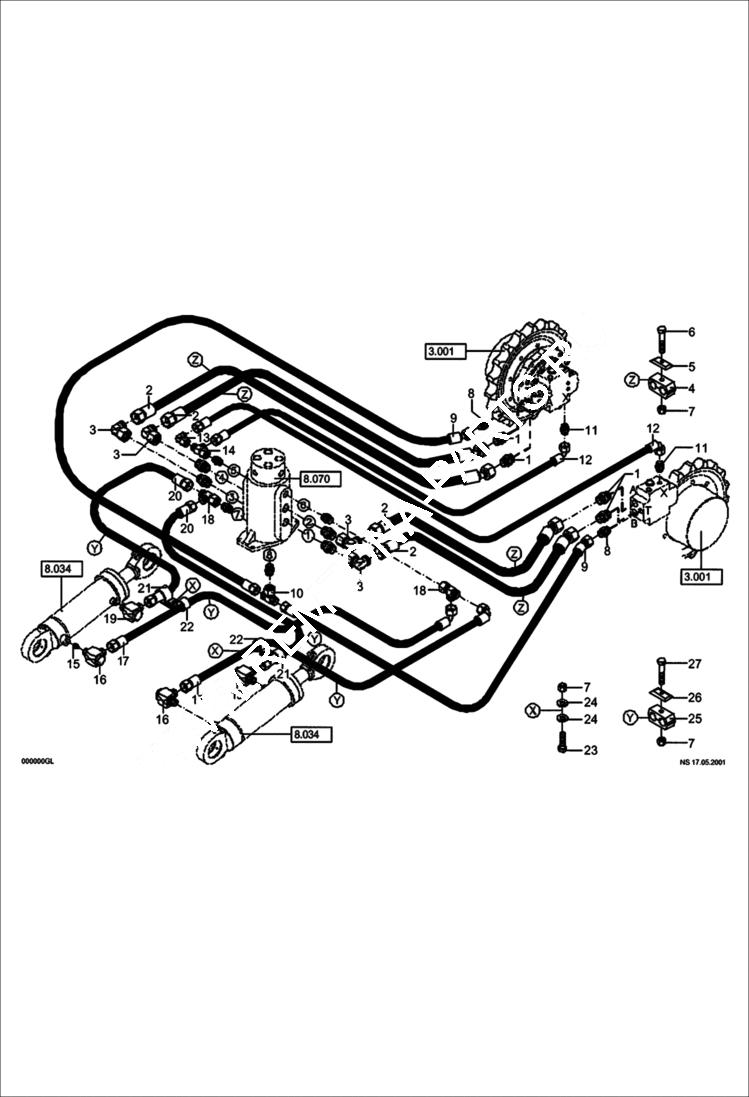

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Undercarriage HYDRAULIC SYSTEM

1

1915060798

FITTING

2

4466145501

HOSE

3

1924060166

ELBOW FITTING

4

5660199792

CLIP

5

5660200240

COVER PLATE

6

1007707719

BOLT

7

1212251011

NUT

8

1915060789

FITTING

9

4110150367

HOSE

10

1919060153

FITTING

11

1915060787

FITTING

12

4256180371

HOSE

13

1924060151

FITTING

14

1919060351

FITTING

15

5368632256

HOSE RUPTURE VALVE

16

1921060575

FITTING

17

4260175374

HOSE

18

1919060353

FITTING

19

1921060156

FITTING

20

4260144359

HOSE

21

5000136820

HOSE CLIP

22

5000136800

HOSE CLIP

23

1008707018

BOLT

24

1290707018

WASHER

25

5660199768

HOSE CLIP

26

5660200220

COVER PLATE

27

1007707519

BOLT
