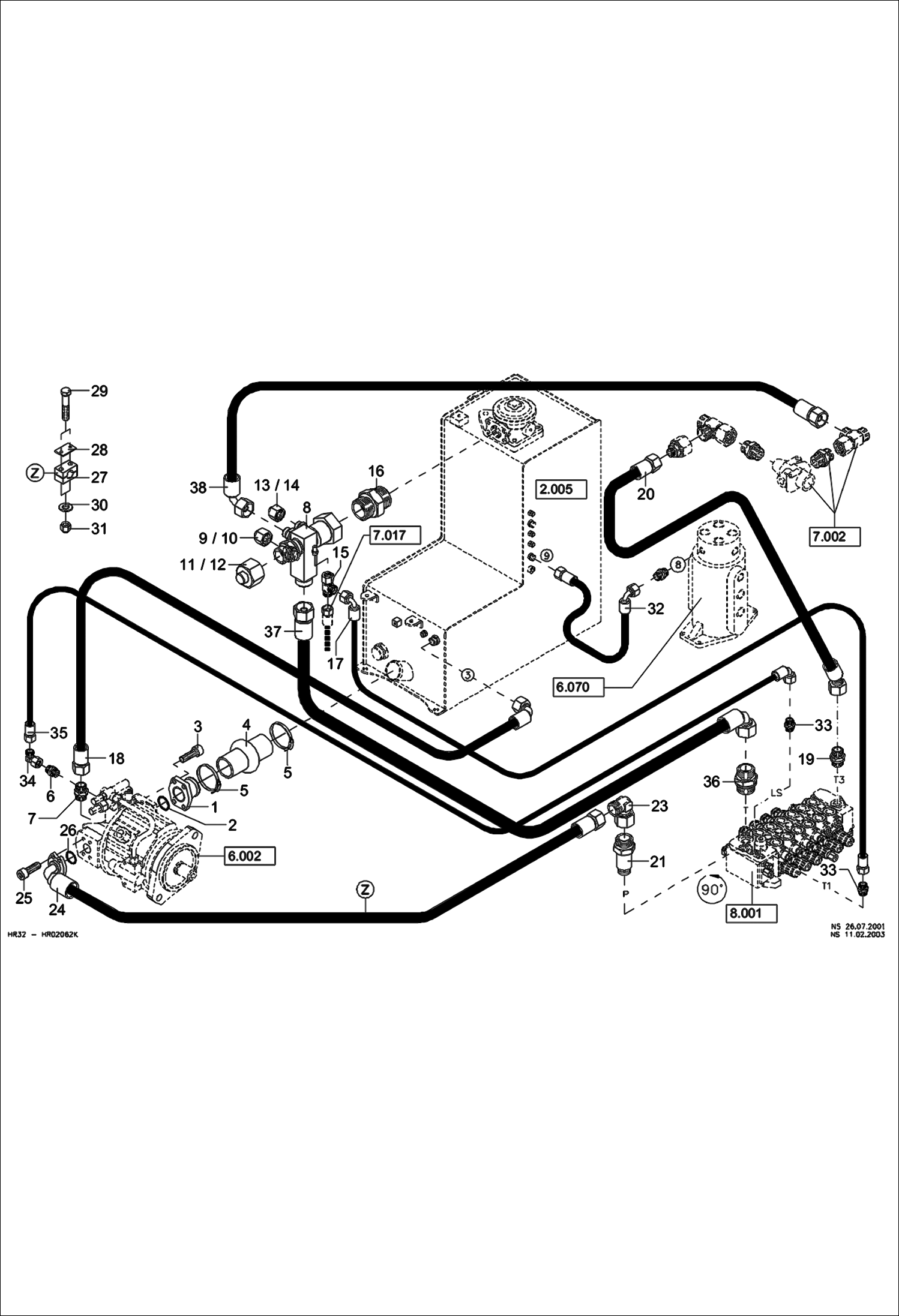

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Circulation HYDRAULIC SYSTEM

1

0190017004

SUCTION FLANGE

2

1971956332

O-RING

3

1045707590

BOLT

4

5210657358

COMPENSATOR

5

5660200105

HOSE CLIP

6

1939060101

FITTING

7

1939060609

FITTING

8

5260310204

RETURN LINE COLLEC includes check valve (not sold separately)

8

5260310203

REPAIR KIT

9

1912060359

PLUG

10

1911060159

UNION NUT

11

1912060361

PLUG

12

1911060161

UNION NUT

13

1912060358

PLUG

14

1911060158

UNION NUT

15

1919060351

FITTING

16

1915060369

FITTING

17

4506085351

HOSE

18

4116063156

HOSE

19

1915060470

FITTING

20

4118060404

HOSE

21

0254009005

FITTING

23

1924060256

ELBOW FITTING

24

4470140888

HOSE

25

1045707098

BOLT

26

1971956315

O-RING Was 1971956322 - A

27

5660199632

CLIP

28

5660200150

COVER

29

1007707814

BOLT

30

1343707055

WASHER

31

1212251009

NUT Was 1212251009 - A

32

4110080374

HOSE

33

1915060255

FITTING

34

1924060151

FITTING

35

4256131371

HOSE

36

1915060469

FITTING

37

4132066226

HOSE PIPE

38

4120129156

HOSE
