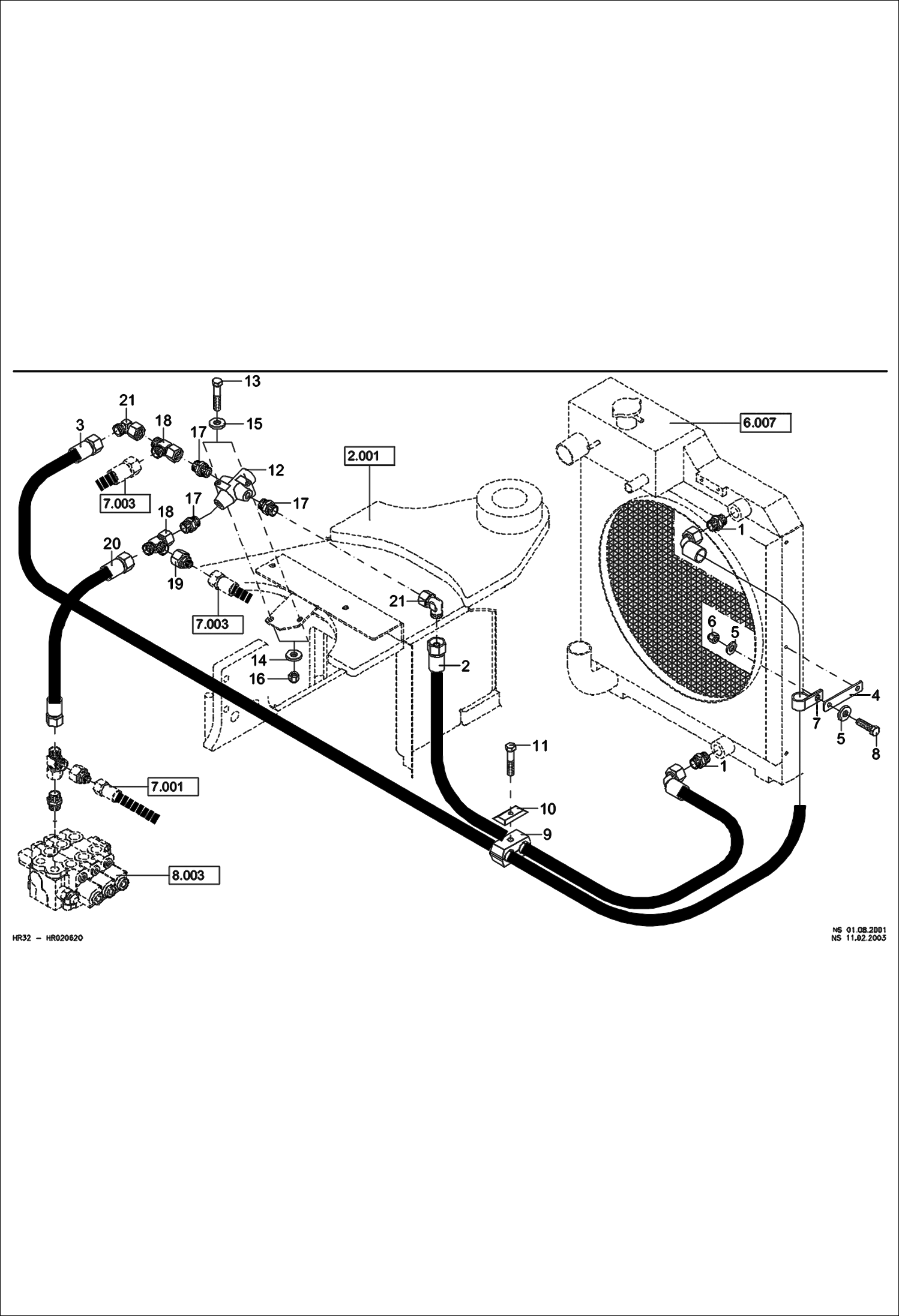

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Oil Cooler HYDRAULIC SYSTEM

1

1915060266

FITTING

2

4120129156

HOSE

3

4120190156

HOSE

4

0190008125

BRACKET Was 6190008125 - A

5

41343707057

WASHER Was 1307707018 - A

6

1212251011

NUT

7

5000210463

HOSE CLIP

8

1008707018

BOLT

9

5660199793

CLIP

10

5660200240

COVER PLATE

11

1007707619

BOLT Was 1007707519 - A

12

5755655550

OIL TEMPERATURE RE

13

1007707714

BOLT

14

1343707055

WASHER

15

1343707055

WASHER Was 1290707014 - A

16

1212251009

NUT

17

1915060567

FITTING

18

1919060356

SOCKET

19

1934060170

FITTING

20

4120140409

HOSE

21

1924060156

ELBOW FITTING
