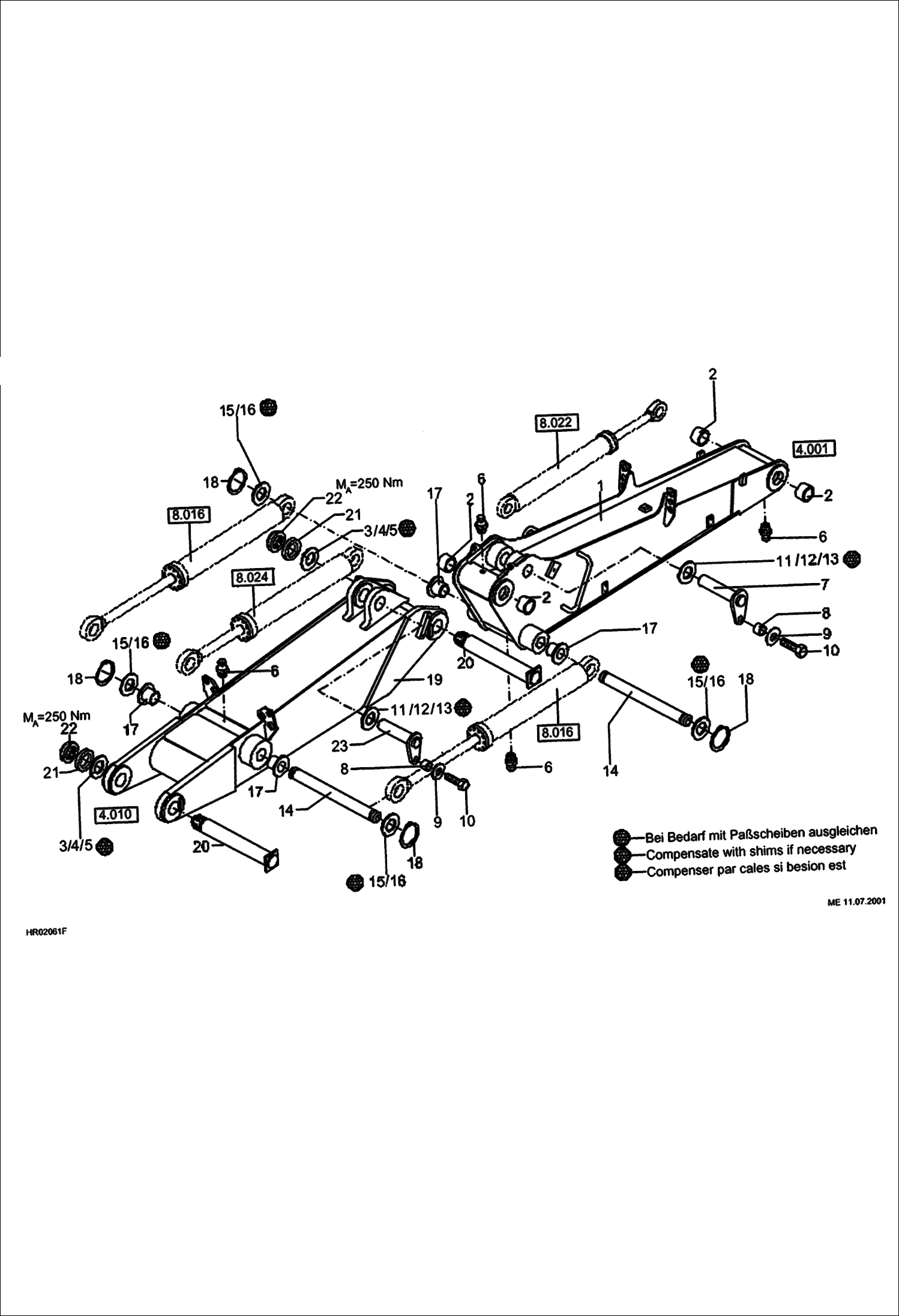

Запчасти Bobcat 442 BOOM Circular WORK EQUIPMENT

1

0190122002

BOOM, ARM DIPPER Was 6190122002 - A

2

5809625667

BUSHING

3

0202524050

WASHER

4

0203024057

WASHER

5

0202524051

WASHER

6

1607003010

GREASE NIPPLE

7

6155128043

PIN

8

0156029033

SPACER

9

1343707061

WASHER

10

1008707829

BOLT

11

1309412013

SHIM

12

1309412825

SHIM

13

1309412834

SHIM

14

0190122015

PIN, BOOM CYL Was 6190122015 - A

15

1309412425

SHIM

16

1309412434

SHIM

17

5809625686

BUSHING

18

1455622750

SNAP RING

19

0190123002

INTERMEDIATE BOOM Was 6190123002 - A

20

0209127041

PIN Was 6209127041 - A

21

0209127045

ZINC COATED RING

22

1212707446

SLOTTED NUT

23

0176105230

PIN Was 6176105230 - A
