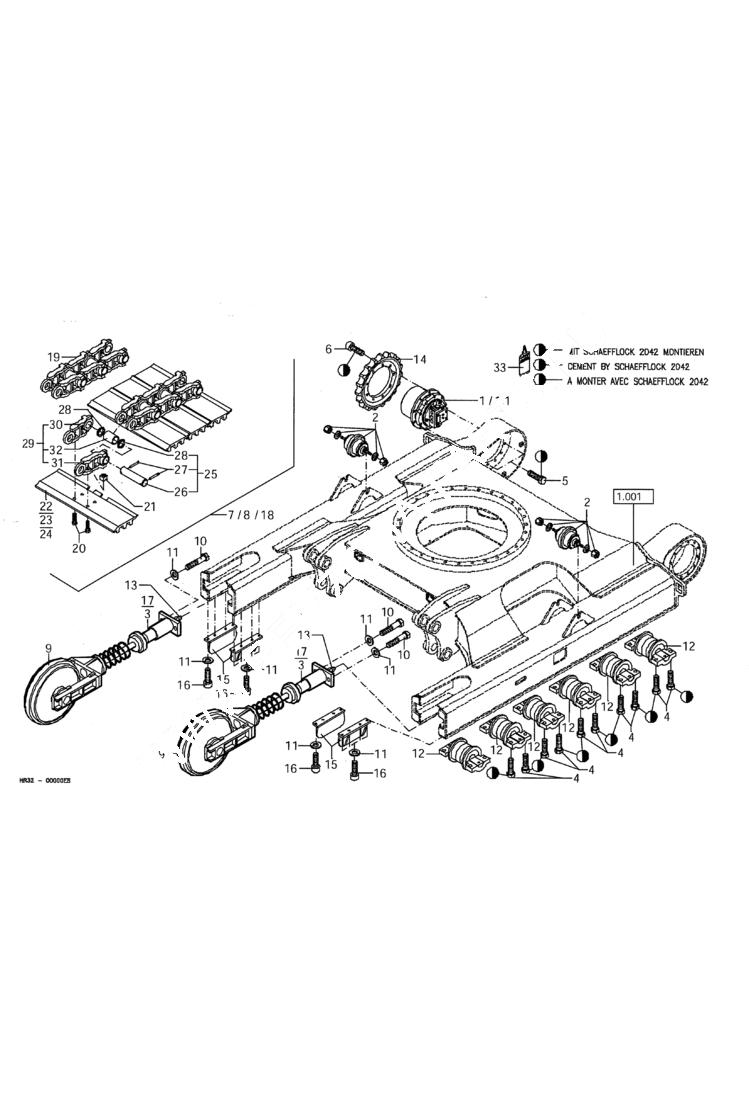

Запчасти Bobcat 442 TRACK VERSION Steel Track TRACK VERSION

1

TRANSMISSION NLA - Order 5459660217 - Was 5459660210 - A

1

5459660217

MOTOR, DRIVE HYD Was 5999991227 - D

2

5527640005

ROLLER

3

5671663035

CYLINDER Was 5671658430 - A

4

1007707630

BOLT

5

1008907036

BOLT

6

1045907041

BOLT

7

5671658424

TRACK, STEEL W/Ref. 19-22

8

5671658475

STEEL TRACK W/Ref. 19-23

9

5671663003

IDLER, TRACK FRONT Was 5671658434 - A

10

1007707430

BOLT

11

1290707022

WASHER

12

5671663001

TRACK ROLLER Was 5671658420 - A

13

5382211542

NIPPLE Also Order 1955005118 seal - Was 5671658366 - A

13

1955005118

SEAL RING

14

5671663005

SPROCKET Was 5671658426 - A

15

6190002060

IDLER COVER

16

1045707829

BOLT

17

5671658512

SEAL KIT track tension

18

5671658485

STEEL TRACK W/Ref. 19-21 & 24

19

5671660266

STEEL TRACK

20

5671658333

BOLT

21

5671658334

NUT

22

5671660269

TRACK SHOE (450MM) 450mm

23

5671660270

TRACK SHOE (500MM) 500mm

24

5671658332

TRACK SHOE (600MM) 600mm

25

5671658508

PIN W/Ref. 26, 27 & 28

26

MASTER PIN

27

COTTER PIN

28

SPACER RING

29

5671658510

REPAIR LINK ASSY W/Ref. 30, 31 & 32

30

TRACK LING Left

31

TRAACK LINK Right

32

TRACK BUSHING

33

MCS001035A

GLUE
