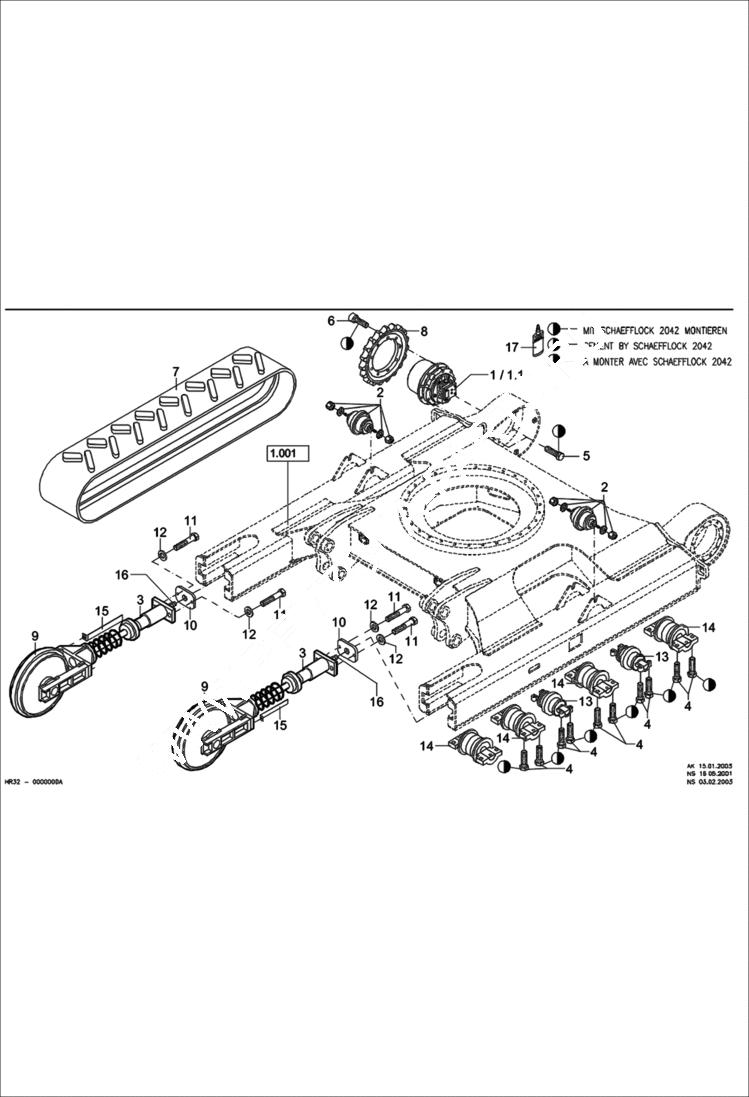

Запчасти Bobcat 442 TRACK VERSION Rubber Track TRACK VERSION

1

TRANSMISSION NLA - Order 5459660217 - Was 5459660210 - A

1

5459660217

MOTOR, DRIVE HYD Was 5999991227 - D

2

5527640005

ROLLER

3

5671663035

CYLINDER Uses 88,6mm O.D. ring seal, W/O metal ring - Was 5671658430 - A

3

5671663035

CYLINDER Uses 90.4mm O.D. ring seal W/metal ring

3

5671658512

SEAL KIT Includes ring seal W/O metal ring

3

5671663012

SEAL KIT Includes ring seal W/metal ring

4

1007707630

BOLT

5

1008907036

BOLT

6

1045907041

BOLT

7

6988330

TRACK, RBR (450X86X71) 18'' BOBCAT Was 5722010013 - A

8

5671663006

SPROCKET Was 5671658428 - A

9

IR5671663004

IDLER W/SPRING Was 5671658432 - A

10

0190002020

SUPPORT PLATE

11

1007707830

BOLT

12

1290707022

WASHER

13

5671663002

TRACK ROLLER Was 5671658422 - A

14

5671663001

TRACK ROLLER Was 5671658420 - A

15

6190002015

ANGLE

16

5382211542

NIPPLE Also Order 1955005118 seal

16

1955005118

SEAL RING

17

MCS001035A

GLUE
