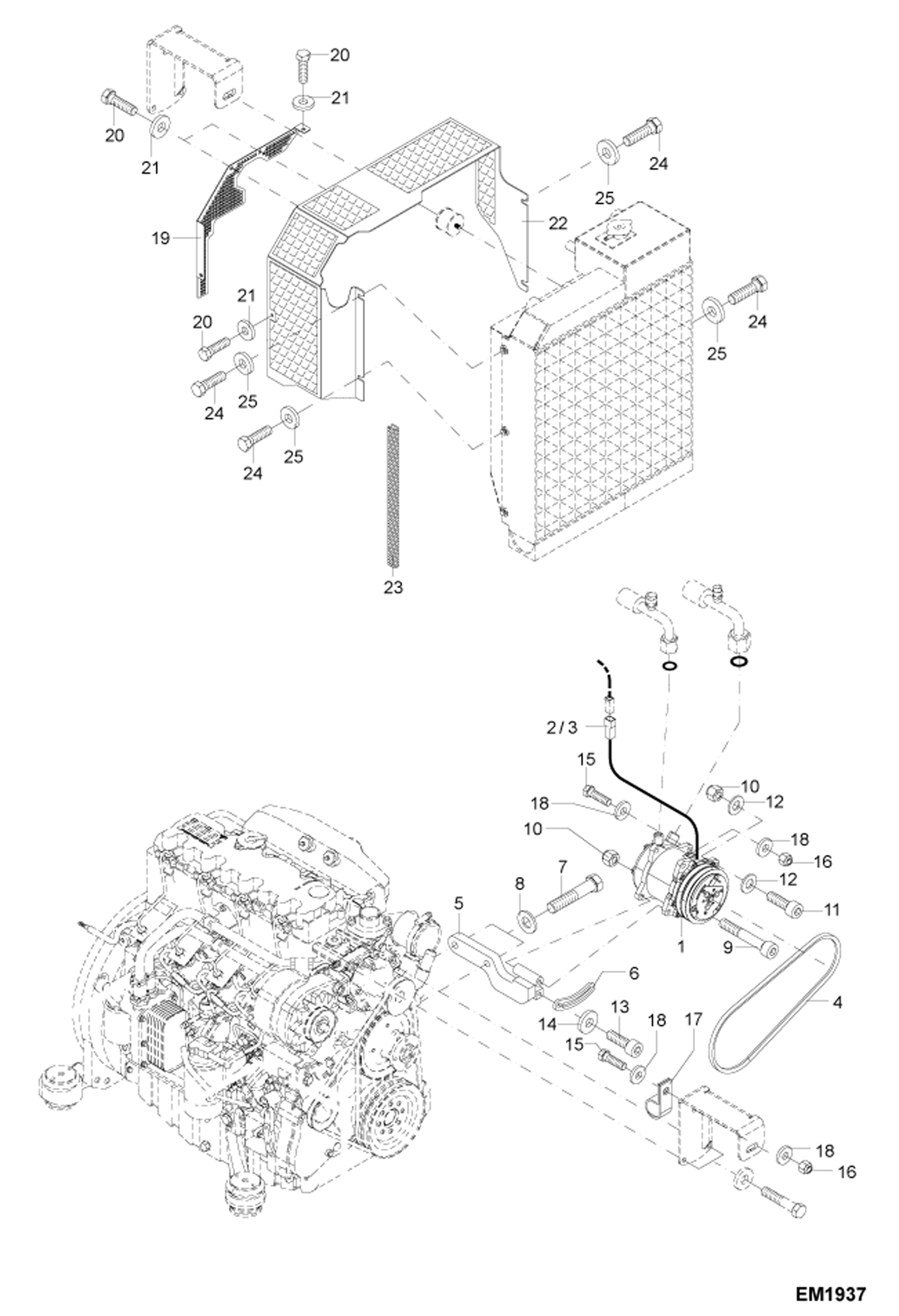

Запчасти Bobcat 442 AIR CONDITIONER 2 (S/N ADBR11169 & Above, ADBS11169 & Above) ACCESSORIES & OPTIONS

1

5436662003

COMPRESSOR, A/C

2

5350249537

CONNECTOR MALE

3

5350247311

TERMINAL MALE

4

1490953883

V-BELT

5

0234271230

BRACKET

6

5671662022

LEVER Was 6234271235 - A

7

1008707136

BOLT

8

1990707025

WASHER serial number listed is the vendor serial number Was 1290707025 - A

9

1045707625

SCREW M10X100

10

1212251013

NUT

11

1045707324

BOLT

12

1290707020

WASHER

13

1045707923

BOLT

14

1343707059

WASHER

15

1008707318

BOLT

16

1212251011

NUT

17

5000136820

HOSE CLIP

18

1343707057

WASHER

19

6234262308

FAN PROTECTION OPTION option

20

1008707213

BOLT option

21

1307707014

WASHER option

22

6234262209

FAN PROTECTION OPTION option

23

5354600010

RUBBER PROFILE

24

1008707318

BOLT option

25

1307707018

WASHER option
