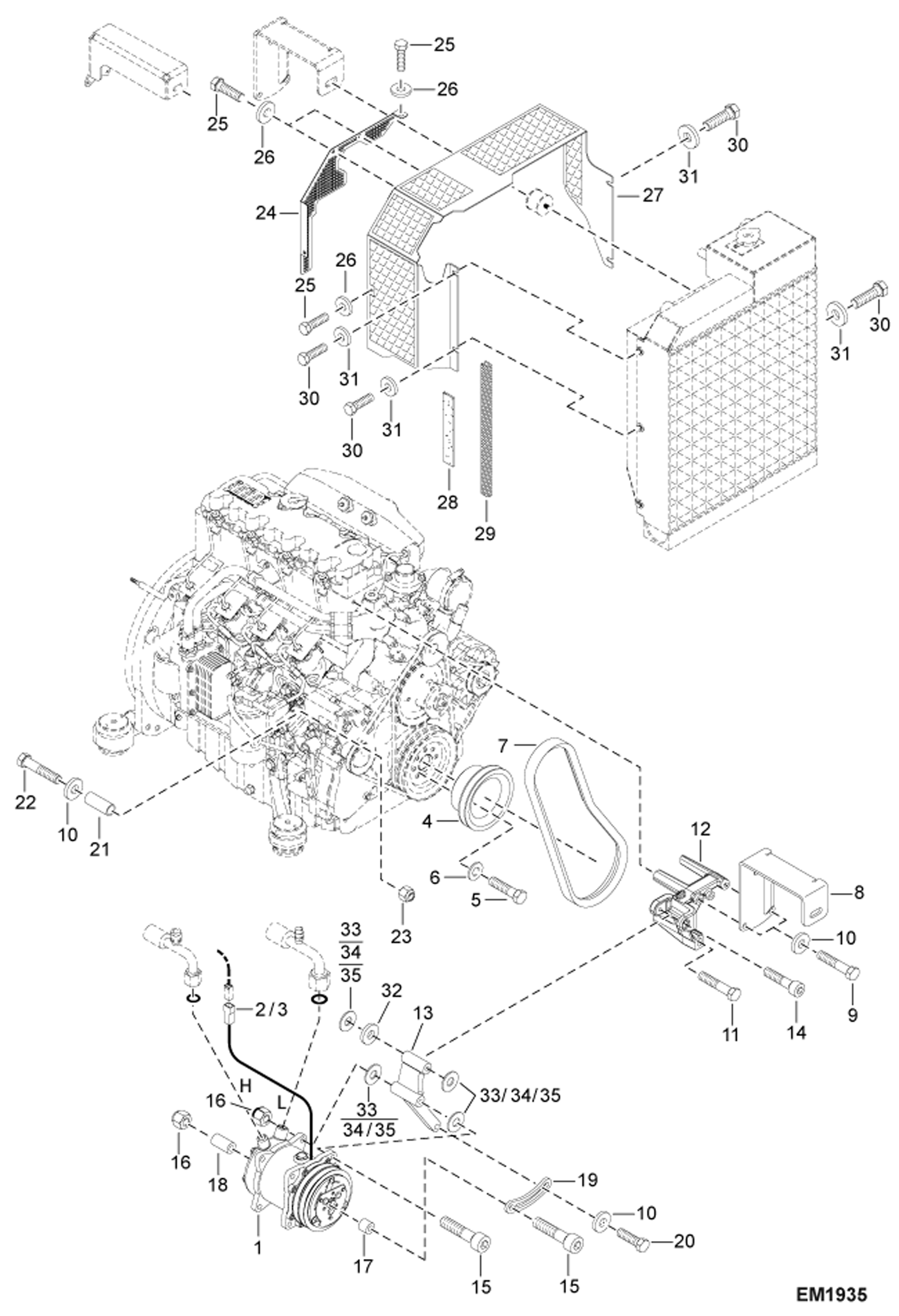

Запчасти Bobcat 442 AIR CONDITIONER 2 (S/N ADBR11001 - 11168, ADBS11001 - 11168) ACCESSORIES & OPTIONS

1

5436662003

COMPRESSOR, A/C

2

5350249537

CONNECTOR MALE

3

5350247311

TERMINAL MALE

4

5411657028

PULLEY

5

1007341724

BOLT M10X55

6

1290707020

WASHER

7

1490953128

V-BELT AVX13X1125LA

8

6283015148

BRACKET

9

1007707920

BOLT M8X130

11

5411664583

BOLT

12

5411662527

CONSOLE

13

0234392025

BRACKET

14

1045707120

BOLT Was 1007707320 - A

15

1045707625

SCREW M10X100

16

1212251013

NUT

17

0234392032

SPACER BUSHING 22X19,5

18

0234392033

SPACER BUSHING 22X41

19

6234392035

LEVER

20

1008707319

BOLT

21

0336012024

SPACER BUSHING 12X1,5X30

22

1007707519

BOLT

23

1212251011

NUT

24

6234262308

FAN PROTECTION OPTION option

25

1008707213

BOLT option

26

1307707014

WASHER option

27

6234262209

FAN PROTECTION OPTION option

28

5354640128

NEOPRENE STRIP option

29

5354600010

RUBBER PROFILE

30

1008707318

BOLT option

31

1307707018

WASHER option

32

1343707057

WASHER

33

1309412117

SHIM

34

1309412217

SHIM

35

1309412107

SHIM
