Запчасти Bobcat 442 AIR CONDITIONER 1 (S/N ADBR11169 & Above, ADBS11169 & Above) ACCESSORIES & OPTIONS

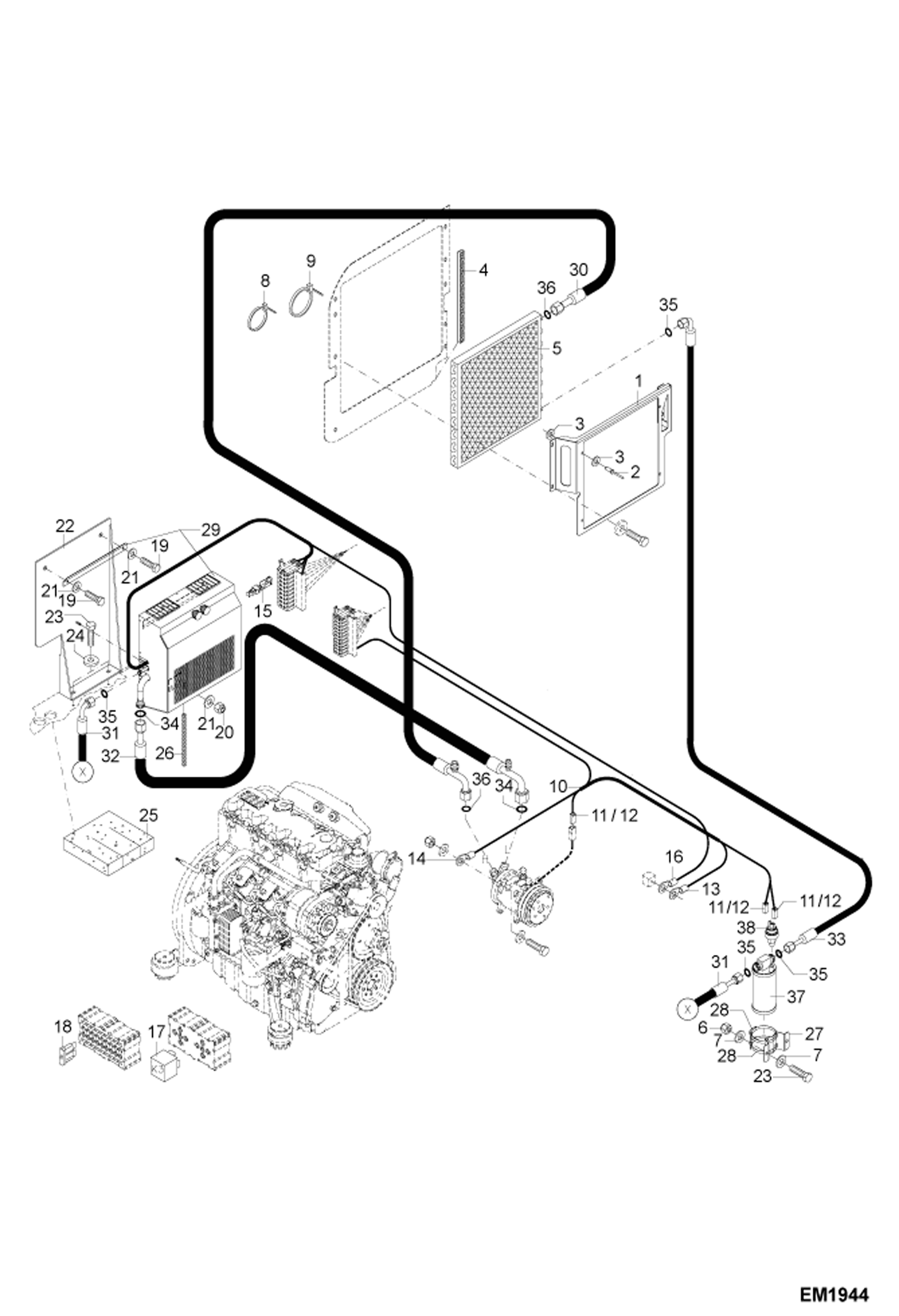

Схема запчастей Bobcat 442 - AIR CONDITIONER 1 (S/N ADBR11169 & Above, ADBS11169 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6234272530

BRACKET

2

1940000939

RIVET

3

1307707012

WASHER

4

5354600010

RUBBER PROFILE

5

5436662036

CONDENSER, A/C

6

1212251011

NUT

7

1290707018

WASHER

8

5653093560

BINDER

9

5350650280

BINDER

10

0234272020

WIRE HARNESS W/Ref. 11-14

11

5350249536

HOUSING

12

5350246815

FEM TERMINAL

13

5350249597

CABLE CONNECTOR

14

5350246600

CABLE CONNECTOR

15

5350249552

CONNECTOR

16

5350246610

CABLE CONNECTOR

17

5050247335

RELAY

18

5050650266

FUSE

19

1008707213

BOLT

20

1212251009

NUT

21

1343707055

WASHER

22

6183772012

BRACKET

23

1008707018

BOLT

24

1343707057

WASHER

25

0190371015

INSULATION

26

0465515052

HOSE

27

6207772040

SUPPORT BRACKET

28

5603320370

HOSE CLIP

29

7022922

EVAPORATOR See Illustration EVAPORATOR UNIT/ EM1938 Was 5436662033 - A

30

0234272640

HOSE

31

0234272641

HOSE +ITEM

32

0234272642

HOSE +ITEM

33

0234272643

HOSE +ITEM

34

5821662084

O-RING

35

5436662099

O-RING

36

7031516

O-RING Was 5436662098

37

5436662004

DRIER, A/C ASSY

38

5436662006

PRESSURE SWITCH

Выбрано товаров: 38
