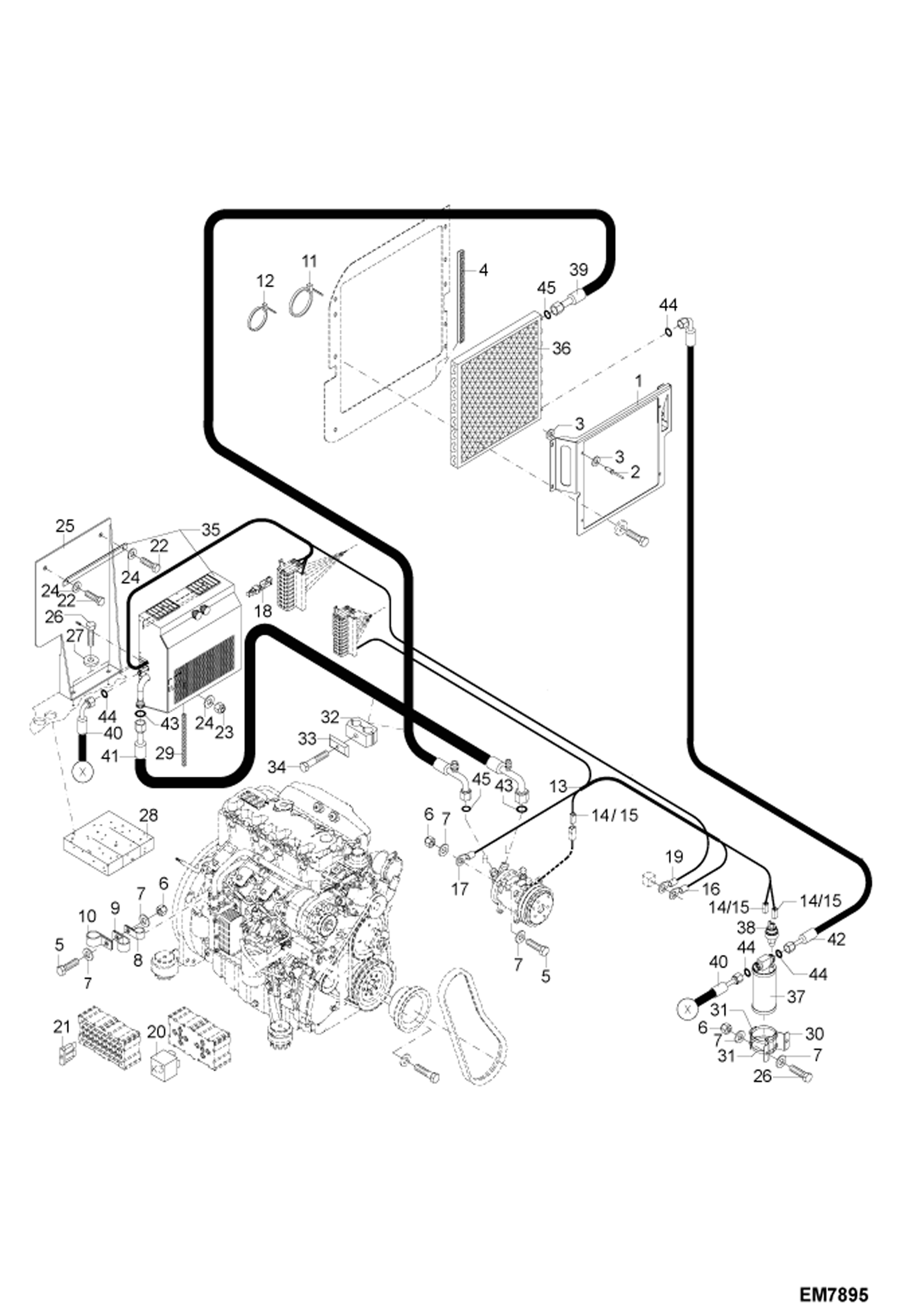

Запчасти Bobcat 442 AIR CONDITIONER 1 (S/N ADBR11001 - 11168, ADBS11001 - 11168) ACCESSORIES & OPTIONS

1

6234272530

BRACKET

2

1940000939

RIVET

3

1307707012

WASHER

4

5354600010

RUBBER PROFILE

5

1008707318

BOLT

6

1212251011

NUT

7

1290707018

WASHER

8

5000136800

HOSE CLIP

9

5000210400

HOSE CLIP

10

5000096800

HOSE CLAMP

11

5653093560

BINDER

12

5350650280

BINDER

13

0234272020

WIRE HARNESS W/Ref . 14-17

14

5350249536

HOUSING

15

5350246815

FEM TERMINAL

16

5350249597

CABLE CONNECTOR

17

5350246600

CABLE CONNECTOR

18

5350249552

CONNECTOR

19

5350246610

CABLE CONNECTOR

20

5050247335

RELAY

21

5050650266

FUSE

22

1008707213

BOLT

23

1212251009

NUT

24

1343707055

WASHER

25

6183772012

BRACKET

26

1008707018

BOLT

27

1343707057

WASHER

28

0190371015

INSULATION

29

0465515052

HOSE

30

6207772040

SUPPORT BRACKET

31

5603320370

HOSE CLIP

32

5660199788

HOSE CLIP

33

5660200230

COVER PLATE

34

1007707619

BOLT

35

7022922

EVAPORATOR See Illustration EVAPORATOR UNIT/ EM1938 Was 5436662033 - A

36

5436662036

CONDENSER, A/C

37

5436662004

DRIER, A/C ASSY

38

5436662006

PRESSURE SWITCH

39

5436662012

HOSE

40

5436662011

HOSE

41

5436662013

HOSE

42

5436662010

HOSE

43

5821662084

O-RING

44

5436662099

O-RING

45

7031516

O-RING Was 5436662098
