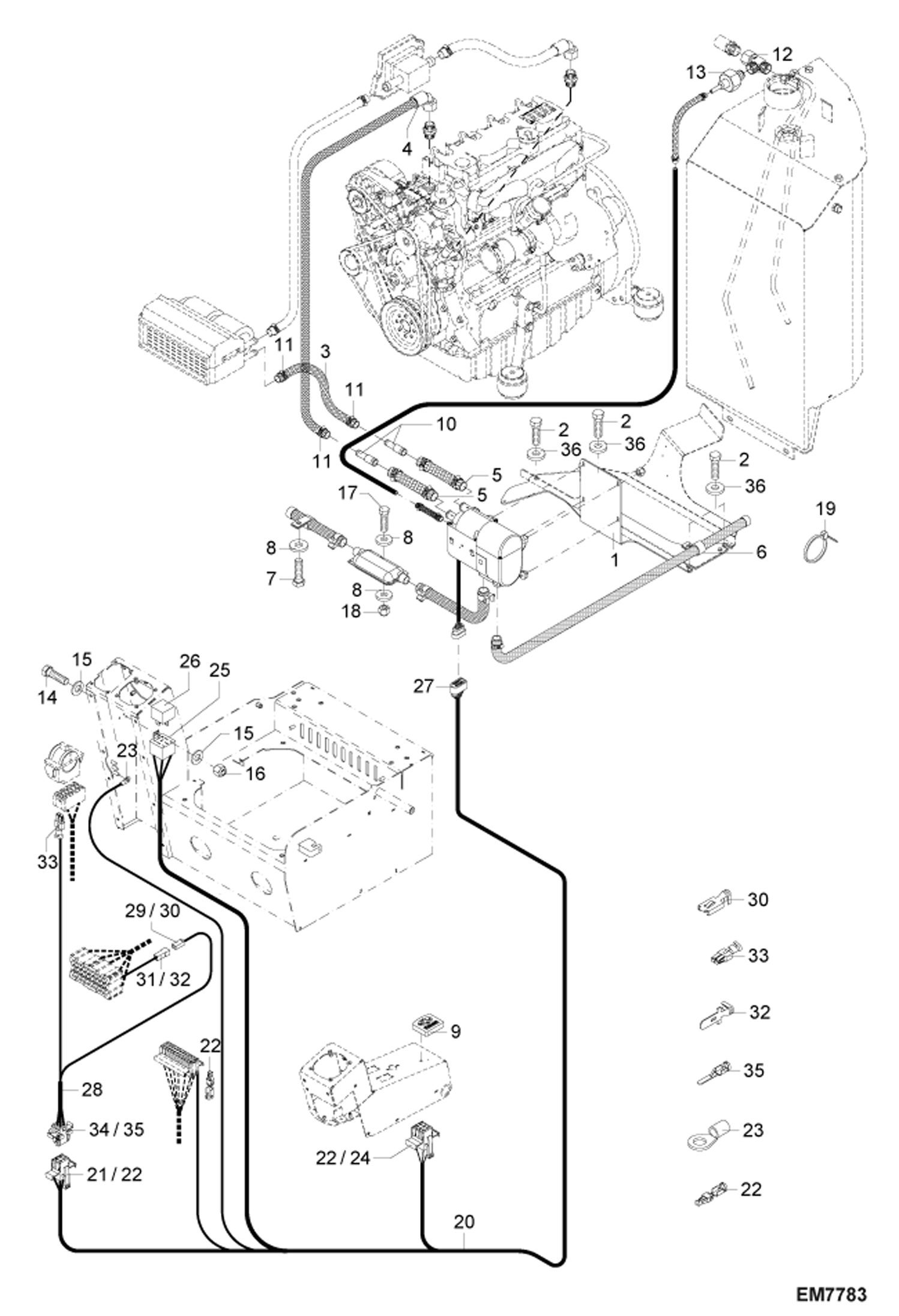

Запчасти Bobcat 442 DIESEL OPERATED HEATING (Installation) POWER UNIT

1

6234239110

BRACKET

2

1008707318

BOLT

3

0234239115

HOSE, HYD

4

0234239109

HOSE, HYD

5

5206660307

HOSE

6

5000210400

HOSE CLIP

7

1008707912

BOLT

8

1343707055

WASHER

9

5206660101

CLOCK

10

0209230012

REDUCTION, PIECE

11

5660200090

CLAMP

12

1919060353

FITTING

13

6203388014

ADAPTER

14

1008707909

BOLT

15

1290707012

WASHER

16

1212251007

NUT

17

1008707213

BOLT

18

1212251009

NUT

19

5653093560

BINDER

20

0234239131

HARNESS, ADDITIONAL HEATING W/Ref. 21-27

21

5350249682

HOUSING, FEMALE

22

5350249552

CONNECTOR

23

5350249597

CABLE CONNECTOR

24

5350249683

HOUSING (FEMALE)

25

5050336119

RELAY, 12V 20/30A

26

5050247335

RELAY

27

5050650497

HOUSING, FEMALE

28

0234239132

HARNESS, ADDITIONAL HEATING W/Ref. 29-35

29

5350249536

HOUSING

30

5350246805

TERMINAL FEMALE

31

5350249537

CONNECTOR MALE

32

5350247311

TERMINAL MALE

33

5350249556

TERMINAL, FEMALE

34

5350249688

HOUSING, MALE

35

5350249695

MAL TERMINAL

36

1343707057

WASHER
