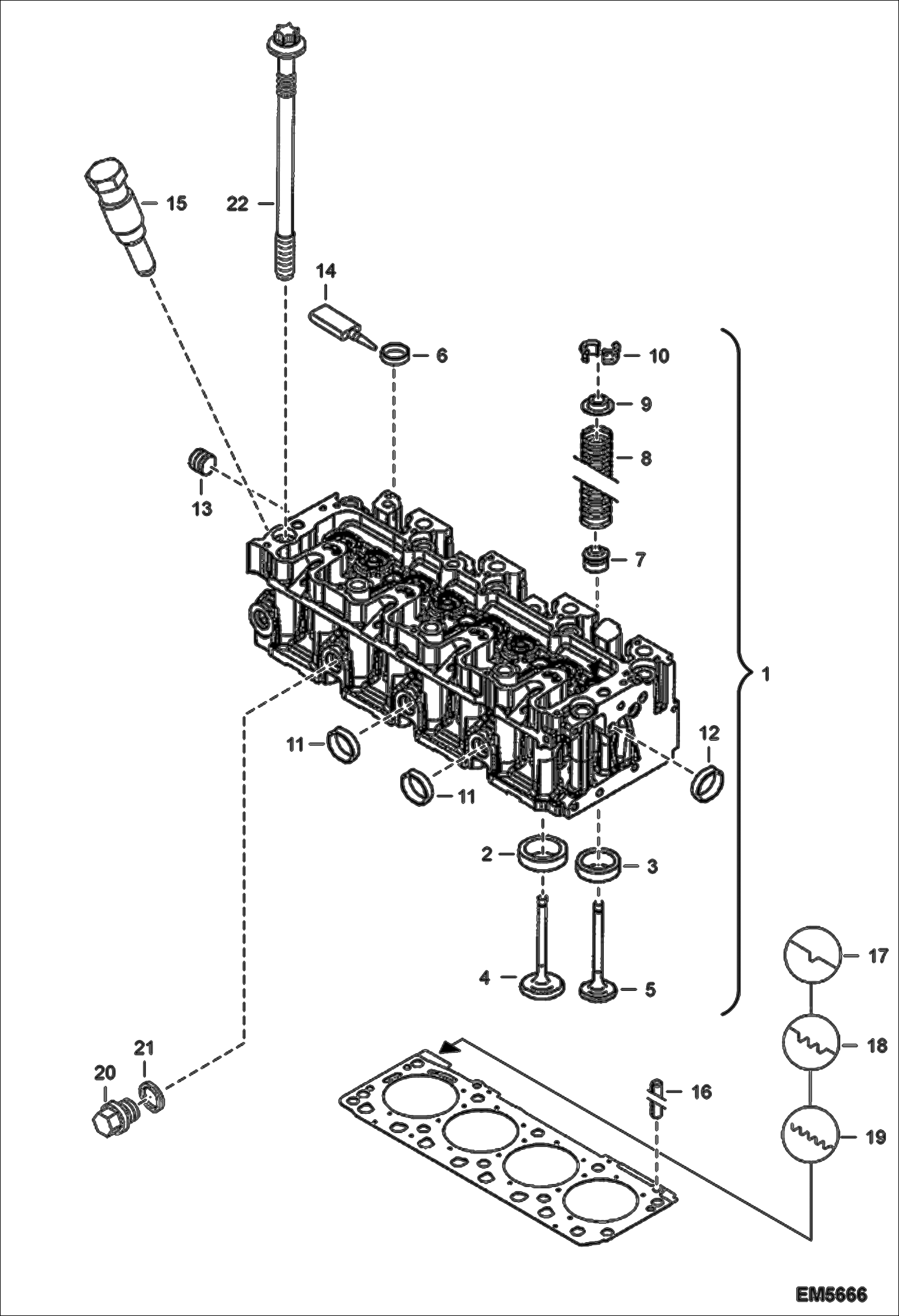

Запчасти Bobcat 442 CYLINDER HEAD POWER UNIT

1

7012393

HEAD, CYL ENG W/Ref. 2-13

2

6681631

INSERT Was 7013553 - A

3

7013554

INSERT VALVE SEAT

4

7013513

VALVE EXHAUST

5

7013516

VALVE INLET

6

7013370

COVER

7

6668947

SEAL Was 7013467 - A

8

7013494

SPRING COMPRESSION

9

7013517

CAP SPRING

10

7013438

BUSHING

11

7013360

COVER

12

7013359

COVER

13

7013423

PLUG SCREW

14

7013430

ADHESIVE

15

7013466

LOCK

16

5411664051

PIN ROLL

17

5411664052

CYLINDER HEAD GASKET A1.47/B1.51 See Illustration ENGINE PARTS II/ EM1946 0.058'' x 0.060'' (1.47 mm x 1.51 mm)

18

5411664053

CYLINDER HEAD GASKET A1.57 B1.61 0.062'' x 0.064'' (1.57 mm x 1.61 mm)

19

5411664054

CYLINDER HEAD GASKET A1.67 / B1.71 0.066'' x 0.068'' (1.67 mm x 1.71 mm)

20

7013340

PLUG SCREW

21

6666395

SEAL RING Was 7013355 - A

22

5411664050

BOLT See Illustration ENGINE PARTS II/ EM1946
