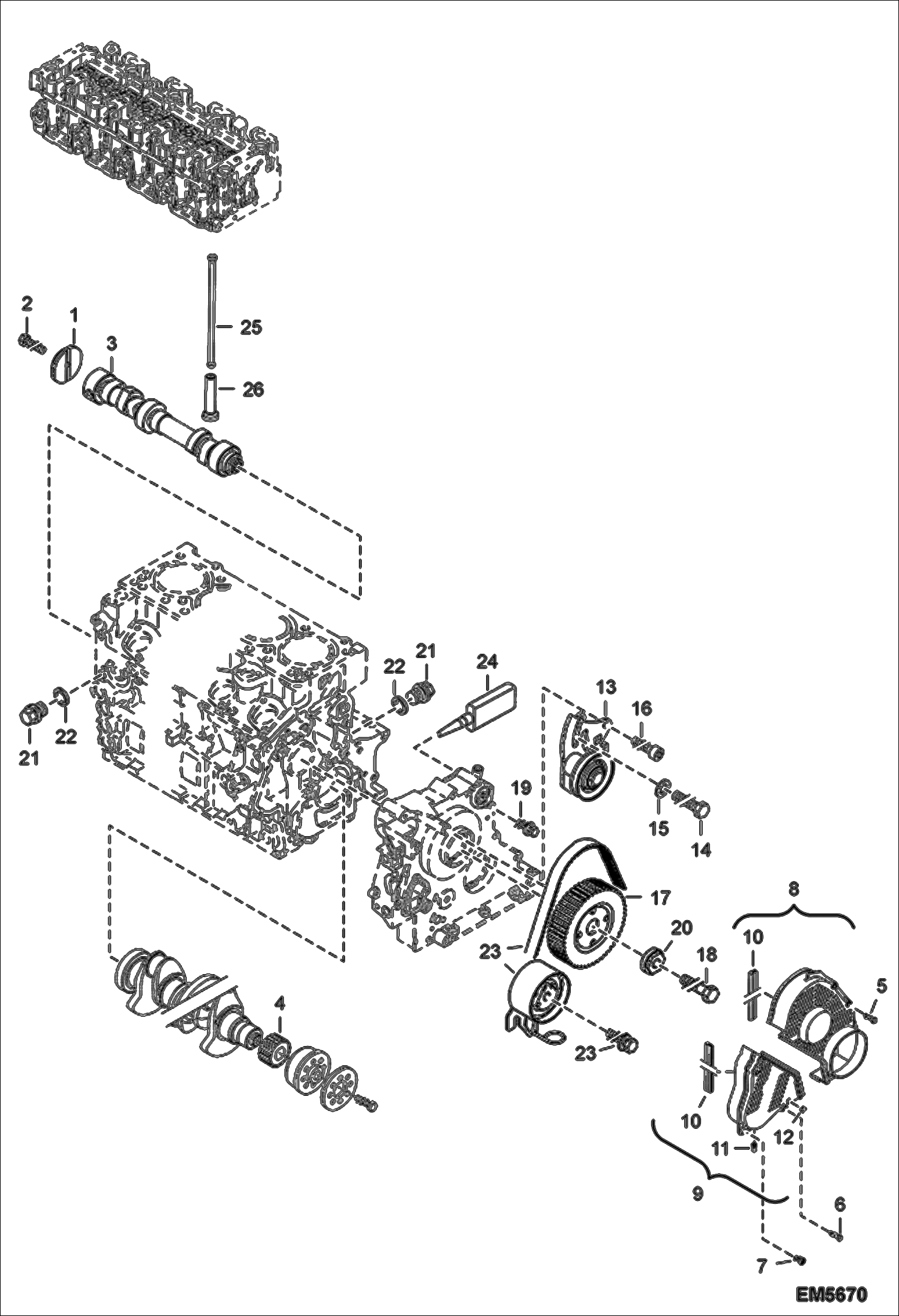

Запчасти Bobcat 442 CAMSHAFT POWER UNIT

1

6666469

WASHER Was 7013473 - A

2

7013377

BOLT HEXAGON

3

7013559

CAMSHAFT

4

5411664519

SYNCHRONE BERLT PULLEY

5

7013341

BOLT HEXAGON

6

7013363

BOLT HEXAGON

7

6679667

SCREW Was 7013444 - A

8

7013526

COVER PROTECTION W/Ref. 10

9

6688287

COVER PROTECTION W/Ref. 10-12 - Was 7012046 - A

10

6688205

SEAL 1=1 METER Was 7013435 - A

11

7013514

GROMMET RUBBER

12

6672899

PLUG Was 7013397 - A

13

5411664267

TENSIONING PULLEY

14

5411664268

BOLT

15

5411664269

WASHER

16

5411657795

BOLT

17

5411664081

SYNCHRONE BELT PULLEY See Illustration ENGINE PARTS I/ EM1943

18

6666711

BOLT Was 7012042 - A

19

5411664082

BOLT

20

5411664084

WASHER

21

7015311

PLUG SCREW

22

6666393

SEAL RING Was 7013351 - A

23

5411657858

REPAIR KIT See Illustration ENGINE PARTS I/ EM1943

24

5411664001

PACKING COMPOUND

25

7013530

ROD PUSH

26

6666504

TAPPET Was 7013484 - A
