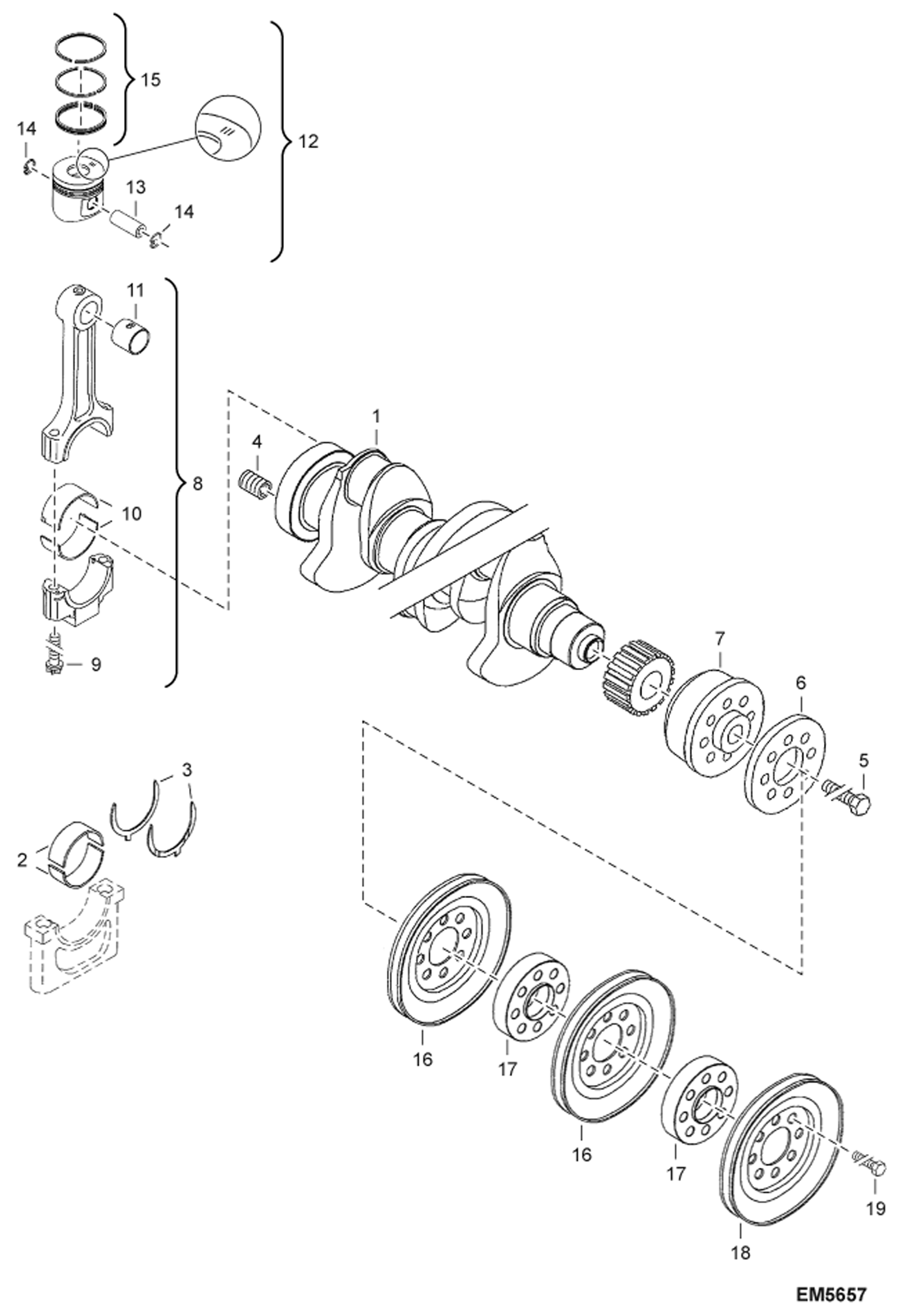

Запчасти Bobcat 442 PISTON AND CRANKSHAFT POWER UNIT

1

7013550

CRANKSHAFT

2

7013504

BEARING MAIN

3

7013449

WASHER THRUST

4

6672890

ADAPTER Was 7013565 - A

5

5411664525

BOLT

6

5411663472

LUBE DEFLECTOR

7

5411664031

OUTPUT FLANGE See Illustration ENGINE PARTS I/ EM1943

8

7013528

ROD CONNECTING W/Ref. 9-11

9

7013529

BOLT BIG END big end

10

7013450

BEARING BIG END big end

11

6666463

BUSHING standard Was 7013468 - A

11

6666464

BEARING oversize Was 7013469 - A

12

7013458

PISTON

13

6666470

PIN Was 7013474 - A

14

7013367

RING SNAP

15

7013557

RING SET PISTON

16

5411656509

PULLEY EUROPE See Illustration ENGINE PARTS I/ EM1943

17

5411664039

DISTANCE PLATE

18

7015344

PULLEY V-GROOVED See Illustration ENGINE PARTS I/ EM1943

19

5411664040

BOLT
