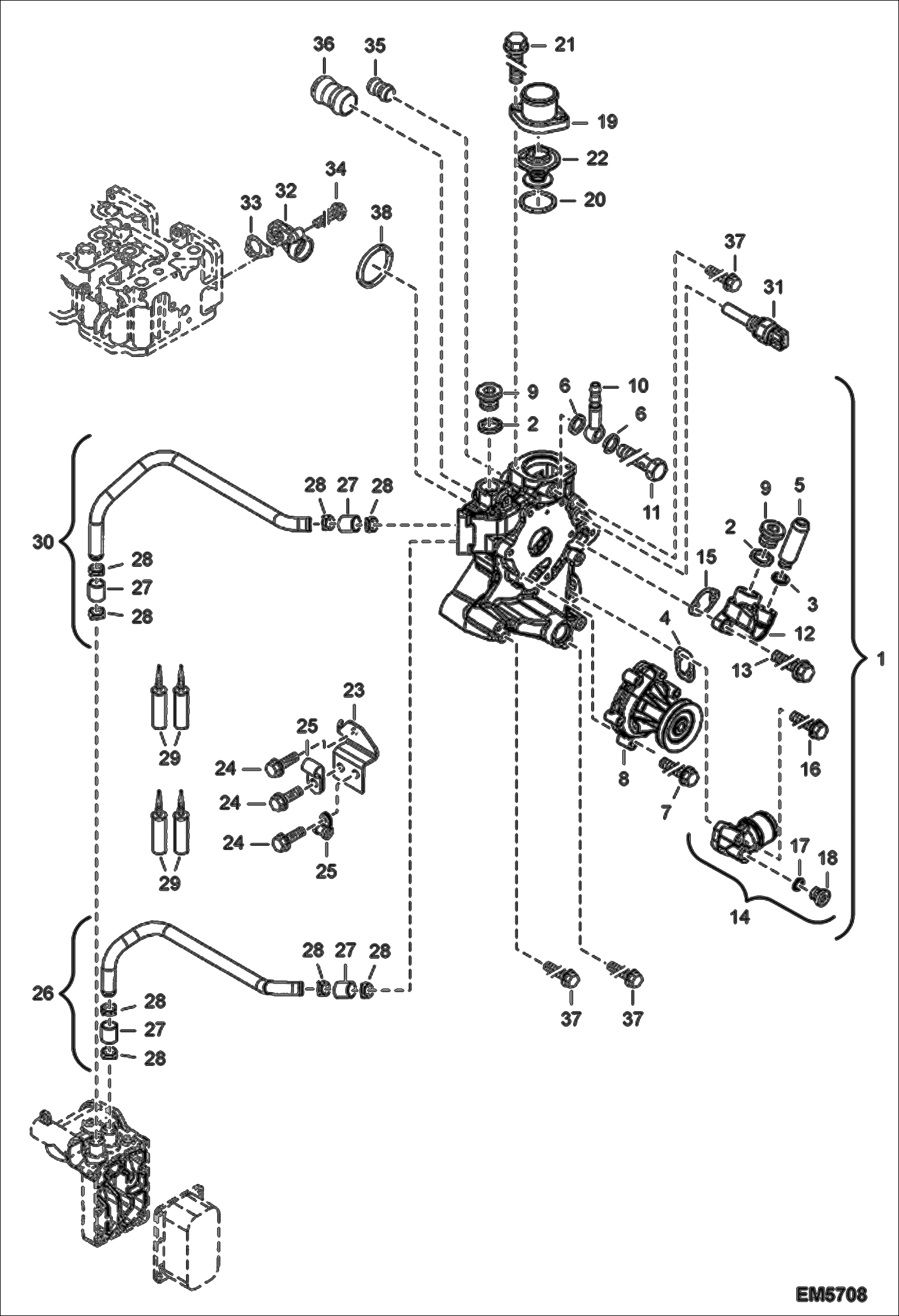

Запчасти Bobcat 442 WATER PUMP & THERMOSTAT POWER UNIT

1

7013460

BRACKET W/Ref. 2-16

2

6513820

WASHER Was 7013356 - A

3

6668108

WASHER Was 7013353 - A

4

7013464

GASKET

5

7013502

CONNECTOR HOSE

6

7013352

RING SEALING

7

7013368

BOLT HEXAGON

8

7013564

PUMP COOLANT See Illustration ENGINE PARTS I/ EM1943

9

6681179

PLUG Was 7013361 - A

10

7013503

FITTING HOSE

11

7013558

SLEEVE GUIDE

12

7013461

MANIFOLD

13

7013405

BOLT HEXAGON

14

7013462

MANIFOLD W/Ref. 17-18

15

7013465

GASKET

16

7013409

BOLT HEXAGON

17

6672939

O-RING Was 7013350 - A

18

6672938

PLUG Was 7013364 - A

19

5411664240

COVER

20

5411664241

O-RING

21

5411657379

BOLT

22

5411664421

THERMOSTAT See Illustration ENGINE PARTS I/ EM1943

23

7013454

BRACKET

24

7013411

BOLT HEXAGON

25

7013566

CLAMP PIPE

26

7013455

TUBELINE COOLING WATER W/Ref. 27-28

27

7013381

HOSE

28

7013382

CLAMP SPRING BAND

29

7013332

LUBRICANT

30

7013456

TUBELINE COOLING WATER W/Ref. 27-28

31

5411663897

TEMP. TRANSMITTER See Illustration ENGINE PARTS I/ EM1943

32

7013561

MANIFOLD

33

7013562

GASKET

34

7013401

BOLT HEXAGON

35

7011159

SEAL

36

7011160

SEAL

37

7013378

BOLT HEXAGON

38

7011161

O-RING
