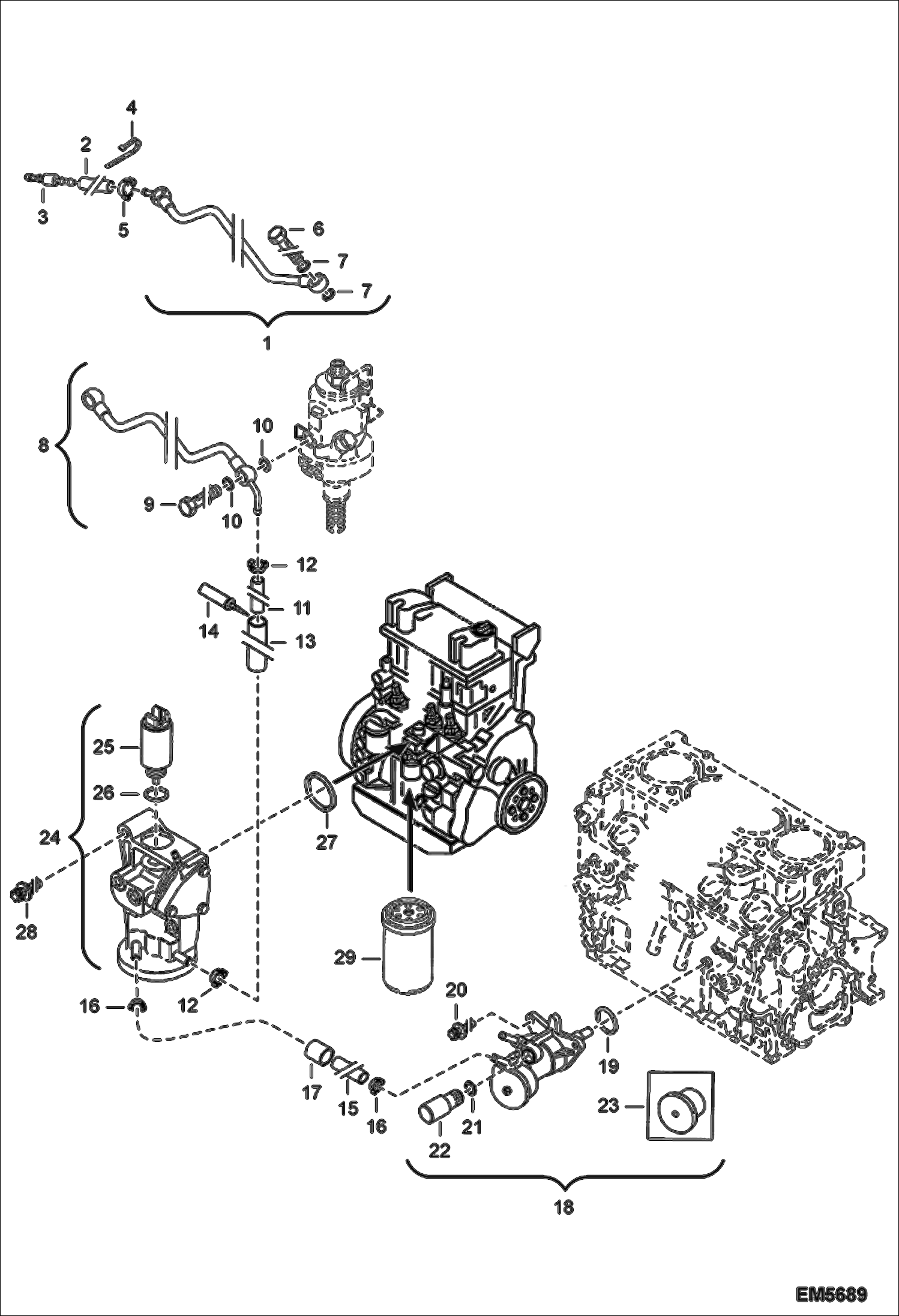

Запчасти Bobcat 442 FUEL FEEDING POWER UNIT

1

7013520

TUBELINE FUEL W/Ref. 6-7

2

7013394

HOSE RUBBER

3

7013417

CLUTCH

4

7013393

BUSHING CLAMPING

5

7013399

CLIP HOSE

6

6514745

SCREW Was 7013358 - A

7

7013414

RING SEALING

8

7013463

TUBELINE FUEL W/Ref. 9-10

9

6514745

SCREW Was 7013358 - A

10

7013384

RING SEALING

11

7013421

HOSE RUBBER

12

7013399

CLIP HOSE

13

7013437

HOSE

14

7013332

LUBRICANT

15

7013419

HOSE RUBBER

16

7013399

CLIP HOSE

17

7013436

HOSE

18

5411663943

FUEL PUMP See Illustration ENGINE PARTS I/ EM1943 W/Ref. 19 & 21-23

19

5411663944

O-SEAL

20

7015340

BOLT TORX-HEAD

21

5411663946

SEAL RING

22

5411657053

HAND PUMP

23

5411663947

REPAIR KIT

24

5411663802

BOOSTER W/Ref. 25-26

25

7013506

SOLENOID See Illustration ENGINE PARTS I/ EM1943

26

7013425

ORING

27

5411663801

O-RING

28

5411657890

BOLT

29

5411656301

FUEL FILTER See Illustration ENGINE PARTS I/ EM1943
