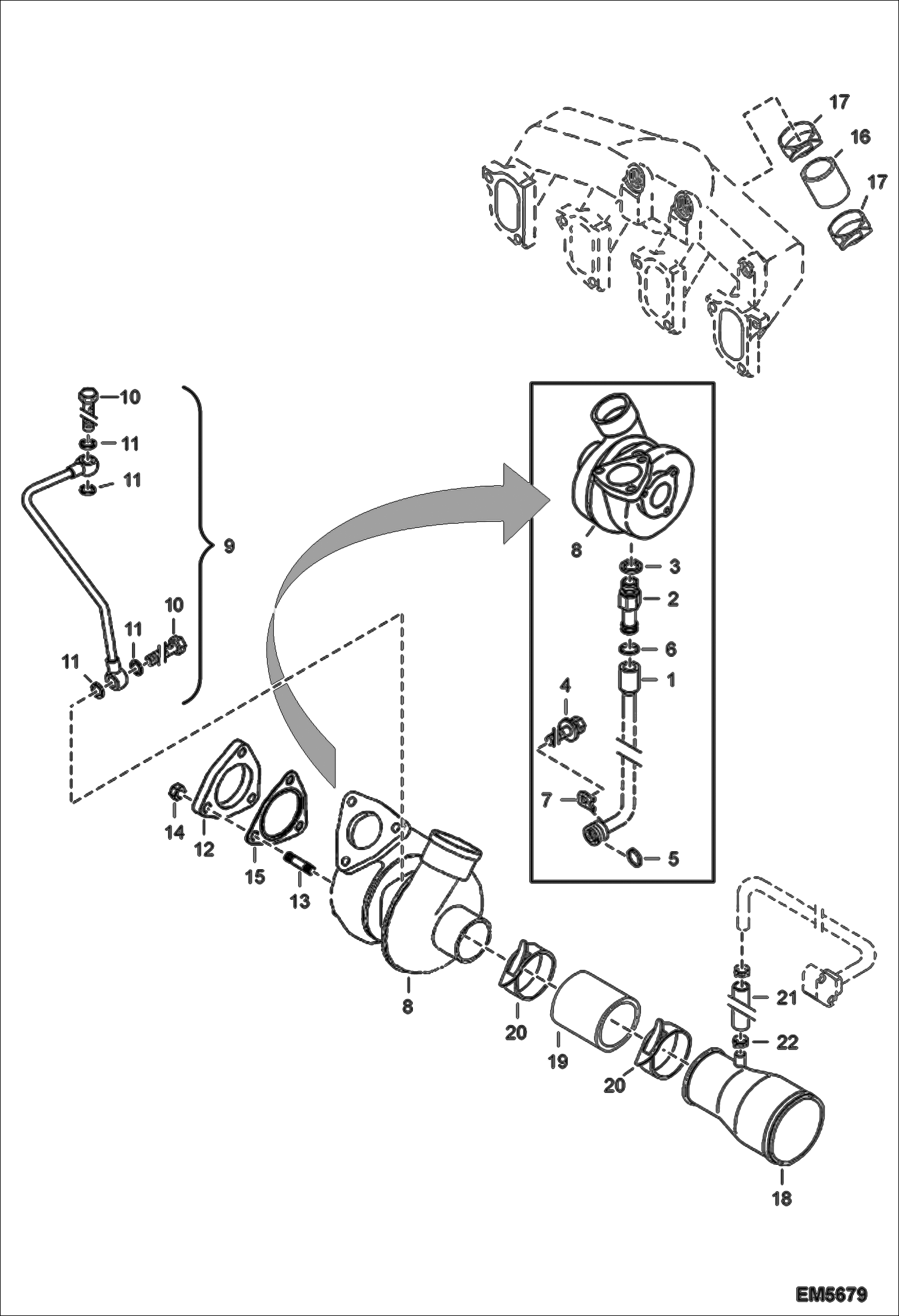

Запчасти Bobcat 442 TURBOCHARGER POWER UNIT

1

7013552

TUBELINE OIL RETURN

2

7013501

NIPPLE SCREW-IN

3

6668108

WASHER Was 7013353 - A

4

7013407

BOLT HEXAGON

5

7013424

ORING

6

7013426

ORING

7

7013511

PLATE RETAINING

8

5411657984

TURBOCHARGER See Illustration ENGINE PARTS II/ EM1946

9

7013551

TUBELINE LUBRICAT. OIL W/Ref. 10-11

10

6514745

SCREW Was 7013358 - A

11

7013383

RING SEALING

12

5411663808

FLANGE, INTAKE

13

5411656901

STUD

14

5411657804

NUT

15

5411656449

SEAL

16

5411664415

RUBBER SLEEVE

17

5411663813

CLIP, HOSE

18

5411664420

INLET PIPE

19

5411664415

RUBBER SLEEVE

20

5411663813

CLIP, HOSE

21

6673962

HOSE Was 7013402 - A

22

6673963

CLAMP Was 7013396 - A
