Главная
/
Справочники
/
Bobcat
/
Экскаваторы
/
442
/
ADBR11001 & Above, ADBS11001 & Above
/
POWER UNIT
/

ENGINE PARTS II (S/N ADBR11001 - 11168, ADBS11001 - 11168)

Запчасти Bobcat 442 ENGINE PARTS II (S/N ADBR11001 - 11168, ADBS11001 - 11168) POWER UNIT

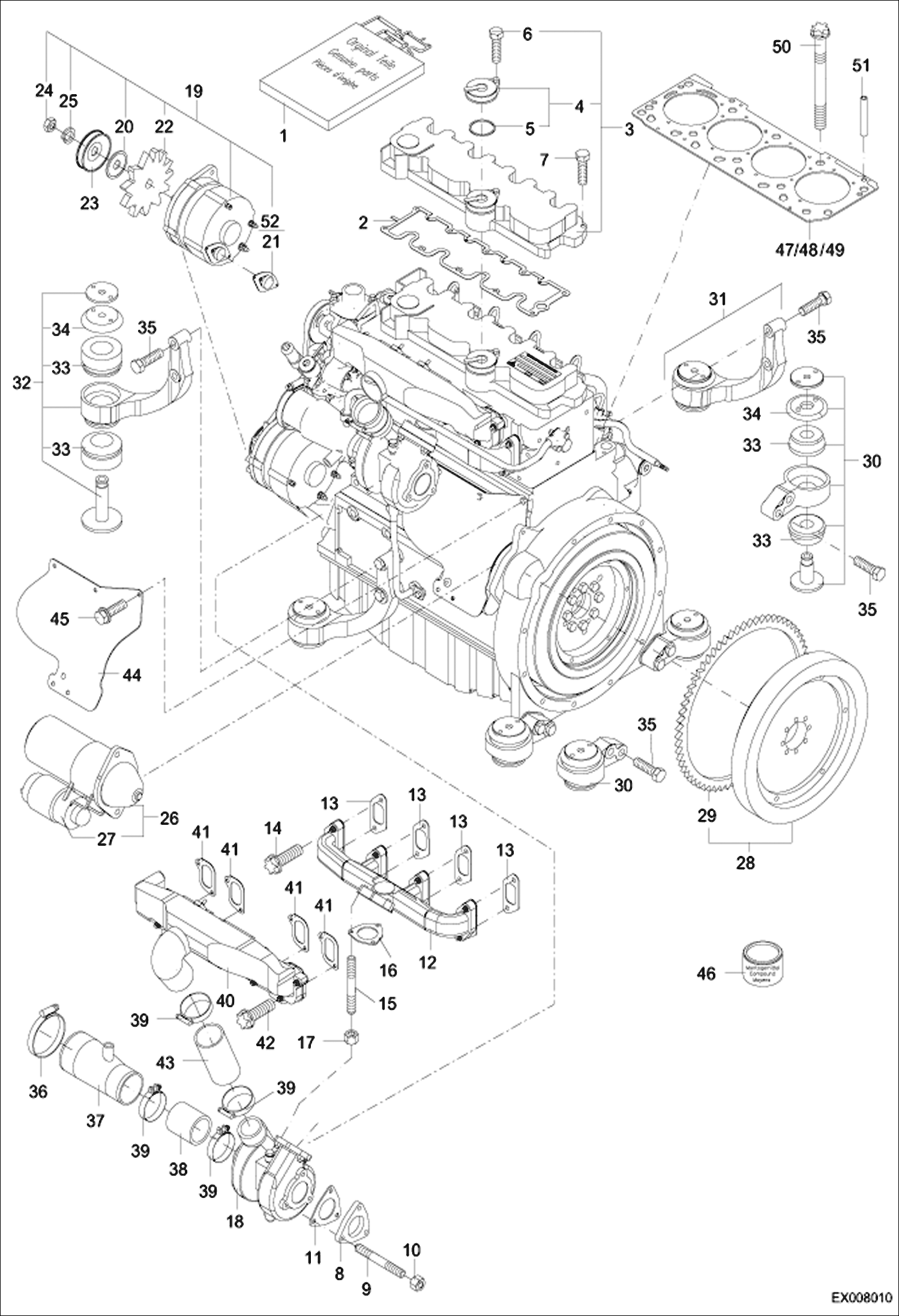

Схема запчастей Bobcat 442 - ENGINE PARTS II (S/N ADBR11001 - 11168, ADBS11001 - 11168) POWER UNIT

№

Артикул

Название

Примечание

Количество

1

5411663644

KIT, GASKET engine

2

5411658001

GASKET Was 5411657056 - A

3

5411663891

COVER, HEAD CYL ENG See Illustration ROCKER ARMS & COVER/ EM5664 W/Ref. 4-6 - Was 5411663805 - A

4

5411657057

BREATHER VALVE W/Ref. 5

5

5411663892

O-RING Was 5411663806 - A

6

5411663807

BOLT

7

5411657060

BOLT

8

5411663808

FLANGE, INTAKE

9

5411656901

STUD

10

5411657804

NUT

11

5411656449

SEAL

12

5411663809

MANIFOLD, EXHAUST See Illustration MANIFOLD/ EM5722

13

5411656293

SEAL

14

5411663893

BOLT Was 5411663810 - A

15

5411663811

STUD

16

5411656451

SEAL

17

5411656427

NUT

18

5411657984

TURBOCHARGER See Illustration TURBOCHARGER/ EM5679

19

5411663461

GENERATOR See Illustration ALTERNATOR/ EM5725 W/Ref. 20-22, 24-25 & 52

20

5411663641

RING, SUPPORT

21

5411663640

RELAY, VOLTAGE

22

5411663638

FAN, ALT

23

5411663639

PULLEY, ENG

24

5411656994

NUT

25

5411656995

SPRING WASHER

26

7015337

STARTER See Illustration STARTER/ EM5740 W/Ref. 27 Was 5411664007 - A

27

7015333

RELAY Was 5411657136 - A

28

5411657086

FLYWHEEL See Illustration OIL PAN & FLYWHEEL HOUSING/ EM5654 W/Ref. 29

29

5411657087

GEAR

30

5411663653

MOUNT, ENG See Illustration ENGINE & ATTACHING PARTS/ EM5730 W/Ref. 33-34

31

5411657095

MOUNTING FOOT See Illustration ENGINE & ATTACHING PARTS/ EM5730 W/Ref. 33-34 Was 5411663061 - A

32

5411657094

MOUNTING FOOT See Illustration ENGINE & ATTACHING PARTS/ EM5730 W/Ref. 33-34 Was 5411663060 - A

33

5411663451

MOUNT, RUBBER

34

5411663452

COVER, MOUNT ENG

35

5411656919

BOLT

36

5411656897

HOSE CLIP

37

5411664420

INLET PIPE

38

5411664415

RUBBER SLEEVE

39

5411663813

CLIP, HOSE

40

5411664418

SUCTION PIPE See Illustration MANIFOLD/ EM5695

41

5411664419

SEAL

42

5411663048

BOLT

43

5411663323

RUBBER SLEEVE

44

5411657963

COOLING AIR BAFFLE

45

5411664286

BOLT

46

5411664312

FITTING COMPOUND

47

5411664052

CYLINDER HEAD GASKET A1.47/B1.51 See Illustration CYLINDER HEAD/ EM5666

48

5411664053

CYLINDER HEAD GASKET A1.57 B1.61

49

5411664054

CYLINDER HEAD GASKET A1.67 / B1.71

50

5411664050

BOLT See Illustration CYLINDER HEAD/ EM5666

51

5411664051

PIN ROLL

52

5411664287

GASKET SET voltage regulator

Выбрано товаров: 52
