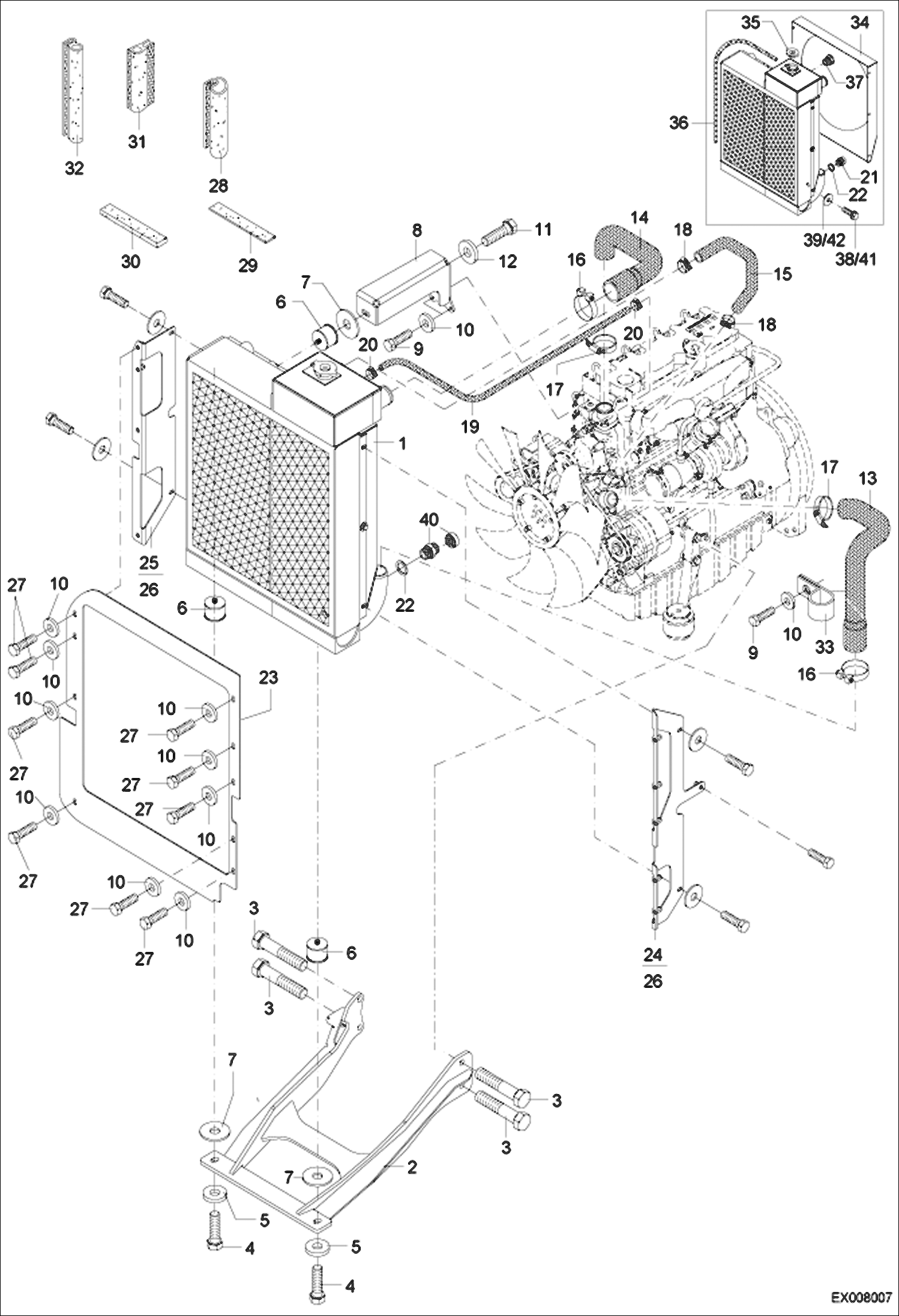

Запчасти Bobcat 442 COMBINED OIL COOLER (S/N ADBR11001 - 11168, ADBS11001 - 11168) POWER UNIT

1

5010672004

OIL COOLER W/Ref. 21-22 & 34-39

2

0283015055

BRACKET

3

1007707436

BOLT

4

1008707623

BOLT

5

1307707020

WASHER

6

5101290968

RUBBER BASE

7

1299707020

WASHER

8

6283015048

BRACKET

9

1008707018

BOLT

10

1343707057

WASHER

11

1008707423

BOLT

12

1343707059

WASHER

13

5210657425

HOSE

14

5210657426

HOSE

15

5210657427

HOSE

16

5603320370

HOSE CLIP

17

5660095305

HOSE CLIP

18

5660199200

HOSE CLIP

19

0283015044

HOSE

20

5603320320

HOSE CLIP

21

5010672038

SCREW PLUG Was 5366654555 - A

22

5527662003

SEAL RING Was 1636815857 - A

23

6283006044

COVER PLATE

24

6283006045

ANGLE PLATE

25

6283006046

ANGLE PLATE

26

1940707011

NUT

27

1008707318

BOLT

28

7025098

SEAL, BULK/MTR - A

29

5354640125

NEOPRENE STRIP sold per foot

30

5354640128

NEOPRENE STRIP sold per foot

31

5354255965

SEALING SECTION sold per foot

32

7023313

SEALING SECTION - A

33

5000210465

HOSE CLIP SCHELLE 52,4

34

5010672039

FAN SHROUD

35

5010672040

WATER JACKET LID

36

5010672041

HOSE

37

5010663079

GAUGE-GLASS

38

5010672042

BOLT M6X16

39

1307707014

WASHER

40

5366654588

DRAIN PLUG M14X1.5 OPTION option

41

1008707018

BOLT

42

1307707018

WASHER
