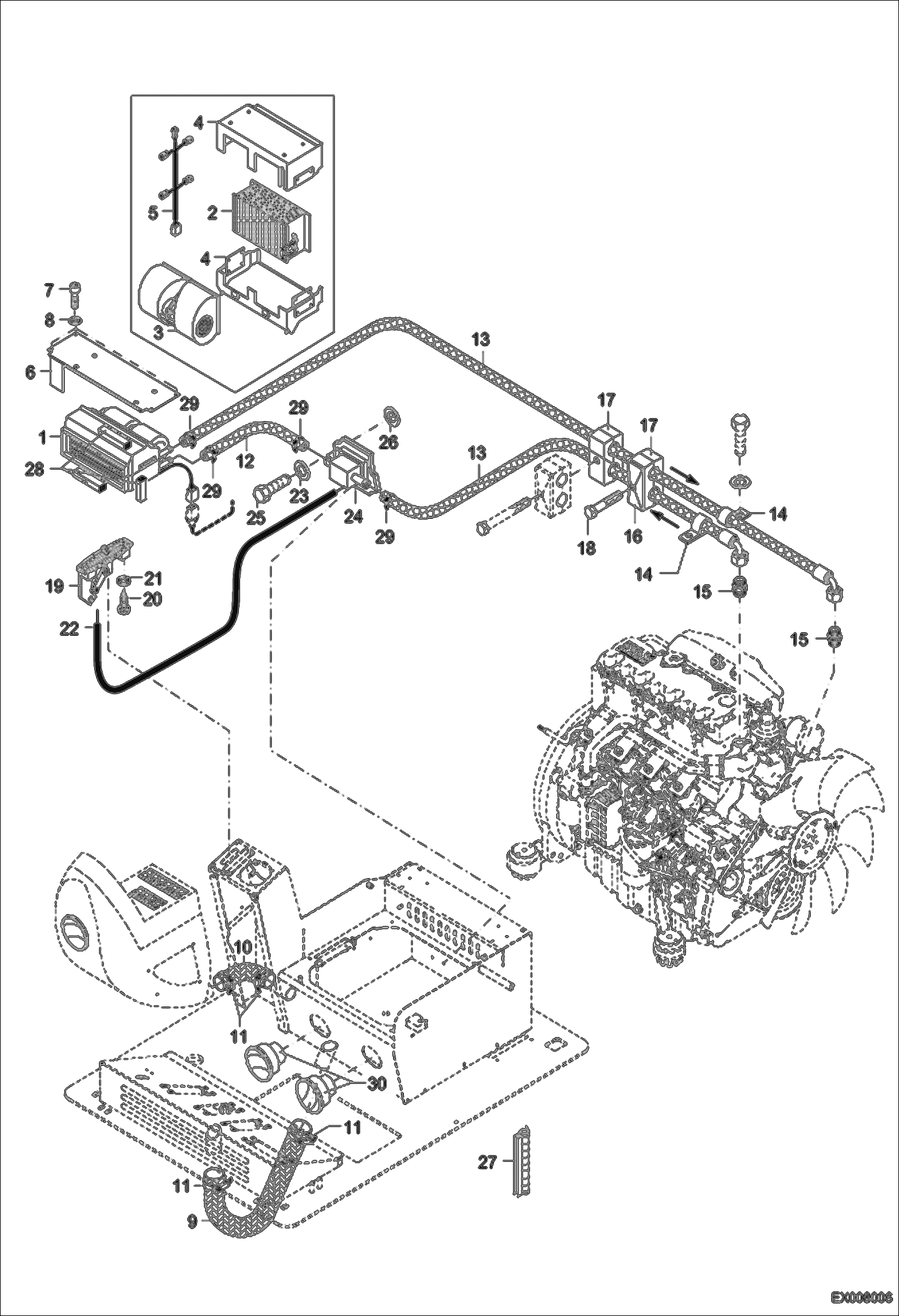

Запчасти Bobcat 442 HEATING POWER UNIT

1

5169010010

HEATING W/Ref. 2-5

2

5169100027

HEAT EXCHANGE

3

5169010007

FAN Was 5169100028 - A

4

5169010010

HEATING Was 5169100029 - A

5

5169100030

WIRE HARNESS

6

6190018004

COVER

7

1045707213

BOLT

8

1290707014

WASHER

9

5367628905

HOSE

10

7024567

HOSE, AIR - A

11

5660095300

HOSE CLIP

12

0234018210

HOSE, HEATER

13

0283018010

HOSE

14

5000210450

HOSE CLIP

15

1915060666

FITTING

16

5660200230

COVER PLATE

17

5660199783

CLIP

18

1007707319

BOLT

19

5388662385

REGULATOR

20

1090707742

SCREW

21

1307707012

WASHER

22

5388662389

BOWDEN CABLE

23

1290707012

WASHER

24

5388662602

HEATER VALVE

25

1008707909

BOLT

26

1343707057

WASHER

27

5354255965

SEALING SECTION sold per foot

28

5354640128

NEOPRENE STRIP sold per foot

29

5660200090

CLAMP

30

5688329382

NOZZLE
