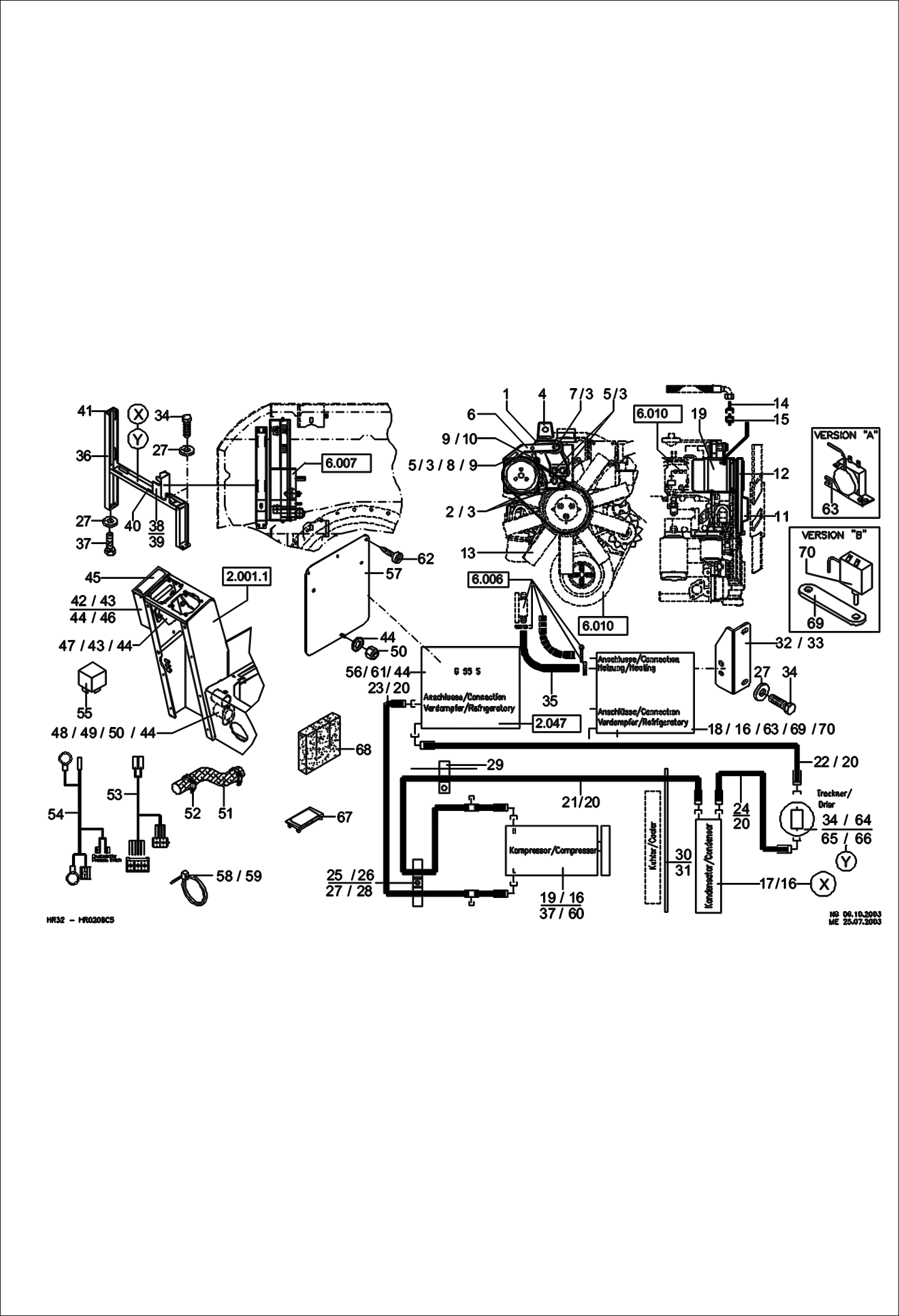

Запчасти Bobcat 442 AIR CONDITIONER - RETROFIT KIT FOR G55S MAIN FRAME

1

6190271020

BRACKET

2

1008707324

BOLT

3

1343707059

WASHER

4

6190271015

BRACKET

5

1008707424

BOLT

6

6190271010

LEVER

7

1008707923

BOLT

8

1290707020

WASHER

9

1212251013

NUT

10

1007707625

BOLT

11

5411661981

PULLEY

12

1490953883

V-BELT

13

5411661935

SUCTION FILTER

14

1934060170

FITTING

15

1915060567

FITTING

16

0190272250

AIR CONDITIONER W/Ref. 17,18,19,63-66 - Was 0190272050 - A

17

5436662001

CONDENSOR with drier

18

5436662002

HOUSING

19

5436662003

COMPRESSOR, A/C

20

0190272051

HOSE SET W/Ref. 21, 22, 23, 24

21

5436662012

HOSE

22

5436662011

HOSE

23

5436662013

HOSE

24

5436662010

HOSE

25

5000136820

HOSE CLIP

26

5000210400

HOSE CLIP

27

1343707057

WASHER

28

1007707719

BOLT

29

5000210450

HOSE CLIP

30

6190272009

PLATE

31

5354600010

RUBBER PROFILE

32

6190272015

BRACKET LEFT

33

6190272016

BRACKET RIGHT

34

1008707817

BOLT

35

0202518020

TUBE

36

6190272060

BRACKET SUPPORT

37

1008707318

BOLT

38

6190272012

BRACKET

39

7023313

SEALING SECTION - A

40

5354640128

NEOPRENE STRIP

41

5354640120

RUBBER

42

6190272025

VENT

43

1008707912

BOLT

44

1290707014

WASHER

45

5688329383

LOUVER

46

5354640125

NEOPRENE STRIP

47

6190272026

TUBE ASSY

48

6190272028

TUBE ASSY

49

1045707912

BOLT

50

1212251009

NUT

51

7024567

HOSE, AIR - A

52

5660095300

HOSE CLIP

53

0190272019

HARNESS

54

0190272020

HARNESS

55

5050247318

MICRO RELAY

56

5436662015

EVAPORATOR

57

6190371006

BRACKET

58

5653093560

BINDER

59

5350650280

BINDER

60

1212251011

NUT

61

1008707213

BOLT

62

1090707742

SCREW

63

5436662008

THERMOSTAT

64

5436662004

DRIER, A/C ASSY

65

5436662005

BRACKET

66

5436662006

PRESSURE SWITCH

67

5050650230

COVER

68

0190371010

INSULATION

69

5436662032

BRACKET

70

5436662008

THERMOSTAT
