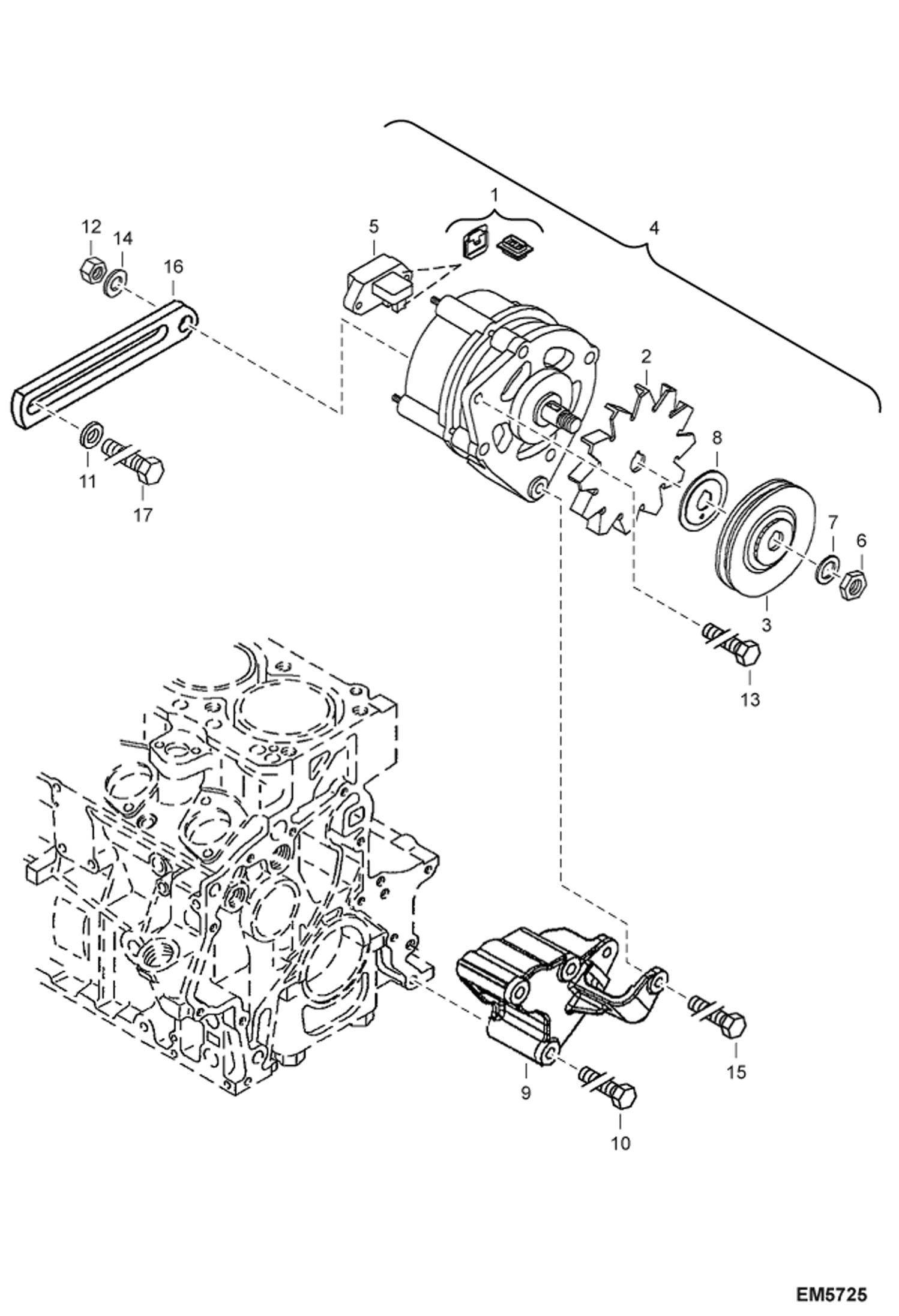

Запчасти Bobcat 442 ALTERNATOR ELECTRICAL SYSTEM

1

5411664287

GASKET SET

2

5411663638

FAN, ALT

3

5411663639

PULLEY, ENG

4

5411663461

GENERATOR See Illustration ENGINE PARTS II/ EM1946 W/Ref. 1-2 & 5-8

5

5411663640

RELAY, VOLTAGE

6

5411656994

NUT

7

5411656995

SPRING WASHER

8

5411663641

RING, SUPPORT

9

7013560

BRACKET

10

7013380

BOLT HEXAGON

11

7013428

WASHER PLAIN

12

7013344

NUT HEXAGON

13

7013376

BOLT HEXAGON

14

7013373

WASHER PLAIN

15

7013371

BOLT HEXAGON

16

6688212

BRACKET Was 7013446 - A

17

7013375

BOLT HEXAGON
