HYDRAULIC QUICK MOUNT HITCH HS08

Запчасти Bobcat 442 HYDRAULIC QUICK MOUNT HITCH HS08 ELECTRICAL SYSTEM

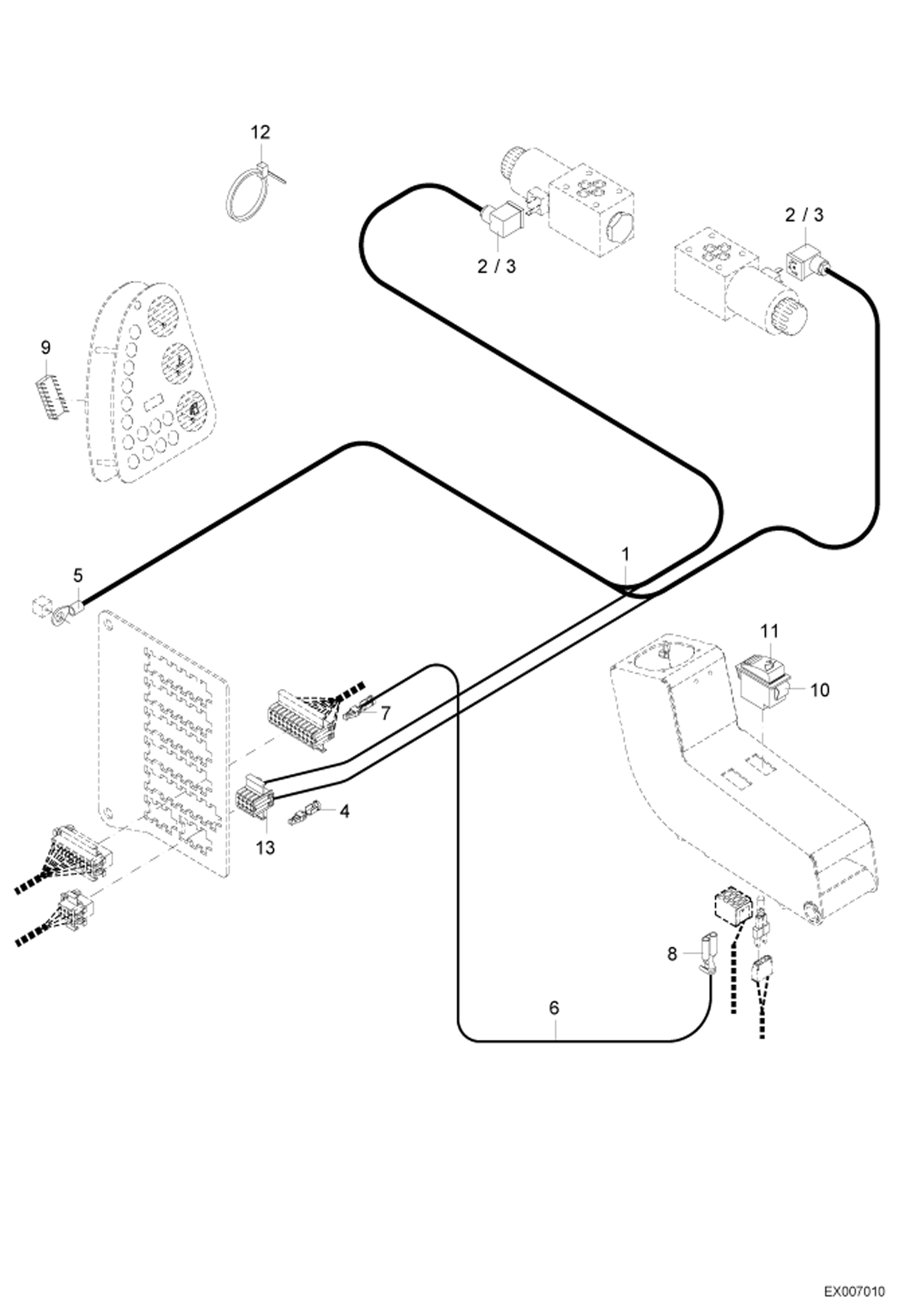

Схема запчастей Bobcat 442 - HYDRAULIC QUICK MOUNT HITCH HS08 ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0234221120

HARNESS, MOUNT QUICK W/Ref. 2-5

2

5552659550

BOX

3

5552659513

SEAL

4

5350249552

CONNECTOR

5

5350246610

CABLE CONNECTOR

6

0234221121

HARNESS, MOUNT QUICK W/Ref. 7-8

7

5350249552

CONNECTOR

8

5350246805

TERMINAL FEMALE

9

E-PROM Serial number required

10

5050651370

ROCKER SWITCH

11

5358650288

SYMBOL

12

5653093560

BINDER

13

5350249684

CONNECTOR 8-positions
