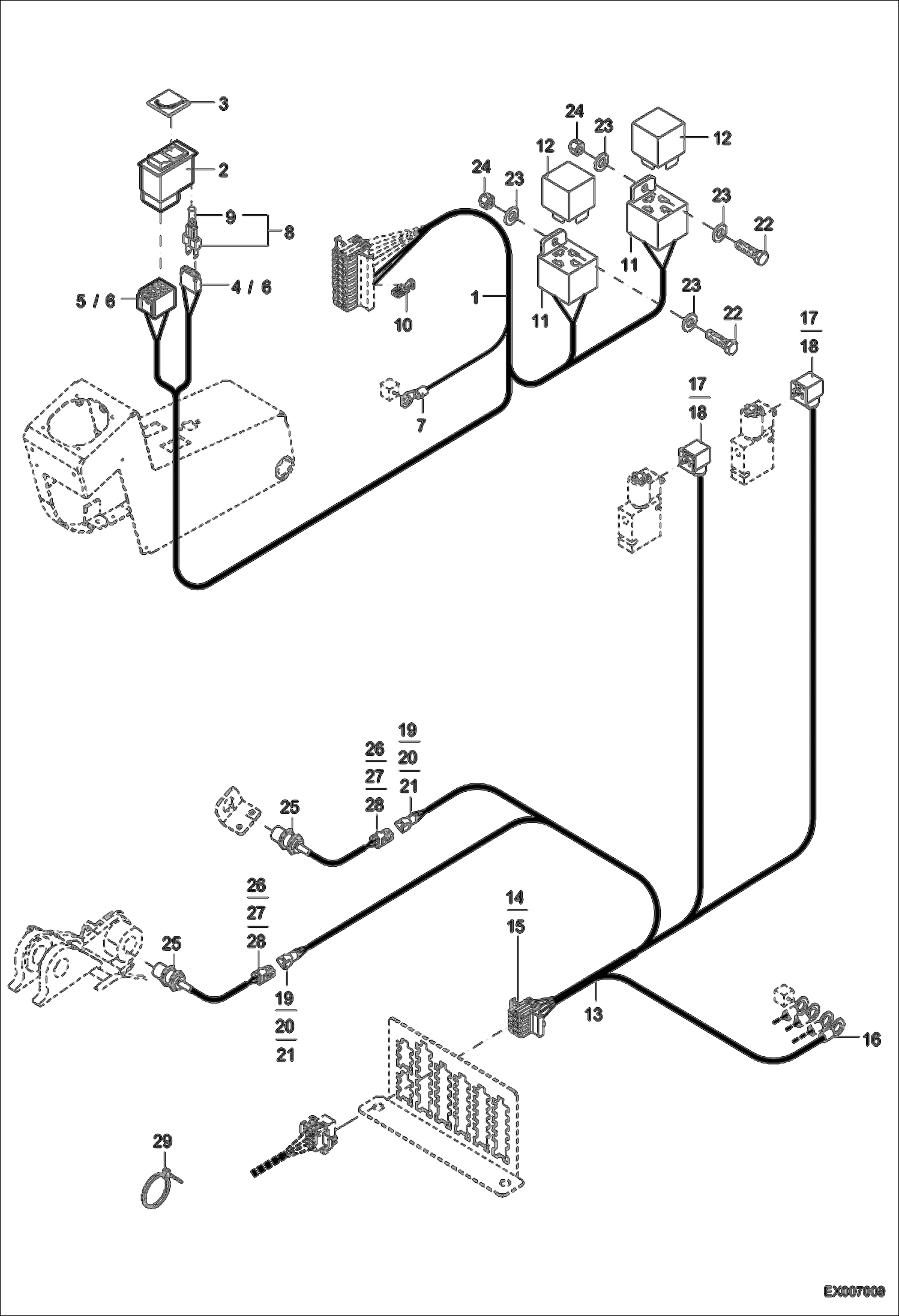

Запчасти Bobcat 442 BOOM HEIGHT LIMITATION ELECTRICAL SYSTEM

1

0234241030

WIRE HARNESS W/Ref. 2-12

2

5050651363

ROCKER SWITCH

3

5358650266

SYMBOL boom height limitation

4

5050650231

HOUSING

5

5050650225

HOUSING

6

5350246805

TERMINAL FEMALE

7

5350246610

CABLE CONNECTOR

8

5050650226

LAMP

9

1813000021

ROUND BULB

10

5350249552

CONNECTOR

11

5050093090

RELAY BRACKET

12

5050247335

RELAY

13

0234241031

WIRE HARNESS W/Ref. 15-21

14

5350249684

CONNECTOR 8-positions

15

5350249552

CONNECTOR

16

5350249597

CABLE CONNECTOR

17

5552659550

BOX W/Ref. 18

18

5552659513

SEAL

19

5350555317

HOUSING (FEMALE)

20

5350555308

LOCK

21

5350555325

FEMALE TERMINAL

22

1008707609

BOLT

23

1290707012

WASHER

24

1212251007

NUT

25

5350639017

SWITCH

26

5350555315

HOUSING (MALE)

27

5350555307

LOCK

28

5350555321

MALE TERMINAL

29

5653093560

BINDER
