AIR CONDITIONER 5223 11649 & Below

Запчасти Bobcat 442 AIR CONDITIONER 5223 11649 & Below MAIN FRAME

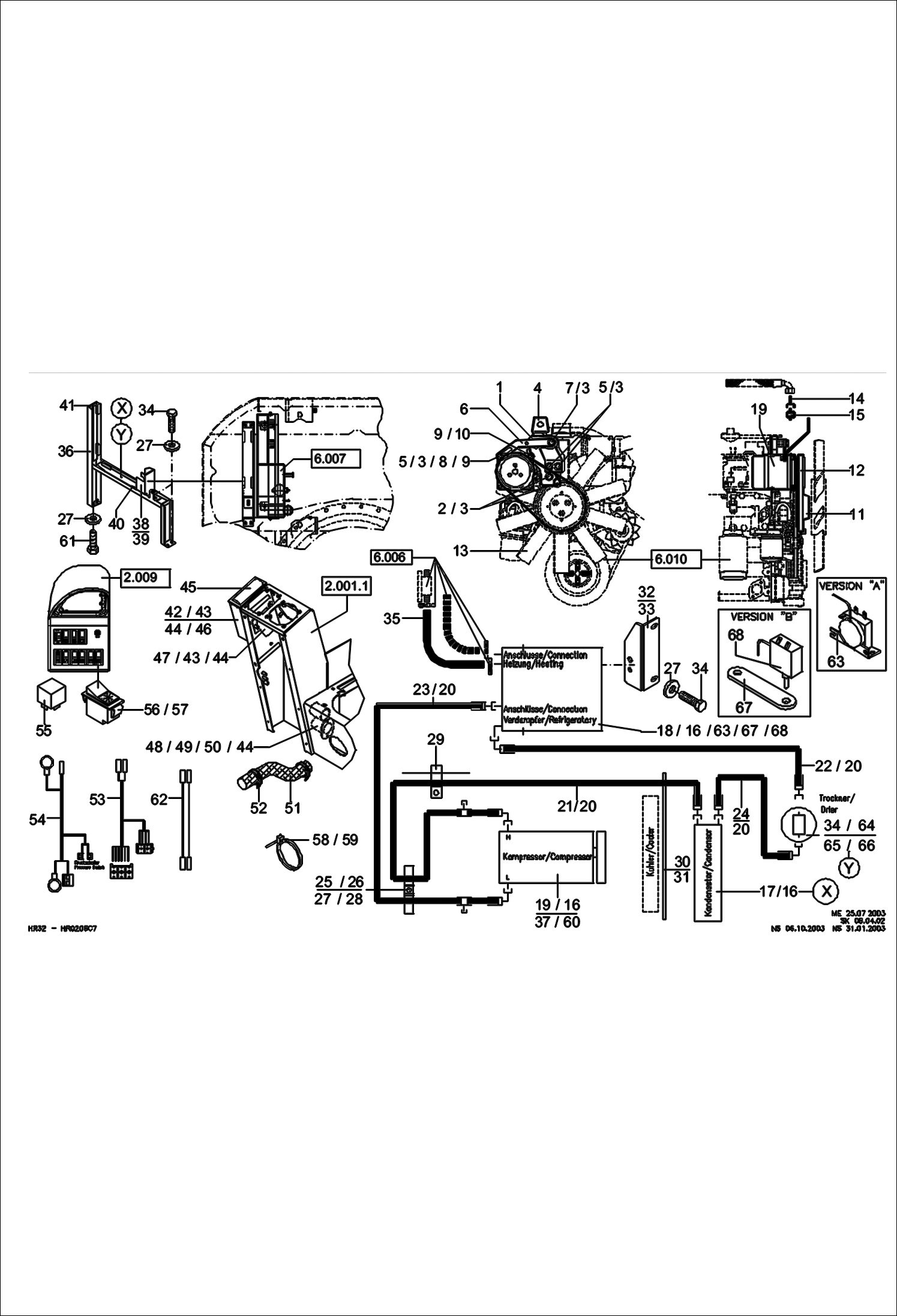

Схема запчастей Bobcat 442 - AIR CONDITIONER 5223 11649 & Below MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6190271020

BRACKET

2

1008707324

BOLT

3

1343707059

WASHER

4

6190271015

BRACKET

5

1008707424

BOLT

6

6190271010

LEVER

7

1008707923

BOLT

8

1290707020

WASHER

9

1212251013

NUT

10

1007707625

BOLT

11

5411661981

PULLEY

12

1490953883

V-BELT

13

5411661935

SUCTION FILTER

14

1934060170

FITTING Was 1915060161 - A

15

1915060567

FITTING Was 1915060858 - A

16

0190272250

AIR CONDITIONER Includes 17, 18, 19, 63, 64 & 66 - Was 0190272050 - A

17

5436662001

CONDENSOR

18

5436662002

HOUSING

19

5436662003

COMPRESSOR, A/C

20

KIT NLA - Includes Refs. 21, 22, 23 & 24

21

5436662012

HOSE

22

5436662011

HOSE

23

5436662013

HOSE Uses 5426662098 O-rings

24

5436662010

HOSE

25

5000136800

HOSE CLIP

26

5000136820

HOSE CLIP

27

1343707057

WASHER

28

1007707519

BOLT

29

5000210420

HOSE CLIP

30

6190272009

PLATE

31

5354600010

RUBBER PROFILE

32

6190272015

BRACKET LEFT

33

6190272016

BRACKET RIGHT

34

1008707817

BOLT

35

0202518020

TUBE

36

6190272014

BRACKET

37

1008707318

BOLT Was 1008707018 - A

38

6190272012

BRACKET

39

7023313

SEALING SECTION - A

40

5354640128

NEOPRENE STRIP Bulk - Sold Per Meter

41

5354640120

RUBBER Bulk - Sold Per Meter

42

6190272025

VENT

43

1008707912

BOLT

44

1290707014

WASHER

45

5688329383

LOUVER

46

5354640125

NEOPRENE STRIP

47

6190272026

TUBE ASSY

48

6190272028

TUBE ASSY

49

1045707912

BOLT

50

1212251009

NUT

51

7024567

HOSE, AIR - A

52

5660095300

HOSE CLIP

53

0190272019

HARNESS

54

0190272020

HARNESS

55

5050247318

MICRO RELAY

56

5050651363

ROCKER SWITCH

57

5358650383

DECAL SYMBOL

58

5653093560

BINDER

59

5350650280

BINDER

60

1212251011

NUT

61

1008707018

BOLT

62

0190272018

WIRE HARNESS

63

5436662007

THERMOSTAT Old Version

63

5436662008

THERMOSTAT New Version

64

5436662004

DRIER, A/C ASSY

65

5436662005

BRACKET

66

5436662006

PRESSURE SWITCH

67

5436662032

BRACKET

68

5436662008

THERMOSTAT
