Запчасти Bobcat 442 DASH CONSOLE ELECTRICAL SYSTEM

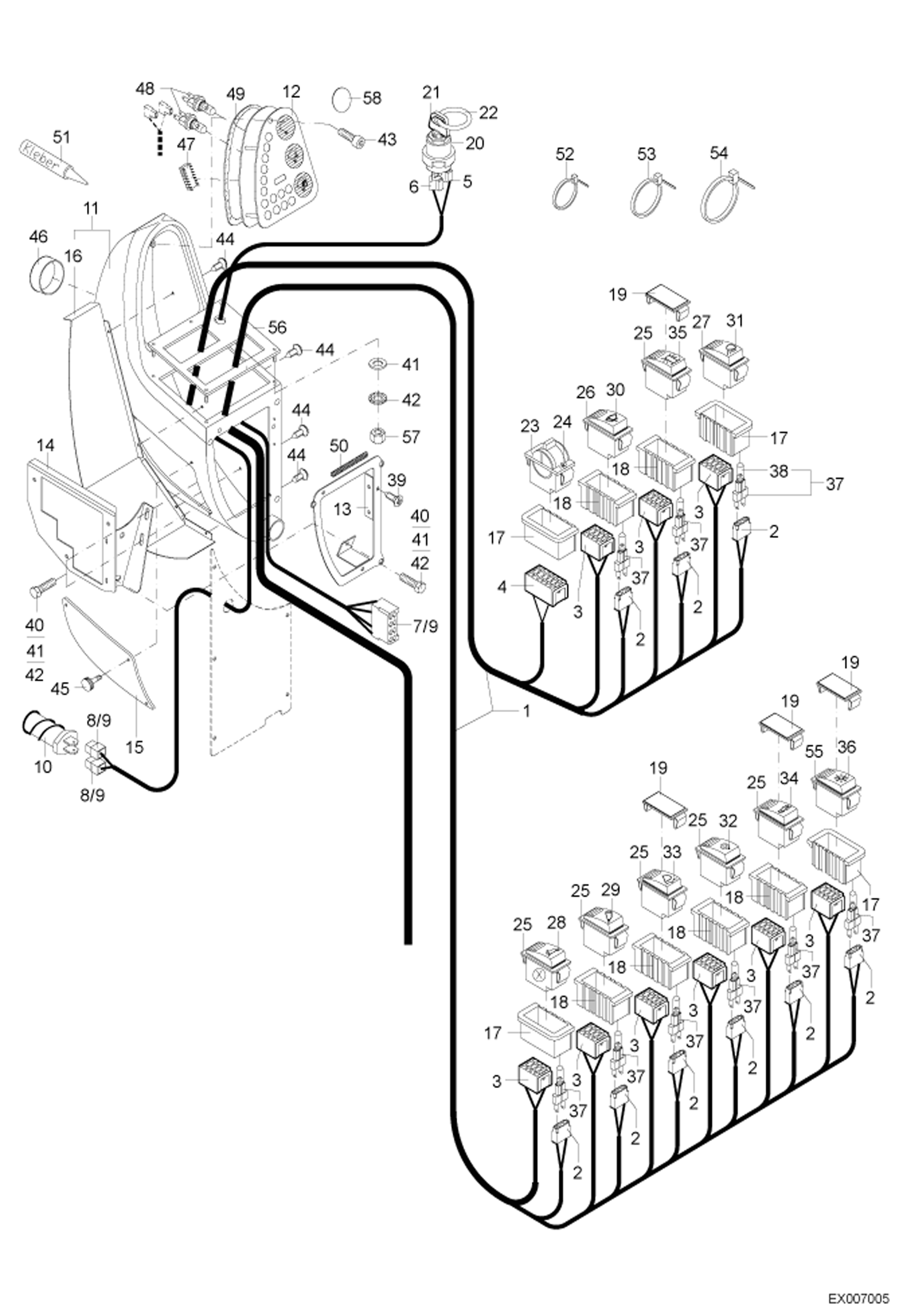

Схема запчастей Bobcat 442 - DASH CONSOLE ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

5821661133

HARNESS CONSOLE W/Ref. 2-9

2

5050650231

HOUSING

3

5050650225

HOUSING

4

5050650287

PLUG

5

5050650261

PLUG 4-positions

6

5050650262

PLUG 6-positions

7

5350249505

HOUSING 8-positions

8

5350249536

HOUSING

9

5350246805

TERMINAL FEMALE

10

5050076420

CIGARETTE LIGHTER

11

5821662100

HOUSING W/Ref. 16

12

7023525

PANEL, DASH W/ O E-Prom - Was 5821661076

13

5821662242

BRACKET

14

5821662245

BRACKET

15

5821662136

COVER

16

5821662104

AIR BAFFLE

17

5050650233

FRAME (END PIECE)

18

5050650232

FRAME (INTERMED. PIECE)

19

5050650230

COVER

20

5050655525

IGNITION LOCK W/Ref. 21

21

5050650256

KEY, IGN

22

1557909026

RING

23

5050650311

SWITCH

24

5050650313

SYMBOL fan

25

5050651363

ROCKER SWITCH

26

5050651338

SWITCH

27

5050651333

SWITCH TOGGLE

28

5358650341

SYMBOL DECAL travel speed

29

5358650269

SYMBOL DECAL rock breaker

30

5821662110

SYMBOL DECAL wiper

31

5358650296

SYMBOL working light

32

5821662112

SYMBOL DECAL overload warning

33

5358650281

SYMBOL float position - option

34

5358650337

SYMBOL ''HORN RUECK horn reverse - option

35

5358650237

SYMBOL OCC. LIGHT rotatingbeacon light - option

36

5358650383

DECAL SYMBOL air conditioner - option

37

5050650226

LAMP W/Ref. 38

38

1813000021

ROUND BULB

39

5821662123

SCREW

40

1008707609

BOLT

41

5821662126

WASHER

42

5821662127

CROWN GEAR

43

1045707510

SCREW

44

5821662129

SCREW

45

5821662038

KNURLED BOLT

46

5821662130

MOZZLE

47

E-PROM Serial number required

48

5755656003

KIT BULB & SOCKET

49

5821662131

SEAL

50

5821662132

SEAL

51

5821662137

GLUE KIT

52

5350650294

BINDER

53

5653093560

BINDER

54

5350650280

BINDER

55

5050651384

SWITCH INTERRUPTER

56

5821662263

BRACKET

57

5821662264

NUT

58

5358609694

COVER, PANEL DISPLAY option

Выбрано товаров: 58
