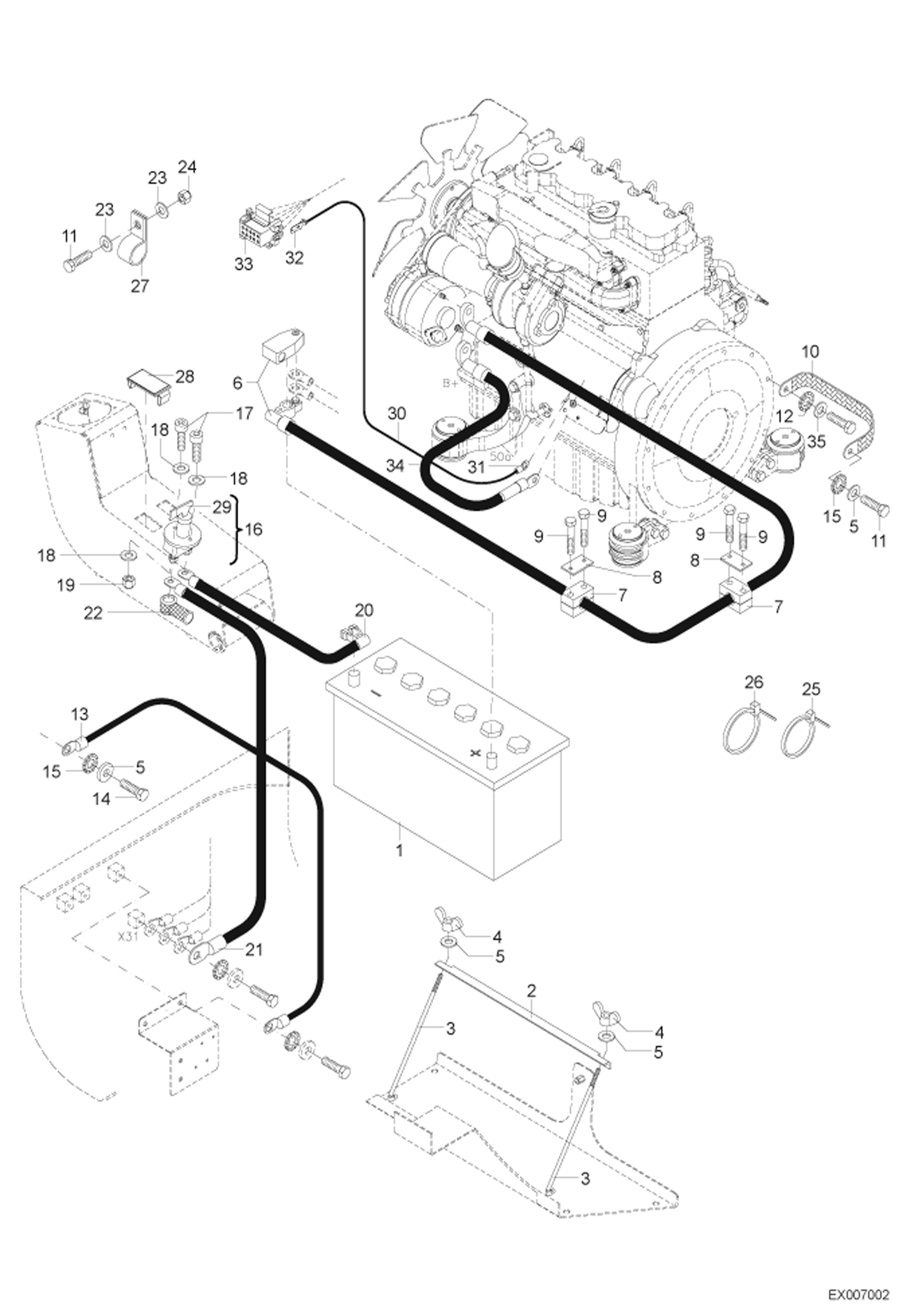

Запчасти Bobcat 442 UPPERCARRIAGE ELECTRIC INSTALLATION ELECTRICAL SYSTEM

1

5159650932

BATTERY

2

0331411006

ANGLE Was 6331411006 - A

3

0331411005

STUD

4

1245707011

WING NUT

5

1343707057

WASHER

6

0234007034

BATTERY CABLE positive

7

5660199615

HOSE CLIP

8

5660200122

COVER PLATE

9

1007707813

BOLT

10

5653246930

EARTH CABLE 300mm

11

1008707018

BOLT

12

1327707022

TOOTHED LOCK WASHER

13

0073657067

CABLE, GROUND 500mm

14

1008707817

BOLT

15

1327707018

TOOTHED LOCK WASHER

16

5522655660

SWITCH INTERRUPTER W/Ref. 29

17

1045707213

BOLT

18

1290707014

WASHER

19

1212251009

NUT

20

0190007135

BATTERY CABLE negative

21

0190007136

CABLE, GROUND

22

5050580450

RUBBER

23

1290707018

WASHER

24

1212251011

NUT

25

5653093560

BINDER

26

5350650280

BINDER

27

5000136800

HOSE CLIP

28

5050650230

COVER

29

5522655651

KEY INTERRUPTER

30

0283007080

WIRE HARNESS ENGINE W/Ref. 31-32

31

5350246820

CABLE CONNECTOR

32

5350249695

MAL TERMINAL

33

5350249691

CONNECTOR MALE 10-positions

34

0234015065

CABLE

34

0283015065

CABLE 25QMMX1000MM

35

1290707020

WASHER
