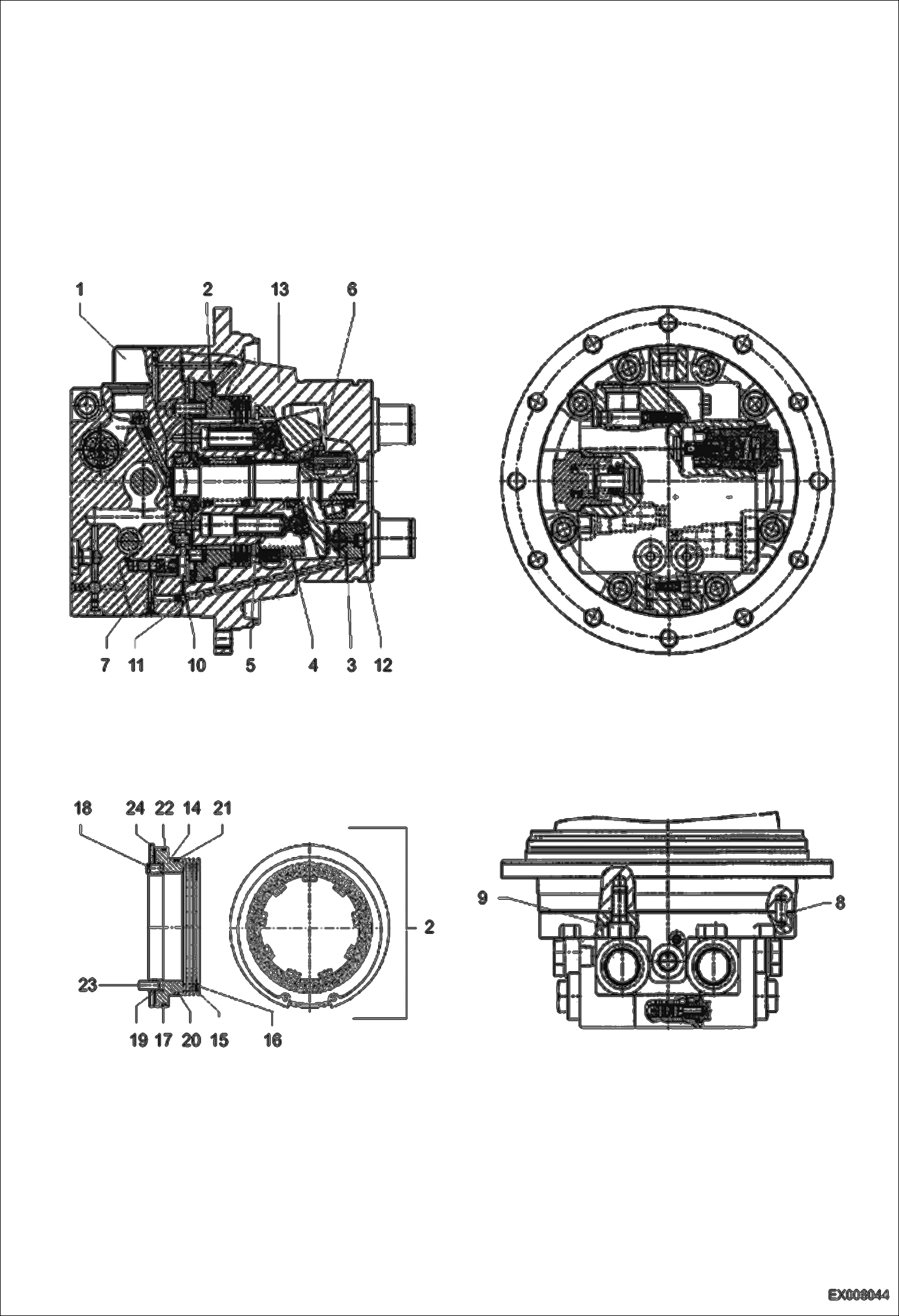

Запчасти Bobcat 442 TRAVEL GEAR HYDRAULIC SYSTEM

1

5364800128

CONNECTION PLATE 300BAR Was 5364663523 - A

2

5364800129

PRESSURE RING ITEM 15-25 W/Ref. 14-24 Was 5364663097 - A

3

5364800130

SERVO PISTON Was 5364663387 - A

4

5364800131

BALANCE STOP Was 1455622982 - A

5

5364800127

DRIVING GEAR Was 5364663377 - A

6

5364800132

ROTATING BALL Was 5364663379 - A

7

1381000730

PIN

8

1371450930

PIN

9

1045707529

BOLT

10

5364800133

O-RING 158.42X2.62 Was 5364663092 - A

11

5364800134

SEAL RING 7.65X1.68 Was 5364663091 - A

12

5364800135

PRESSURE SPRING Was 5364663380 - A

13

5364663381

AXLE

14

5364663382

PRESS RING

15

5364663522

DISK

16

5364663098

OUTER RING

17

5364663101

BACK UP RING

18

5364663383

PRESS SPRING

19

5364663384

GUIDE RING

20

5364663100

BACK UP RING

21

5364663385

SEAL SQUARE CUT

22

5364663386

SEAL SQUARE CUT

23

1371450930

PIN

24

1456622982

CIRCLIP 155X4
