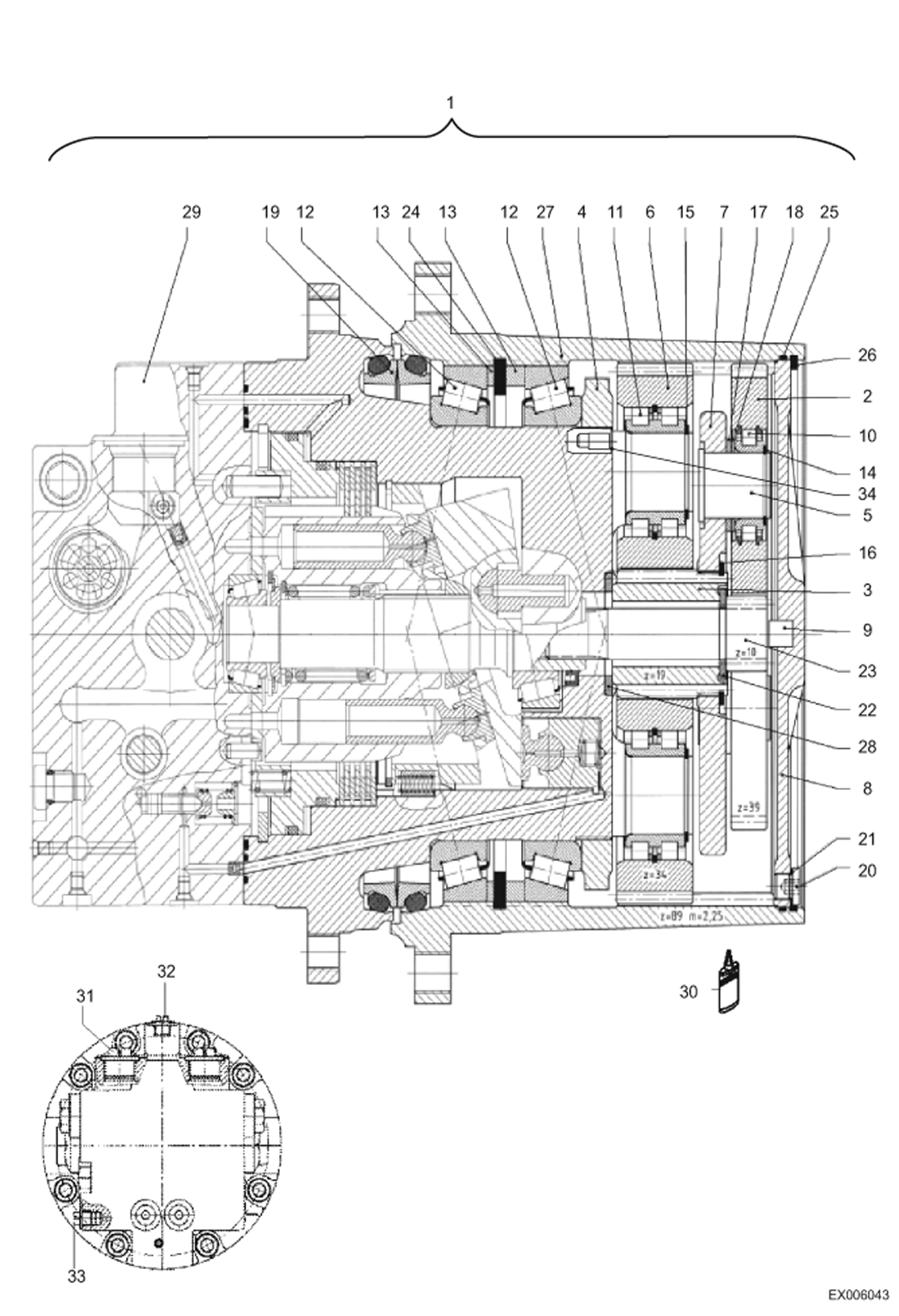

Запчасти Bobcat 442 TRAVEL DRIVE HYDRAULIC SYSTEM

1

5459660217

MOTOR, DRIVE HYD travel - W/Ref. 2-34 - Was 5999991227 - D

2

5459661101

PLANETARY WHEEL

3

5459661102

SUN WHEEL

4

5459661103

SHAFT NUT

5

5459661104

PIN

6

5459661100

PLANETARY GEAR

7

5459661105

PLANETARY NOSE

8

5459661106

COVER

9

5459661107

CYLINDER ROLL

10

5459661076

BEARING

11

5459661095

BEARING

12

5459661216

TAPER ROLLER BEARING Was 5459661081 - A

13

5459661214

INTERMEDIATE RING Was 5459661114 - D

14

1455622927

CIRCLIP

15

1455622233

CIRCLIP

16

1455622349

CIRCLIP

17

1309412824

SHIM

18

1309412119

ADJ WASHER

19

5459661093

FLOATING SEAL

20

1148201413

PLUG

21

1636815229

SEAL

22

5459661112

MODULATED WASHER

23

SUN WHEEL SHAFT NLA - Was 5459661113 - A

24

5459661111

SNAP RING

25

5459661096

O-RING

26

5459661094

SNAP RING

27

5459661213

RING GEAR Was 5459661109 - A

28

5459661108

DISK CASE

29

5459661215

HYDRAULIC MOTOR Was 5459660217 - A

30

MCS001036A

GLUE

31

5459661217

BOLT M27X2

32

5459661218

BOLT M14X1,5

33

5459661219

BOLT M12X1,5

34

5459661220

PIN
