Запчасти Bobcat 442 OPERATORS SEAT - SUSPENSION MSG95 MAIN FRAME

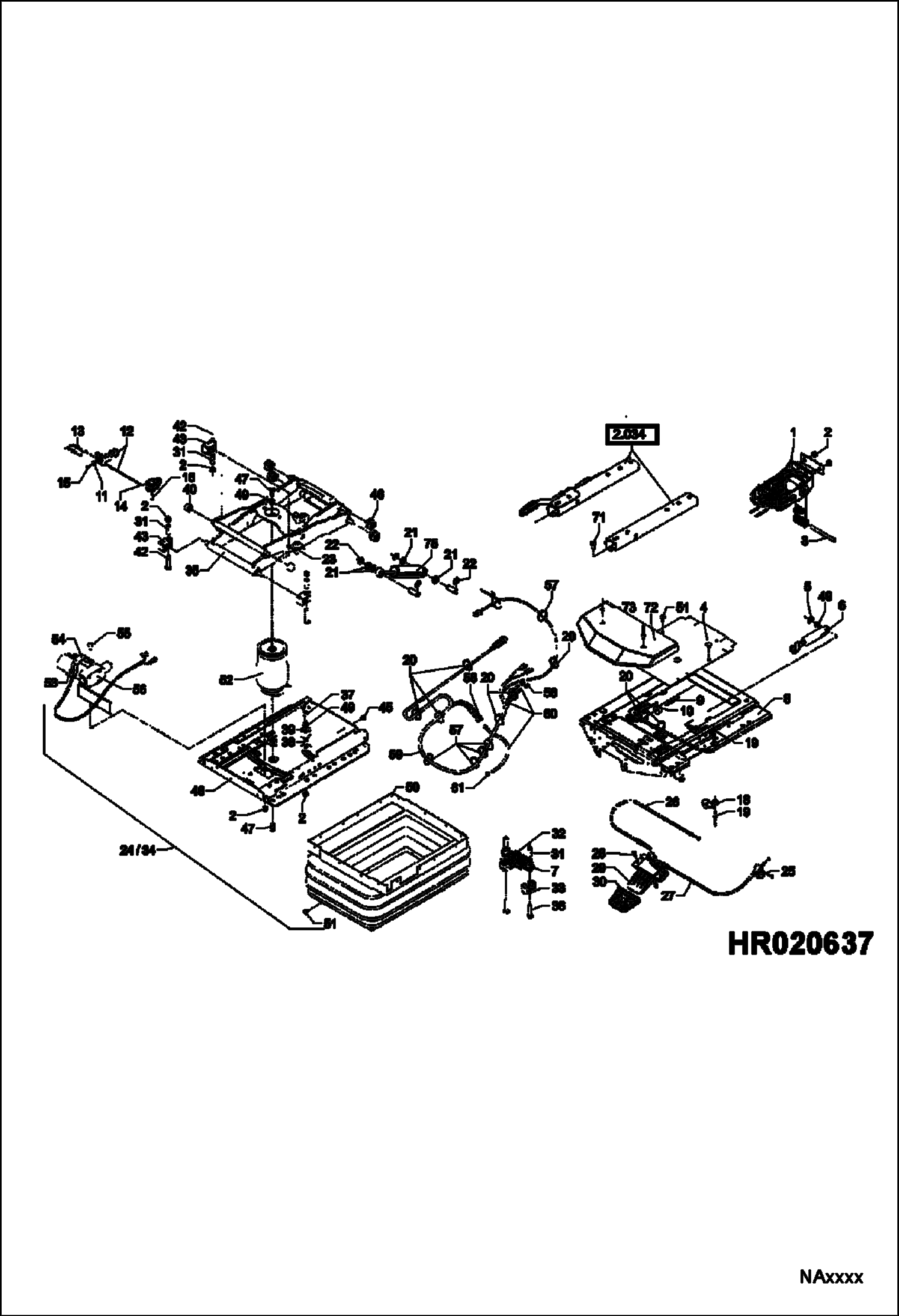

Схема запчастей Bobcat 442 - OPERATORS SEAT - SUSPENSION MSG95 MAIN FRAME

Артикул

Название

Примечание

Количество

1

5305670045

LEVEL CONTROL W/Ref. 2, 3, 15, 20, 25, 45, 51, 57, 58

2

5305655472

NUT

3

5305670160

PIN

4

5305670046

COVER

5

5305670228

WASHER

6

5305670047

GAS PRESSURE SPRING W/Ref. 5, 49, 51

7

5305670048

BUSHING

8

5305670049

BRACKET ASSY SEAT W/Ref. 2, 10, 12, 19, 40, 46, 51

9

5305670161

RIVET

10

5305670050

BUMPER CPL W/Ref. 9

11

5305670209

WASHER

12

5305670162

STOP DEVICE CPL W/Ref. 11, 13, 14, 15, 51

13

5305670163

TENSION SPRING

14

5305670164

HANDLE CPL W/Ref. 16

15

5305670227

BOLT

16

5305670166

BOLT

18

5305670167

STOP CPL W/Ref. 19, 51

19

5305670168

RIVET

20

5305670203

TIE STRAP

21

5305670169

WASHER

22

5305670131

WASHER

23

5305670029

STOP

24

5305670224

WEAR PARTS SET

25

5305670053

BRACKET

26

5305670054

BOWDEN CABLE W/Ref. 28, 51

27

5305670055

CABLE ASSY W/Ref. 15, 25, 28, 51

28

5305670026

BOLT

29

5305670056

CONTROL UNIT W/Ref. 28, 30, 51

30

5305670057

HANDLE

31

5305670171

PIPE

32

5305670058

SPRING ASSY W/Ref. 7, 10, 19, 31, 33, 36, 51

33

5305670059

BUMPER

34

5305670225

SUSPENSION

35

5305670226

ROCKER CPL W/Ref. 2, 19, 20, 23, 31, 40, 43, 46, 47, 49, 51, 55, 57

36

1008707818

BOLT

37

1008707018

BOLT

38

5305670098

BUSHING

39

5305670229

BUMPER CPL W/Ref. 2, 37, 38, 49, 51

40

5305670230

ROLLER

42

5305670174

PIN

43

5305670175

BEARING

45

5305670176

BOLT

46

5305670062

TRACK ROLLER

47

5305670177

BOLT

48

5305670178

SEAT BOTTOM ASSY W/Ref. 2, 20, 39, 43, 45, 46, 47, 51, 55

49

5305670200

WASHER

50

5305670063

COVERING W/Ref. 51

51

5305655425

PLUG

52

5305670064

GAS STRUT W/Ref. 47, 49, 51, 58, 61

53

5305670179

RUBBER PAD

54

5305670180

BOW

55

1045707517

BOLT

56

5305670073

COMPRESSOR W/Ref. 20, 2, 51, 53, 54, 55, 57, 61

57

5305670232

BINDER

58

5305670066

BUSHING

59

5305670067

CABLE W/Ref. 20, 51, 57

60

5305670068

HOSE ASSY W/Ref. 20, 51, 57, 58, 61

61

5305670069

HOSE CLIP

71

5305670234

BOLT

72

5305670181

COVER W/Ref. 73

73

5305670182

RIVET

75

5305670070

GAS STRUT W/Ref. 21, 22, 51

Выбрано товаров: 62
