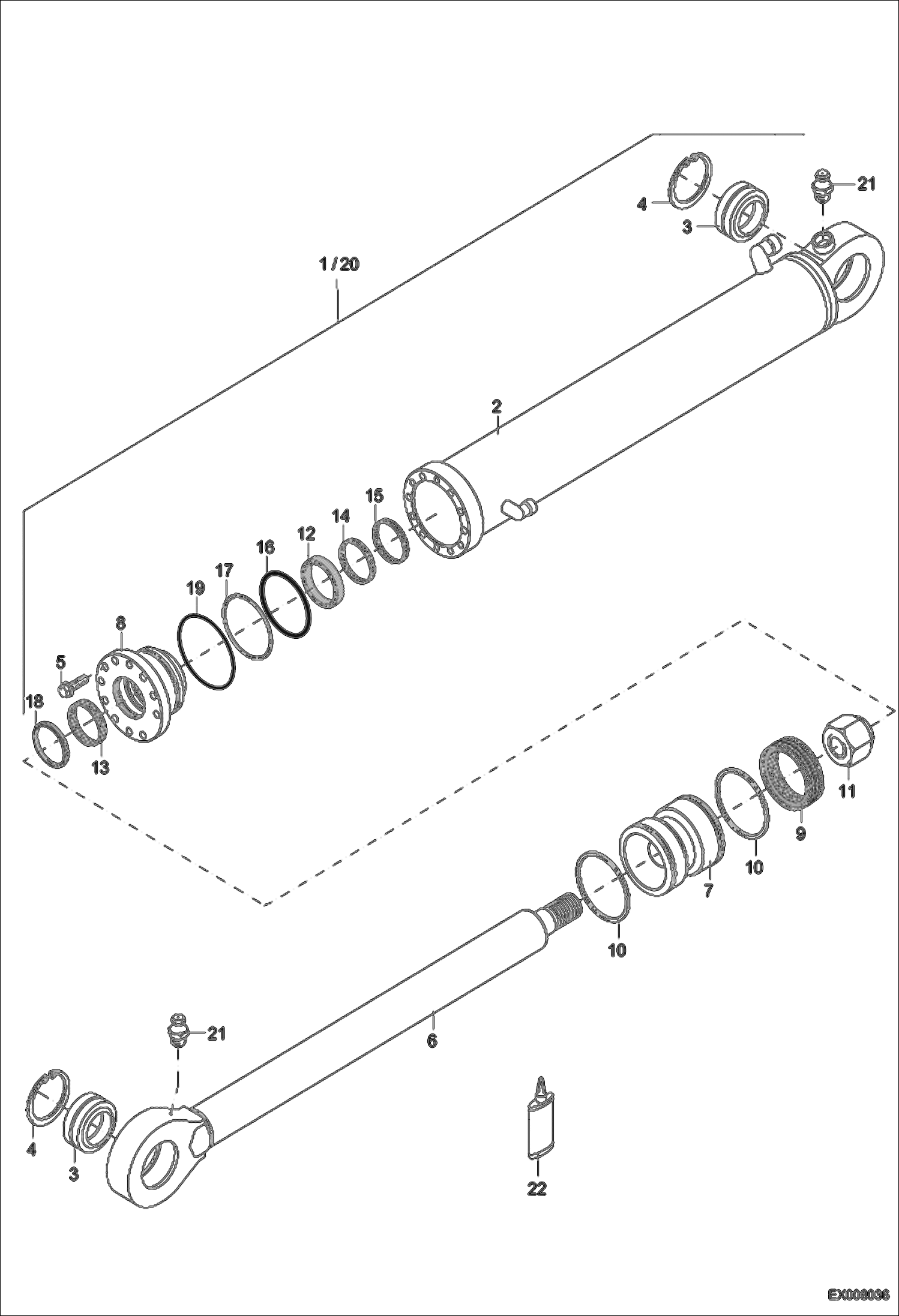

Запчасти Bobcat 442 DIPPERARM HYDRAULIC CYLINDER HYDRAULIC SYSTEM

1

6501244500

CYLINDER, ARM DIPPER W/Ref. 2-19

2

TUBE, CYL DIPPER ARM NLA - Order 7022160, Also Includes 6501244703 cylinder pipe, 1915060576 screwed socket, 1915060577 straight fitting and 6501244503 cylinder tube - Was 6501244503 - A

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6501244011

PISTON ROD

7

0501244015

PISTON

8

0501229017

PIERCING BUSHING

9

1634935021

PISTON SEAL

10

5074609200

SEGMENT

11

1212251836

NUT

12

1965956785

SEAL

13

5060507070

GUIDING RING

14

5060503070

GUIDING RING

15

5060502070

GUIDING RING

16

1971958523

O-RING

17

1966960111

BACK UP RING

18

1974955070

SCRAPER RING

19

1971958420

O-RING

20

1976999603

SEAL KIT

21

1607003006

GREASE NIPPLE

22

MCS001036A

GLUE
