Запчасти Bobcat 442 PILOT-OPERATED VALVE - SO-BLOCK HYDRAULIC SYSTEM

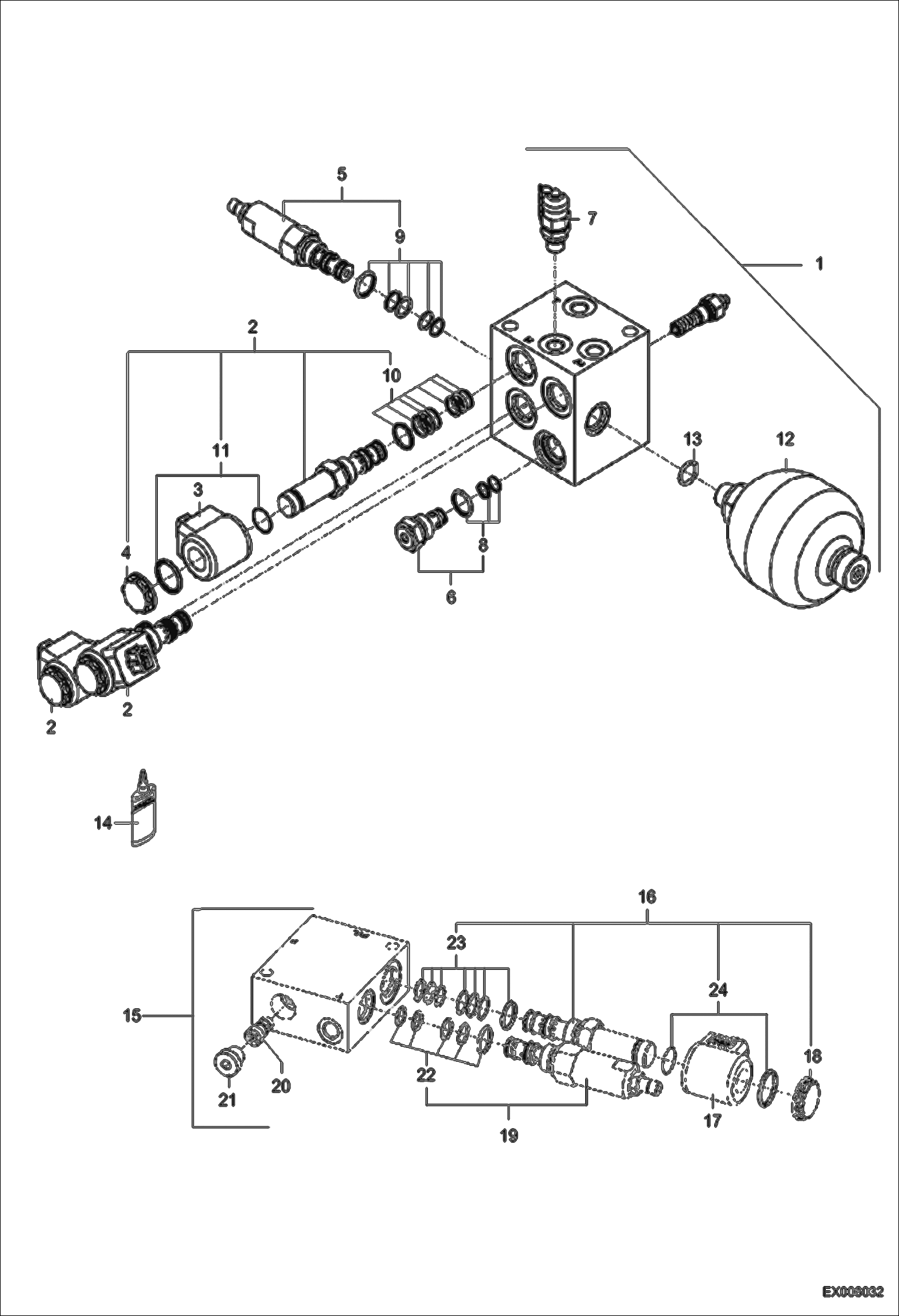

Схема запчастей Bobcat 442 - PILOT-OPERATED VALVE - SO-BLOCK HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5368632563

VALVE ASSEMBLY W/Ref. 2-13

2

5368655678

SOLENOID ASSY

3

5368655687

COIL

4

5368655692

NUT

5

5368655693

CHECK VALVE

6

5368655694

PRESS RELIEF VALVE

7

5066234000

TEST FITTING

8

5368655695

SEAL KIT check valve

9

5368655696

SEAL KIT pressure reducing valve

10

5368655697

SEAL KIT solenoid valve

11

5368655698

SEAL KIT solenoid

12

5368655699

ACCUMULATOR

13

5368655700

O-RING

14

MCS001036A

GLUE

15

5368632565

VALVE ASSEMBLY W/Ref. 14-22

16

5368655688

SOLENOID ASMBLY

17

5368655687

COIL

18

5368655692

NUT

19

5368655701

FLOW REGULATOR

20

5368655702

SPOOL

21

5368655703

PLUG

22

5368655696

SEAL KIT pressure reducing valve

23

5368655697

SEAL KIT solenoid valve

24

5368655698

SEAL KIT solenoid

Выбрано товаров: 24
