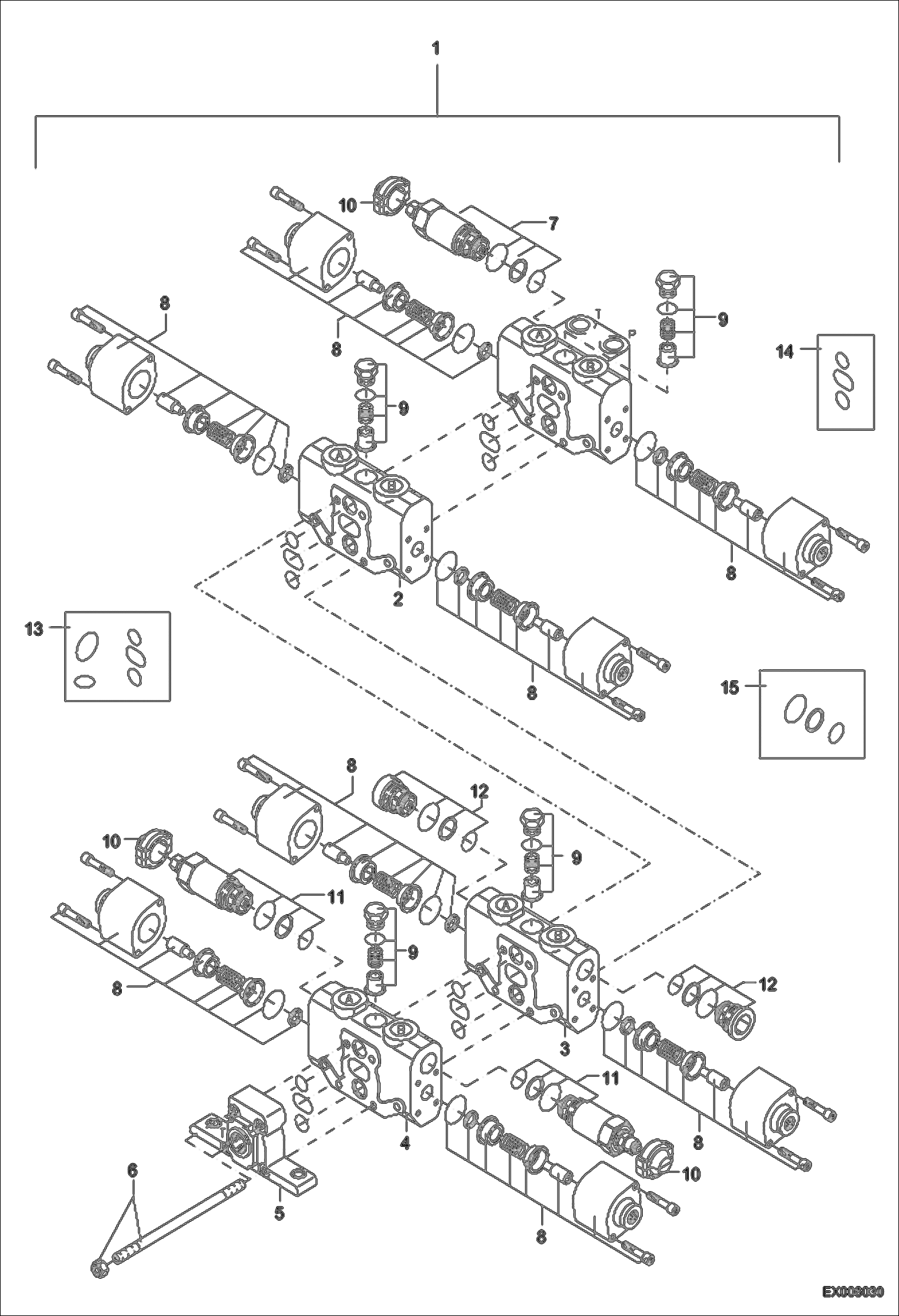

Запчасти Bobcat 442 VALVE BANK (4SM12) HYDRAULIC SYSTEM

1

5606660454

VALVE ASSY W/Ref. 2-12

2

5606664178

DIRECTIONAL VALVE W/Ref. 9-10

3

5606664273

DIRECTIONAL VALVE W/Ref. 9-10 & 13

4

5606664301

DIRECTIONAL VALVE ELEMT +ITEM 9-12 W/Ref. 9-12 Was 5606664304 - D

5

5606664373

OUTLET VALVE

6

5606664268

TIE ROD KIT

7

5606664224

PRESSURE RELIEF VALVE

8

5606664182

HYD. OPERATION KIT

9

5606656636

VALVE

10

5606664184

LOCKING COVER

11

5606664224

PRESSURE RELIEF VALVE

12

5606656717

ANTI-CAV VALVE

13

5606656639

SET OF SEALS

14

5606656908

SEAL KIT

15

5606664223

SEAL KIT
