VALVE BANK (3SM12)

Запчасти Bobcat 442 VALVE BANK (3SM12) HYDRAULIC SYSTEM

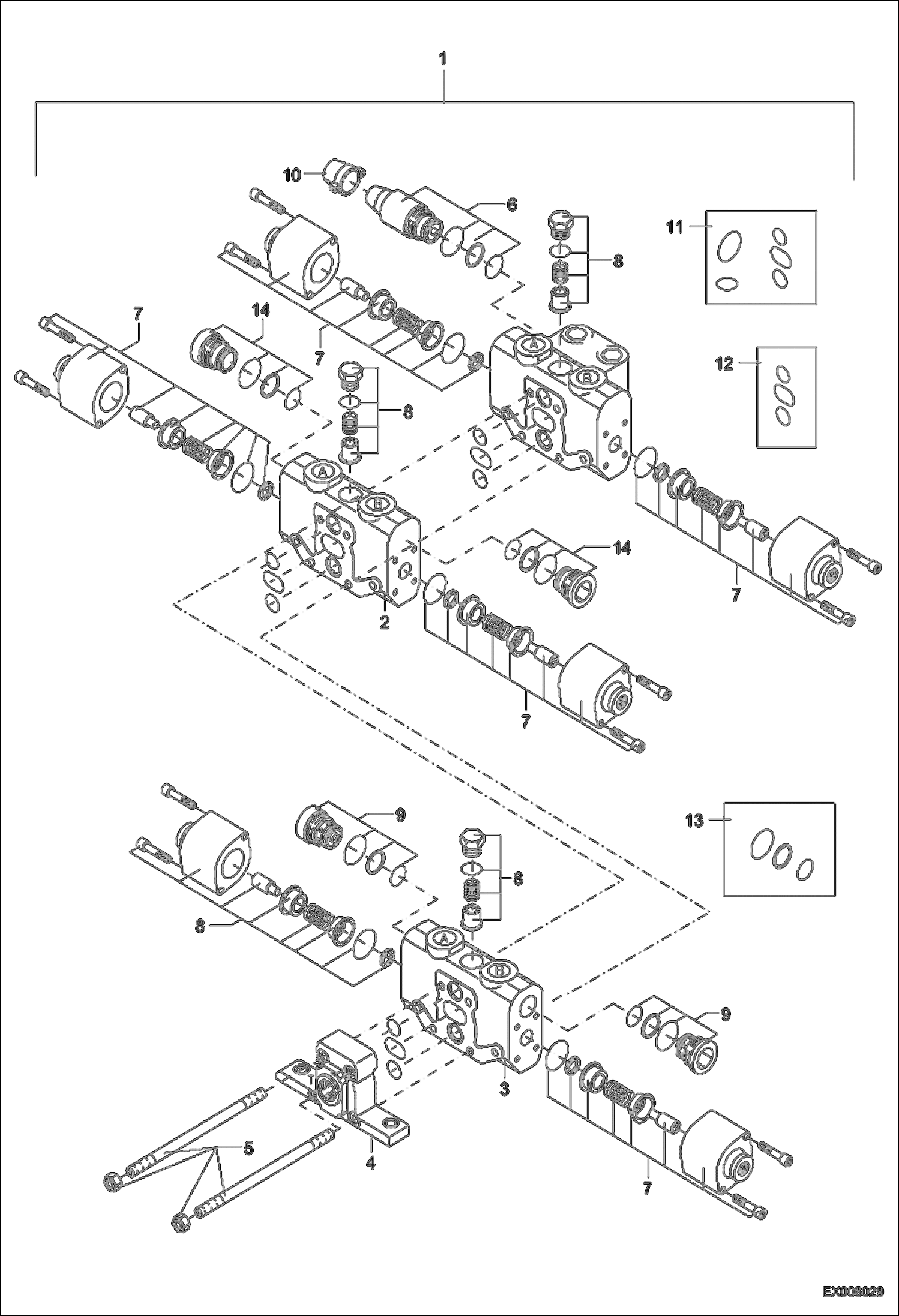

Схема запчастей Bobcat 442 - VALVE BANK (3SM12) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5606665063

VALVE, CONTROL W/Ref. 2-14 - Was 5606660408 - A

2

5606664178

DIRECTIONAL VALVE W/Ref. 8-9

3

5606664273

DIRECTIONAL VALVE W/Ref. 8-10

4

5606664180

OUTLET VALVE

5

5606664181

TIE ROD KIT

6

5606664224

PRESSURE RELIEF VALVE

7

5606664182

HYD. OPERATION KIT

8

5606656636

VALVE

9

5606656717

ANTI-CAV VALVE

10

5606664184

LOCKING COVER

11

5606656639

SET OF SEALS

12

5606656908

SEAL KIT

13

5606664223

SEAL KIT

14

5606656769

VALVE TAPER
