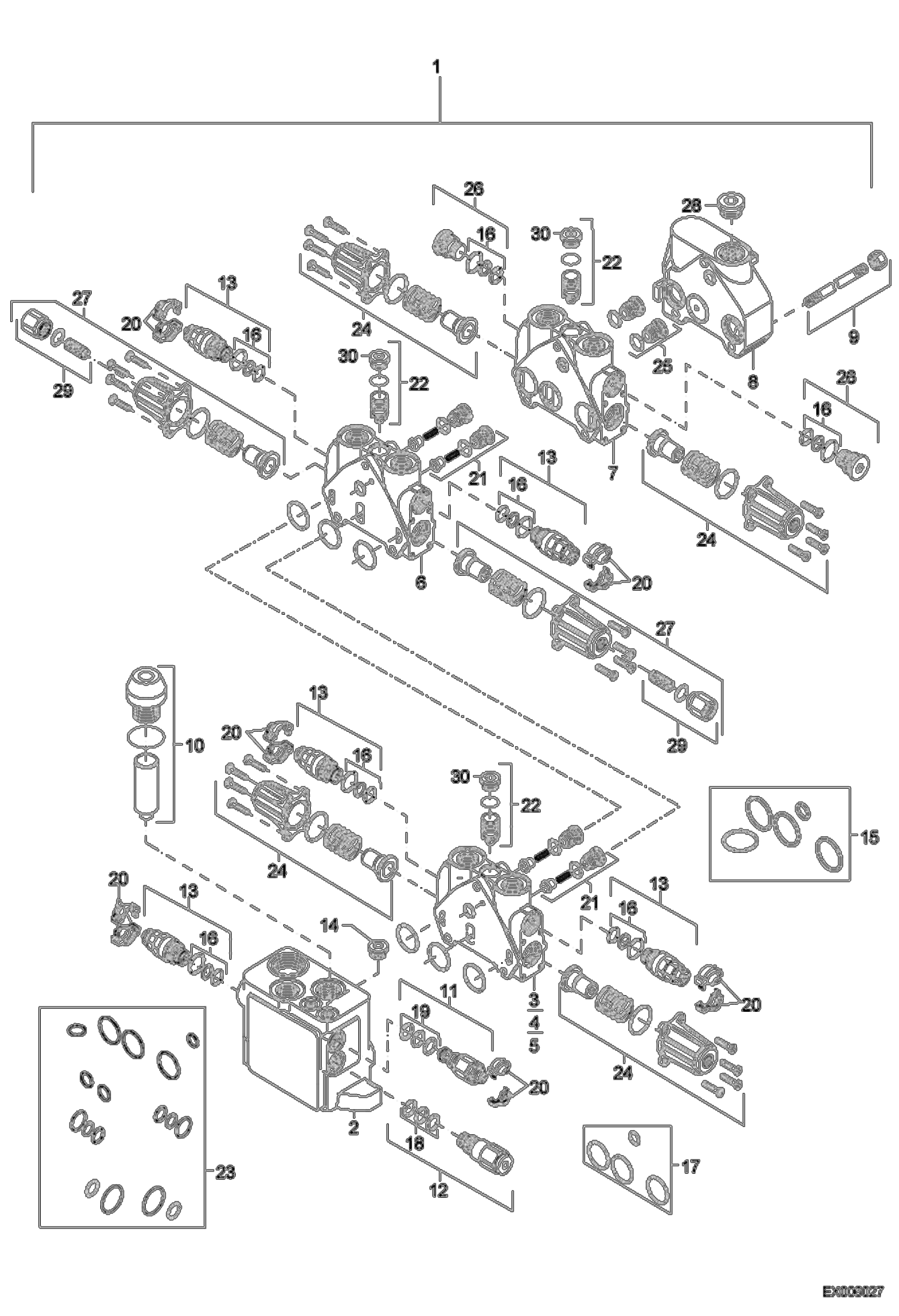

Запчасти Bobcat 442 VALVE BANK (6SX14) HYDRAULIC SYSTEM

1

5606660410

VALVE, CONTROL W/Ref. 2-9

2

5606664185

INLET ELEMENT W/Ref. 10-20

3

5606664186

DIRECTIONAL VALVE W/Ref. 13, 16-17 & 20-24

4

5606664187

DIRECTIONAL VALVE W/Ref. 13, 16-17 & 20-24

5

5606664188

DIRECTIONAL VALVE W/Ref. 13, 16-17 & 20-24

6

5606664189

DIRECTIONAL VALVE W/Ref. 13, 16, 20-23 & 27

7

5606664190

DIRECTIONAL VALVE W/Ref. 16-17, 20 & 22-26

8

5606664191

OUTLET ELEMENT W/Ref. 17 & 28

9

5606664192

TIE ROD KIT

10

5606664193

REGULATION KIT

11

5606664212

PRESS RELIEF VALVE

12

5606656829

CURRENT REGULATOR

13

5606664224

PRESSURE RELIEF VALVE

14

5606664383

PLUG

15

5606664196

SEAL KIT

16

5606664223

SEAL KIT

17

5606664198

SEAL KIT

18

5606664199

SEAL KIT

19

5606664336

SEAL KIT

20

5606664184

LOCKING COVER

21

5606664201

CHECK VALVE

22

5606664202

PRESS COMPENSATOR

23

5606664203

SEAL KIT

24

5606664204

HYD OPERATION KIT

25

5606664205

CHECK VALVE

26

5606656769

VALVE TAPER

27

5606664206

HYD OPERATION KIT

28

5606664207

PLUG

29

5606664368

STROKE LIMITER KIT Was 5606664386 - D

30

5606660803

PLUG
