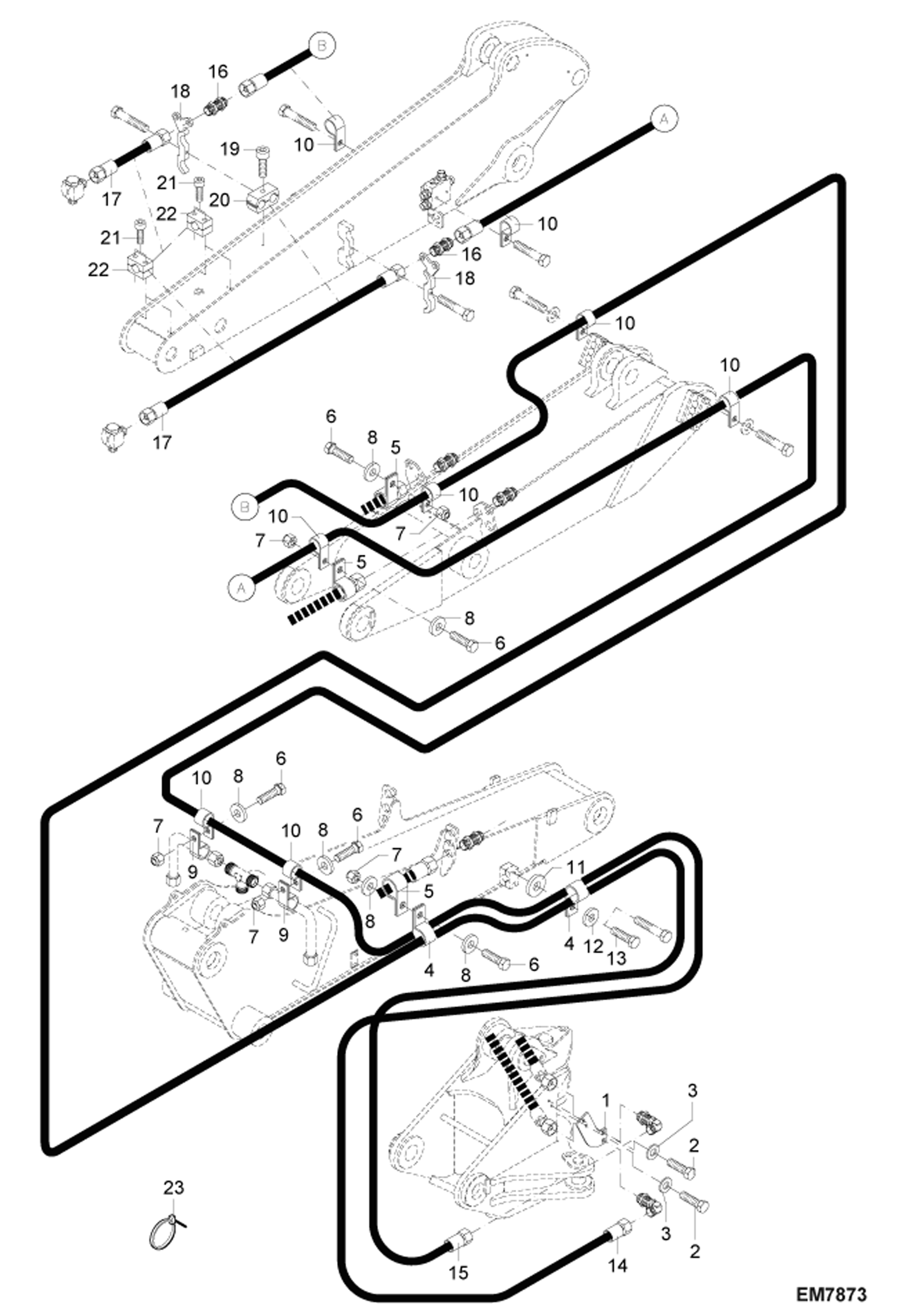

Запчасти Bobcat 442 HYDRAULIC QUICK MOUNT HITCH HS08 - PART 2 (Circular Boom) HYDRAULIC SYSTEM

1

0190303006

BRACKET

2

1008707018

BOLT

3

1290707018

WASHER

4

5000210400

HOSE CLIP

5

5000136700

HOSE CLIP

6

1008707318

BOLT

7

1212251011

NUT

8

1343707057

WASHER

9

5000095800

HOSE CLIP

10

5000095200

HOSE CLIP

11

1343707055

WASHER

12

1343707061

WASHER

13

1008707512

BOLT

14

4158540301

HOSE

15

4158580301

HOSE

16

1931060152

FITTING

17

4906135308

HOSE

18

0238337005

HOSE CLAMP

19

1045707618

BOLT

20

5660199766

HOSE CLIP

21

1045707713

PAN HEAD SCREW

22

5660199611

HOSE CLAMP

23

5653093560

BINDER
